£3,800.00 £4,560.00 (Inc. VAT)

Product Description

Testo 883 kit – testo 883 thermal imager with 2 lenses and accessories

  • Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 × 480 pixels)
  • Thermal sensitivity <0.04 °C
  • Full control: Manual focus and interchangeable lenses
  • Free analytical software for creating professional reports
  • Measurement site recognition and automatic image management
  • App for analysis and creating on-site measurement reports

Developed for service engineers, facility managers and building energy consultants: The testo 883 thermal imager is a reliable partner when carrying out your thermal measuring tasks. Its outstanding thermal image quality and useful features will enable you to save time and ensure perfect work results.

Product Description

The perfect kit for thermal imaging: The testo 883 thermal imager features the best image quality plus useful features for image management, contrast adjustment and documentation. Enjoy the benefits that the kit offers: Thanks to the 12° x 9° telephoto lens, spare battery and battery-charging station, you’ll be ready to start straight away and ideally equipped – even for carrying out measurements at greater distances and for long measuring applications.

Details on kit components

Testo 883 – Thermal imager (320 x 240 pixels, manual focus, app, laser)

  • Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 × 480 pixels)
  • Thermal sensitivity <0.04 °C

Spare rechargeable battery for thermal imager

  • Spare battery for extending the operating time
  • Can be used as a second battery

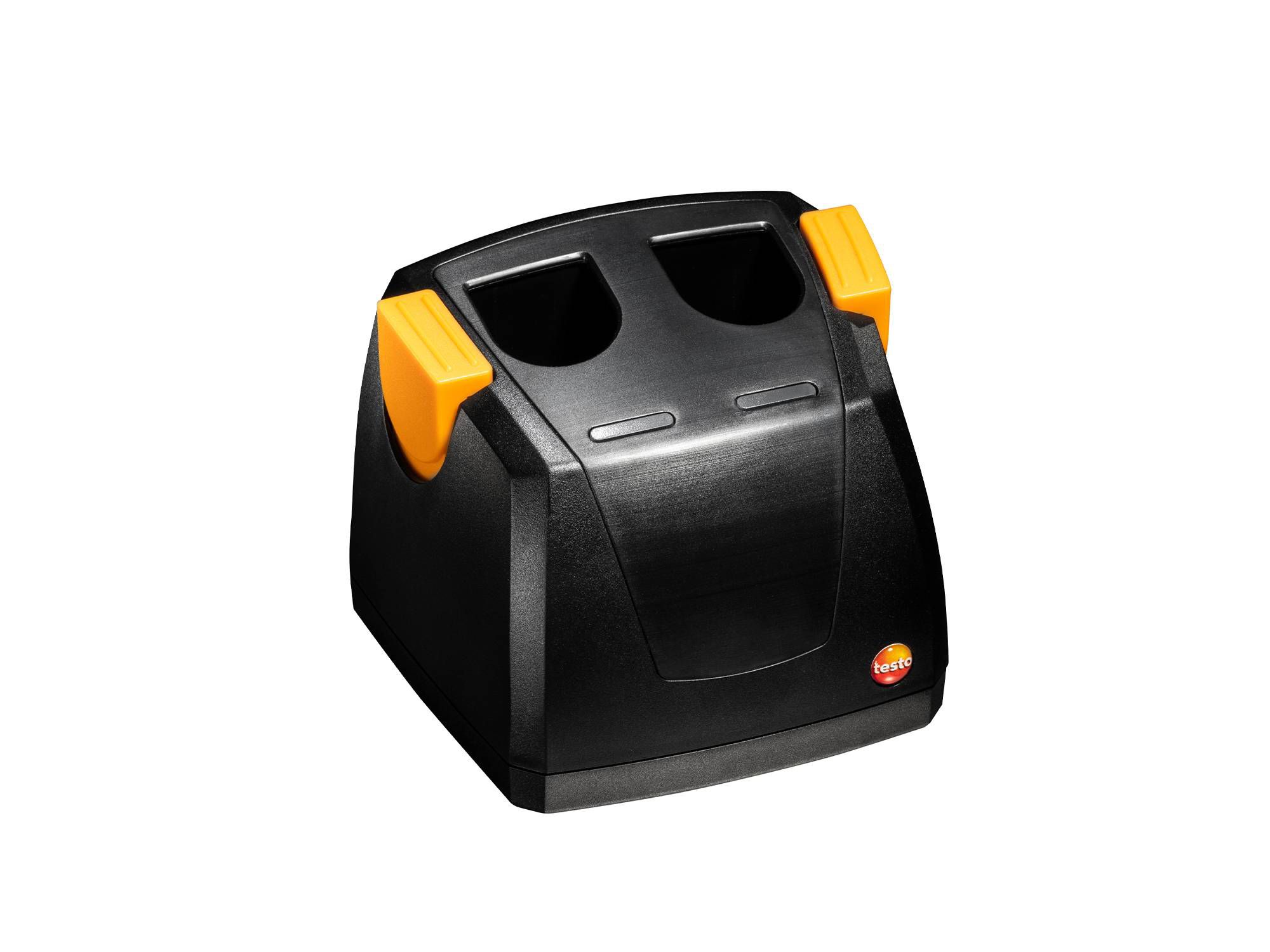

Battery-charging station, desktop charging station

  • To optimize the charging time
  • For external charging of two rechargeable batteries simultaneously

All the important information about the testo 883 thermal imager

  • IR resolution of 320 x 240 pixels (with SuperResolution 640 x 480 pixels), manual focus and a very good NETD of 40 mK all ensure the best image quality – so you can reliably detect thermal abnormalities in installations and buildings
  • testo SiteRecognition enables intelligent image management. Thermal images are automatically assigned to the correct measurement object based on the QR code at the measuring location – this eliminates the need for tedious, manual image assignment on the PC
  • testo IRSoft: Analyze thermal images comprehensively with the intuitive, professional PC software and create impressive reports within a short period of time
  • testo ScaleAssist: Automatic contrast adjustment for objectively comparable thermal images and easier detection of weak spots
  • testo Thermography App: With the app, your smartphone/tablet becomes a second display and a remote control for your thermal imager. You can quickly create, send or save reports on site
  • Interchangeable telephoto lens for distant objects and outdoor recording
  • Manual focus for sharp thermal images from a distance of 10 cm
  • Can be operated via touchscreen and joystick
  • Wireless transmission of readings from clamp meter or humidity probe directly into the thermal image via Bluetooth®

Further advantages for service engineers and facility managers

  • Easy to handle – clever management of images and data thanks to testo SiteRecognition: automatic assignment of thermal images to the correct measurement object using QR code, Data Matrix code, barcode or Testo 2D code, transfer of measuring locations from existing inventory lists, export of work results (in .xls format) enables further processing in third-party programs
  • Smart: Carry out quick analyses directly on site with the testo Thermography App and share thermal images with colleagues straight away
  • Networked: Wireless transmission of readings from the Testo clamp meter directly into the thermal image – this enables you to document the load status directly in the thermal image when checking switching cabinets, for example, and to reliably assess the condition of the system
  • Intuitive operation via touchscreen and joystick

Further advantages for building energy consultants

  • Produce a professional report quickly and easily: The report wizard guides you step by step through the report creation process using stored standard templates. Or you can use the report designer to create customized templates
  • Clever: The humidity mode visualizes the risk of mould at thermal weak spots directly in the thermal image using traffic light colours (red, yellow, green)
  • Smart: Thermography and live streaming – with the testo Thermography App, your customer can conveniently follow the measurement on a smartphone/tablet
  • Networked: Wireless transmission of readings from the optional humidity probe live in humidity mode – your values are always up to date, e.g. when you change rooms
  • Flexible: Interchangeable lenses and manual focus for sharper images and more accurate results from different distances

Delivery Scope

  • testo 883 thermal imager with standard lens 30° x 23°
  • Telephoto lens 12° x 9°
  • Robust case
  • Professional software IRSoft (free download)
  • USB-C cable
  • USB mains unit
  • Li-ion rechargeable battery
  • Spare rechargeable battery
  • Battery-charging station with USB cable
  • Carrying strap for the thermal imager
  • Bluetooth® headset (depending on the country)
  • Short instructions
  • Calibration protocol

Technical Data

Termovisores garantia
EU-/EG-guidelines RED: 2014/53/EU; EMC: 2014/30/EU; WEEE: 2012/19/EU; RoHS: 2011/65/EU + 2015/863; REACH: 1907/2006
General technical data
Product colour Black
Display type capacitive touch display
Display ligthing bright / normal / dark
Infrared image output
Infrared resolution 320 x 240 pixel
Thermal sensitivity ˂ 40 mK
Field of view 30° x 23° (Standard lens), 12° x 9° (Telephoto lens)
Minimum focus distance < 0.1 m (Standard lens)
Geometric resolution (IFOV) 1.7 mrad (standard lens), 0.7 mrad (telephoto lens)
SuperResolution (Pixel) 640 x 480 pixels
SuperResolution (IFOV) 1.1 mrad (Standard lens), 0.4 mrad (Telephoto lens)
Image refresh rate 27 Hz
Focus manual
Spectral range 7.5 to 14 µm

* Inside the EU, outside 9 Hz

Image output visual
Image size 5 MP
Minimum focus distance < 0.4 m
Image presentation
Display type 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels)
Digital zoom 2x; 4x
Display option IR image / real image
Colours iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
Measurement
Measuring range -30 to +650°C
Accuracy ±2 °C, ±2 % of m.v.; (greater value applies)
Emissivity 0.01 to 1
Reflected temperature manual
testo ε-Assist Included
Measuring function
Solar mode – manual Input of solar radiation value
Analysis function Up to 5 selectable individual measuring points, hot/cold spot detection, Delta T, area measurement (min/max on area), alarms, isotherm
Electrical mode – manual Input of current, voltage or power
IFOV warner Included
Humidity mode – manual Included
testo ScaleAssist Included
Humidity measurement with humidity measuring instrument Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)
Electrical measurement with clamp meter Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately)

* An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com)

Imager equipment
Full screen mode Included
JPEG storage Included
Video streaming via wireless LAN with testo Thermography App; via USB
Voice recording Included
Laser Laser marker
SiteRecognition Included
Standard lens 30° x 23°
Digital camera Included
Interface USB 2.0; USB-C
WLAN Connectivity Communication with the testo Thermography App/ wireless module BT/WLAN*
Bluetooth Headset for voice annotations, transfer of readings from testo 605i thermohygrometer, testo 770-3 clamp meter (optional)**

* An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com)
** excepting USA, China
Laser: excepting USA, China and Japan
Voice recording : An overview of radio authorizations in the different countries can be found in the download section of the respective product page (www.testo.com)

Imager storage
File format image .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
Storage device Internal Memory (2.8 GB)
Power supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Operating time ≥ 5 h
Charging options In instrument / charger (optional)
Mains operation yes
Ambient Condition
Air humidity 20 to 80 %RH non-condensing
Housing protection class IP54
Vibration 2G
Storage temperature -30 to +60 °C
Operating temperature -15 to +50 °C
Physical specification
Tripod mounting 1/4″ – 20UNC; carrying strap
Product-/housing material PC – ABS
Weight 824 g
Dimensions 171 x 95 x 236 mm
PC software
System requirements Windows® 10; Windows® 8; Windows® 7

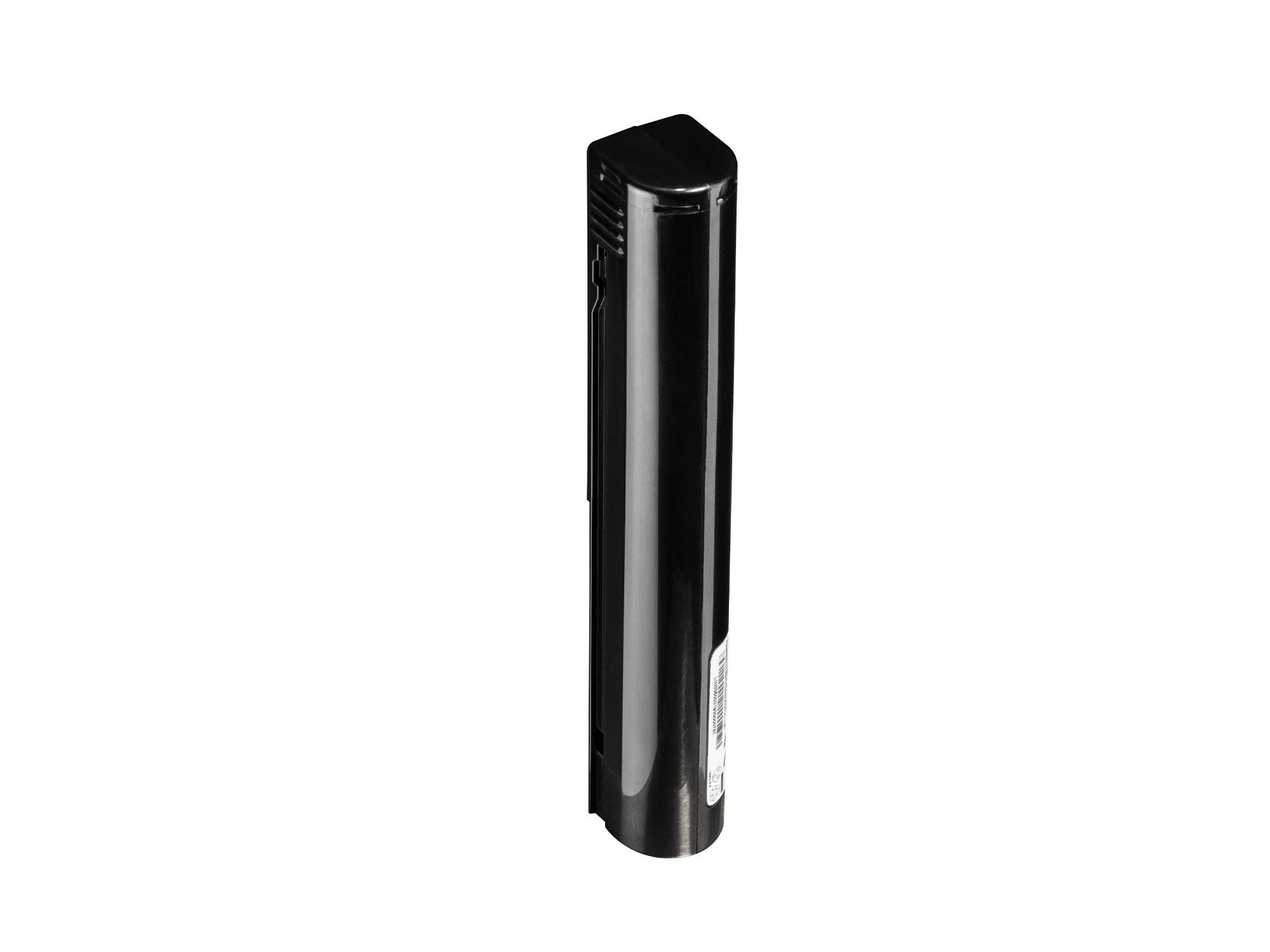

Spare rechargeable battery for thermal imager

General technical data
Weight 119 g
Dimensions 20 x 24 x 140 mm (LxWxH)
Product colour Black
General technical data
Weight 385 g
Dimensions 80 x 90 x 75 mm (LxWxH)
Cable length 1 m
Product colour black/orange
