£367.00 £440.40 (Inc. VAT)

Product Description

Testo 176 T4 – 4-channel Data Logger

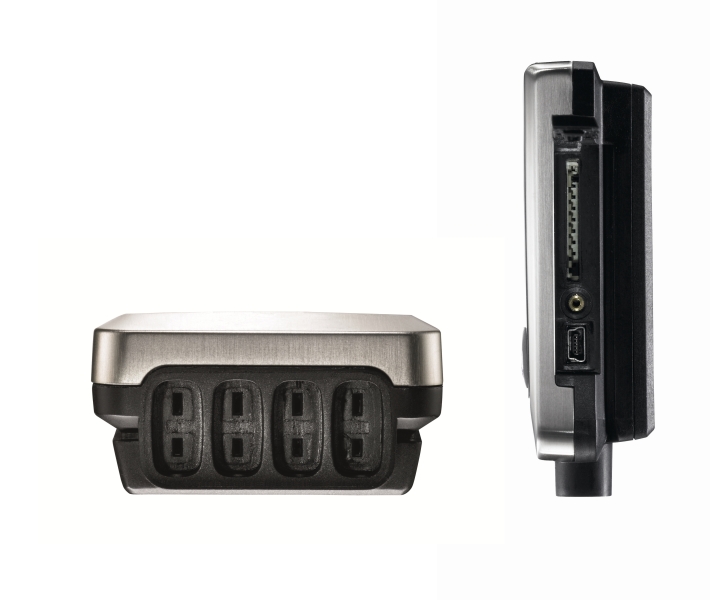

4-channel temperature data logger Plus external sensor connections (TC Type T, Type K and Type J) incl. wall holder, lock, batteries and calibration protocol.

Description

Large memory for 2 million measurement values – large, easily legible display up to 8 years battery life. Data logger testo 176 T4 incl. wallholder, lock, batteries, calibration certificate and instruction manual.

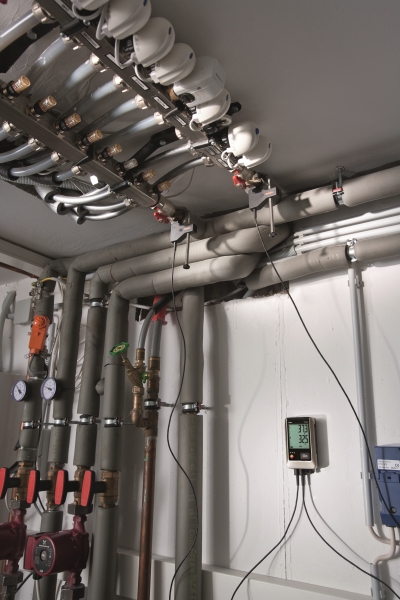

You can measure and document flow and return temperatures with the testo 176 T4 at 4 different places, for example at the distributor og an underfloor heating system, in order to test its functionality.
The requirements of a many different applications can be fulfilled using a broad range of connectable thermocouple probes (Type K, Type T, Type J).

Technical Data
Memory 2,000.000 readings
Storage temperature -40 to +85 °C
Operating temperature -20 to +70 °C
Dimensions 103 x 63 x 33 mm
Probe – Type T (Cu-CuNi)
Meas. range -50 to +400 °C
Accuracy ±1 % of mv (-200 to -100,1 °C)
±0.3 °C (-100 to +70 °C)
±0.5 % of mv (+70,1 to +1000 °C)
Resolution 0.1 °C
Probe – Type K
Meas. Range -195 to +1000 °C
Accuracy ±1 % of mv (-200 to -100,1 °C)
±0.3 °C (-100 to +70 °C)
±0.5 % of mv (+70,1 to +1000 °C)
Resolution 0.1 °C
Probe – Typ J (FeCuNi)
Meas. Range -100 to +750 °C
Accuracy ±1 % of mv (-200 to -100,1 °C)
±0.3 °C (-100 to +70 °C)
±0.5 % of mv (+70,1 to +1000 °C)
Resolution 0.1 °C
