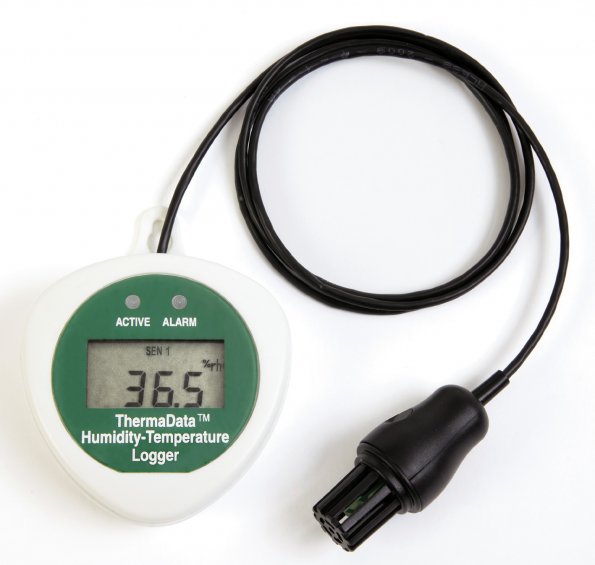

HTDF humidity temperature data logger
The HTDF humidity logger is a data logger that measures and records both relative humidity (% RH) and temperature over the range of -20 to 85°C and 0 to 100% RH.
At programmable intervals, the HTDF humidity logger will record simultaneously both temperature and humidity, recording up to a maximum of 16,000 readings (8,000 humidity and 8,000 temperature).
The ThermaData HTDF humidity logger has a built-in LCD display that shows both temperature and humidity levels and includes internal humidity and temperature sensors.
Each humidity logger incorporates a red and green LED, the flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that your customised pre-set alarms have been exceeded.
The ThermaData loggers are suitable for a diverse range of applications which include HVAC climate monitoring, QA control or storage areas and many more.
Please note: when ordering loggers it is necessary to order at least one ThermaData logger USB cradle
|Measurement Range||-20 to 85°C||0 to 100%rh|
|Accuracy||±0.5°C (0 to +45°C)
±1°C (-20 to +70°C)
±1.5°C (+70 to +85°C)
|±2%rh @ +25°C (10 to 90 %rh)|
|Sensor Type||silicone bandgap||capacitance polymer|
|Memory||2 X 8000 readings||2 x 8000 readings|
|Sample rate||0.1 to 255 minutes||0.1 to 255 minutes|
|Battery Type||3.6 volt half AA lithium||3.6 volt half AA lithium|
|Battery Life||2 years minimum||2 years minimum|
|Display||10mm LED||10mm LED|
|Display||toggles every 6 seconds / 2 LEDs||toggles every 6 seconds / 2 LEDs|
|Dimensions||76 x 23mm||76 x 23mm|
|Weight||80 grams||80 grams|
