£76.91 £92.29 (Inc. VAT)

Product Description

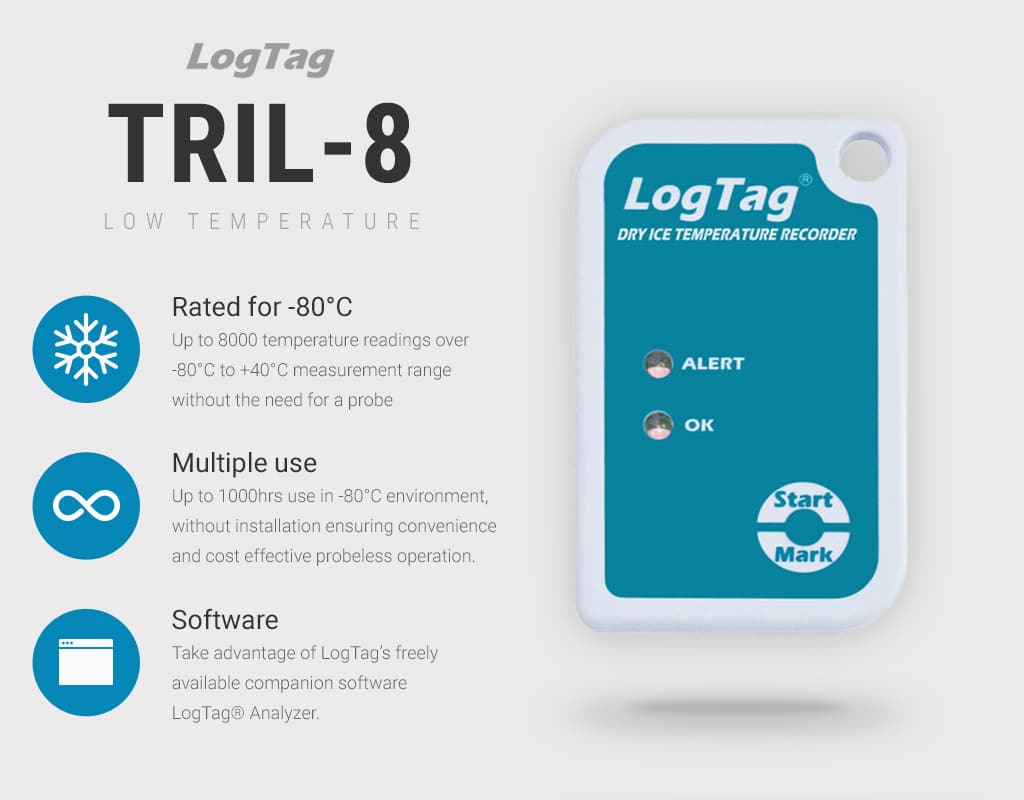

The LogTag TRIL-8 is an ultra low temperature data logger which is user configurable with an integral probe for freezer and dry ice temperature monitoring up to 8000 readings and a clear LED alarm.

Email for calibration options and if you your data loggers shipped installed with custom configuration profile.

The TRIL-8 ultra low temperature data logger comes with an integral temperature probe, designed for use in ultra low temperature freezers and in the repeated distribution of time temperature sensitive products in dry ice at -80°C.

Simply configure and reconfigure the TRIL-8 temperature data logger using the USB interface cradle and free issued LogTag analyser data logger software and deploy the data logger directly into the cold chain shipping container or assigned location(s) within the ultra low temperature freezer.

When temperature monitoring is finished, a clear indication will be presented via the green and red flashing LED and a full audit can be extracted, verified and automatically distributed to assigned personnel. Rapid configuration, retrieval of collected data and analysis is performed using the free issued LogTag analyser software in conjunction with a USB interface cradle.

Note: Configuration and data retrieval requires a USB interface cradle.

The LogTag® TRIL-8 Dry Ice €œProbe-less€ Temperature Recorder operates, measures and stores up to 8000 temperature readings in temperature environments ranging from -80°C to +40°C (-112°F to +104°F).

The TRIL-8 is a multi-trip recorder, intended for use in transit monitoring of articles stored in packaging incorporating dry ice cooling agents.

A single trip version, the SRIL-8, is also available.

Using the LogTag® Interface and the freely available companion software LogTag® Analyzer, the LogTag® TRIL-8 Dry Ice Temperature Recorder is easily configured for recording conditions including delayed start, sampling interval, number of readings and configuration of conditions to activate the ALERT indicator.

The red ALERT indicator provides an immediate indication, without access to a PC, if any readings are outside the limits specified at the time the unit was configured. The
green OK indicator provides immediate visual confirmation, without access to a PC that the unit is operating.

Readings are downloaded using LogTag® Analyzer which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other
applications such as MS Excel.


  • Records temperature from +40°C to as low as -80°C
  • A real time clock provides date/time stamps for each temperature reading.
  • Push-to-start button with optional delay or a specific time & date.
  • Comprehensive customisation options including alert settings, sample interval and trip
  • Robust and durable polycarbonate case with lug for secure mounting.
  • Up to 8,000 recordings – enough for the longest trip.
  • In-transit inspections can be recorded at the push of a button.
  • Industry best download time – less than 5 seconds for fully memory.
