£190.00 £228.00 (Inc. VAT)

Product Description

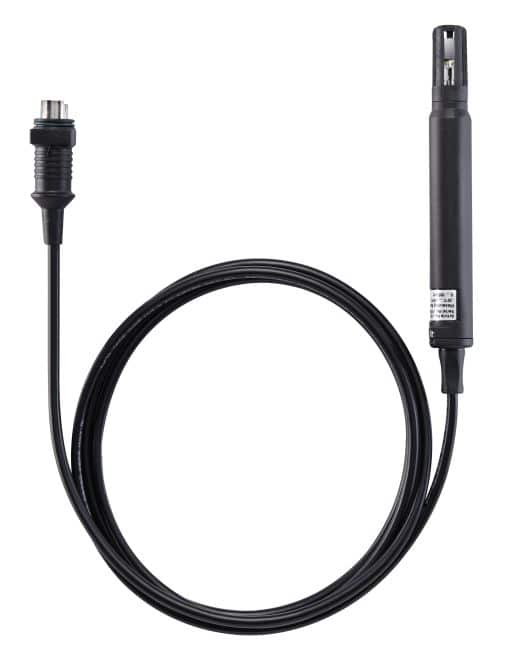

Humidity/ temperature probe with cable

  • Measures air temperature and humidity quickly and reliably
  • Flexible application at the measurement site thanks to cable connection to the data logger
  • Intelligent calibration concept
  • Measurement range: humidity 0 to 100% relative humidity; temperature -30 to +70 °C

Measure relative humidity and temperature extremely precisely: with the digital humidity and temperature probe with a

cable length of 1.3 m.

Product Description

Overview

The humidity/temperature probe is suitable for measuring temperature and relative humidity in storerooms, cold storage

areas and work rooms or in air conditioning/ventilation ducts

The humidity/temperature probe is connected to the instrument/data logger by simply plugging in.

The humidity sensor for measuring relative humidity is long-term stable, condensation-resistant and traceable to

international humidity standards, such as ILAC, PTB and NIST. Thus, even after years of use you can still count on

measurement results that are reliable and correct.

The applications at a glance

Use the high-precision humidity and temperature probe (with an appropriate measuring instrument) for the following

applications:

  • Measuring the relative humidity and temperature in storage, refrigerated and work areas or in air

    conditioning/ventilation ducts

  • Assessing thermal comfort
  • Ensuring the process climate in cleanrooms
  • Checking the correct ambient conditions in production facilities to comply with quality standards

Always reliable measurement results

Thanks to the good air flow, the humidity sensor for measuring relative humidity has a considerably faster response time in

comparison to a humidity sensor installed in a housing. Thanks to its long-term stability, you can still count on measurement

results that are reliable and correct, even after years of use.

Intelligent calibration concept

The humidity/temperature probe offers the highest digital measurement certainty. The digital probe allows readings to be

processed directly in the probe. This technology eliminates instrument measurement uncertainty. The probe can be sent in

for calibration on its own (without the data logger).

Delivery Scope

1 x tumidity/temperature probe with cable, cable length 1.3 m 0572 2155.




Technical Data
Temperature – NTC
Measuring range -30 to +70 °C
Accuracy ±0.5 °C
Humidity – Capacitive
Measuring range 0 to +100 %RH
Accuracy ±2 %RH at +25 °C (+2 to +98 %RH)

±0.03 %RH/K (k=1)

long-term stability: ±1 %RH / year

*The sensor accuracy corresponds to the system accuracy.

General technical data
Length probe shaft tip 12 mm
