Product Description

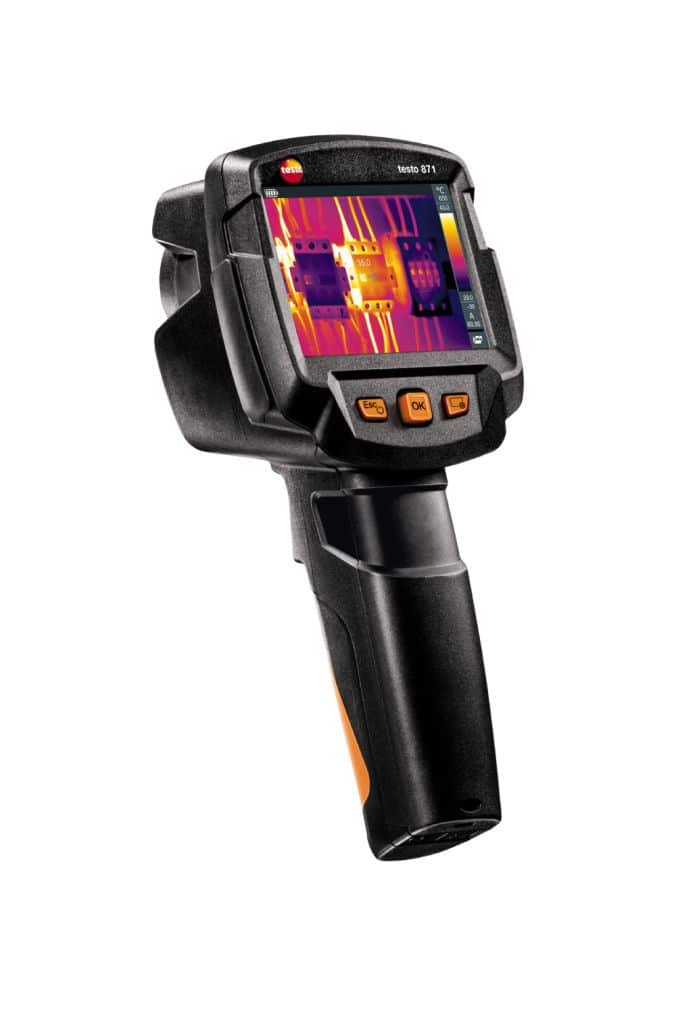

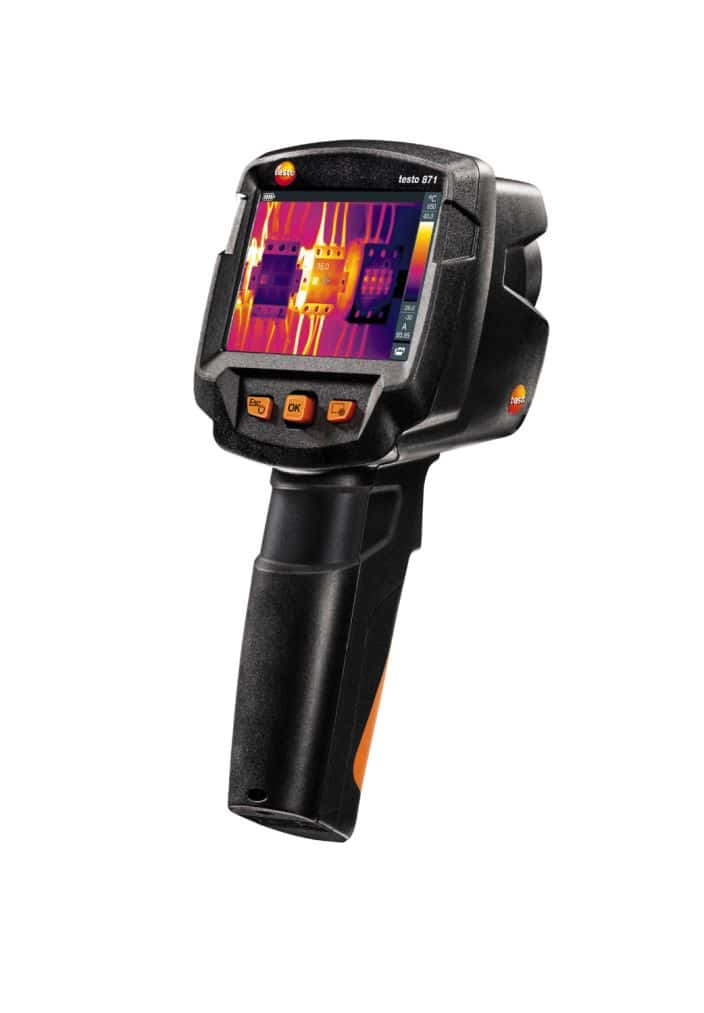

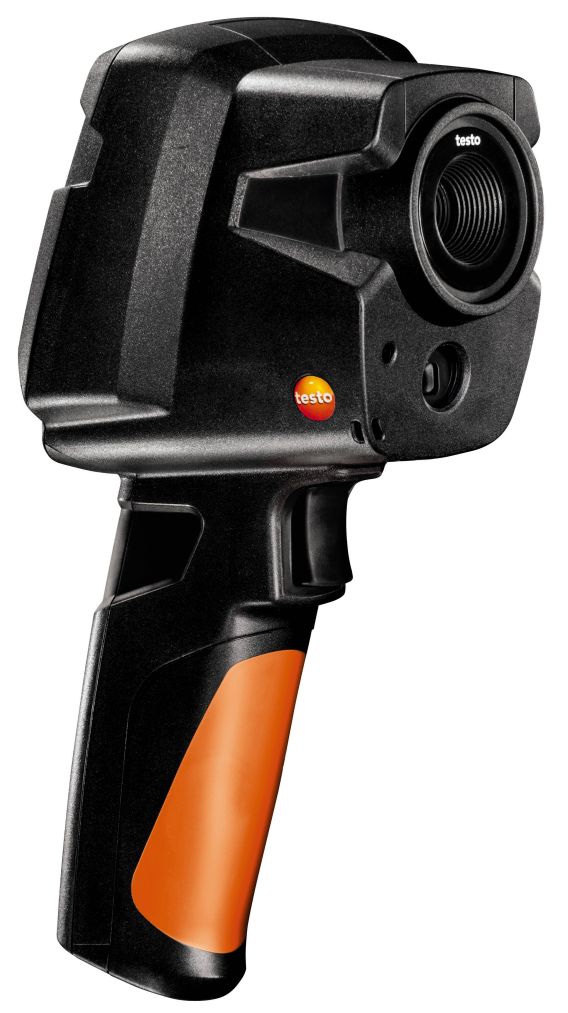

testo 871 – Thermal imager (240 x 180 pixels, App)

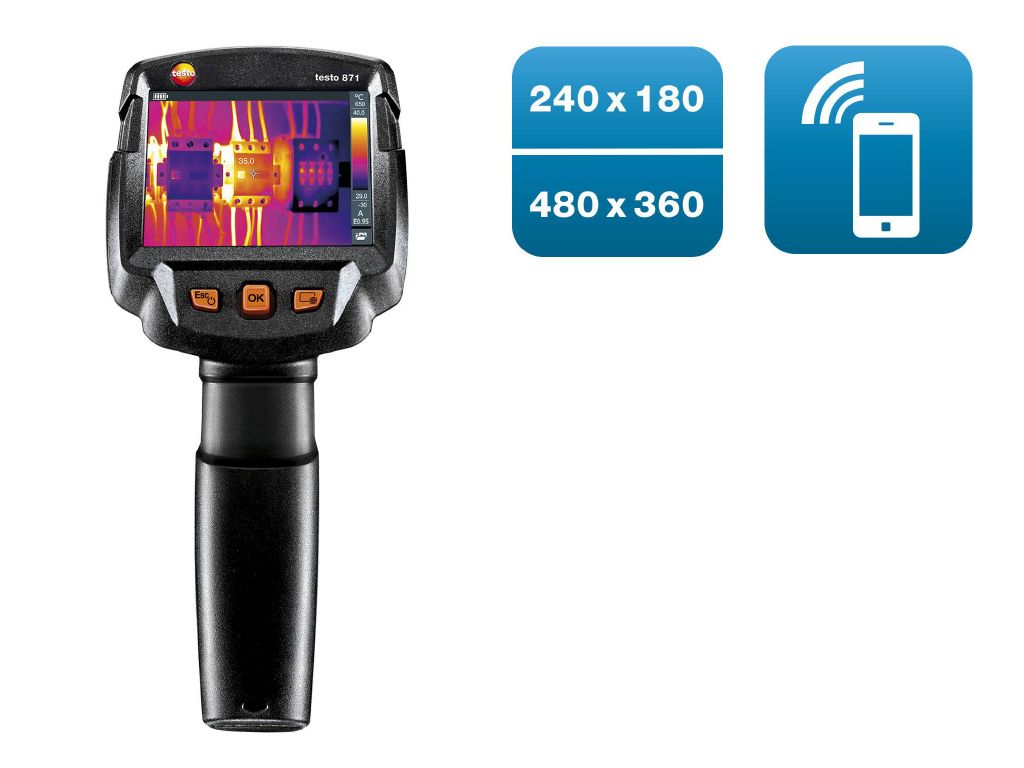

  • Very good image quality: IR resolution of 240 x 180 pixels, via integrated testo SuperResolution Technology 480 x 360 pixels
  • Wireless networking: wireless transmission of readings from the testo 770-3 clamp meter and the testo 605i thermohygrometer (both available separately)
  • Smart: the free testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.
  • Large temperature measuring range from -30°C to +650°C

The testo 871 thermal imager combines high infrared resolution with professional measuring performance and easy handling. Its high-quality pixel detector, an integrated digital camera and, last but not least, the innovative functions are the features that impress. The testo Thermography App enables the testo 871 to offer smart thermography to meet professional requirements in industry and trade. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Details:

Product Description

We developed the testo 871 thermal imager together with our experienced professionals to enable you to work quickly and easily with professional thermal imaging technology. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo É›-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (É›) and reflected temperature (RTC) for building thermography, but also of colour scale.

The testo 871 thermal imager€“ smart and networked

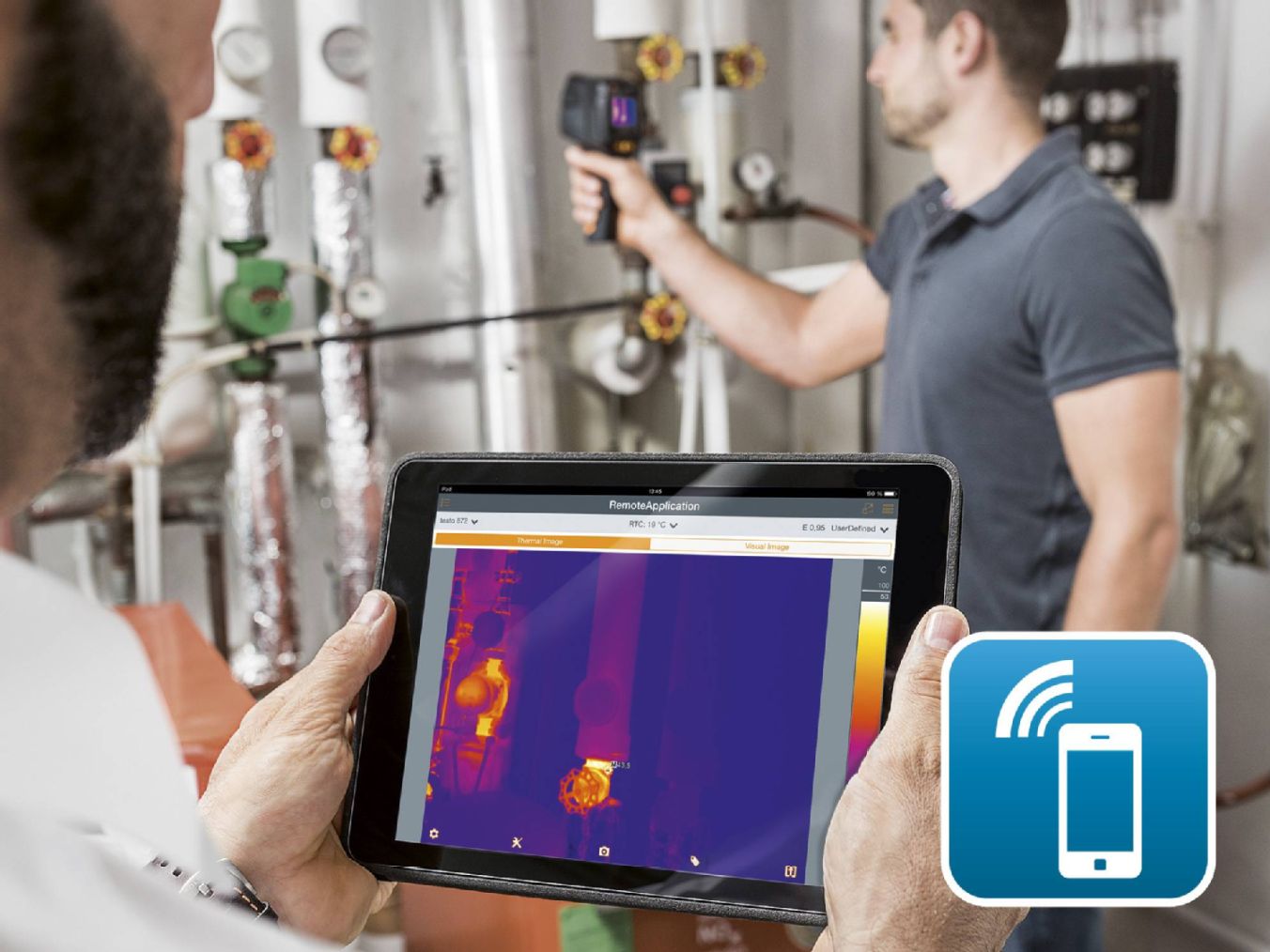

The testo 871 thermal imager communicates wirelessly via WLAN with your mobile terminal devices. The testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control.

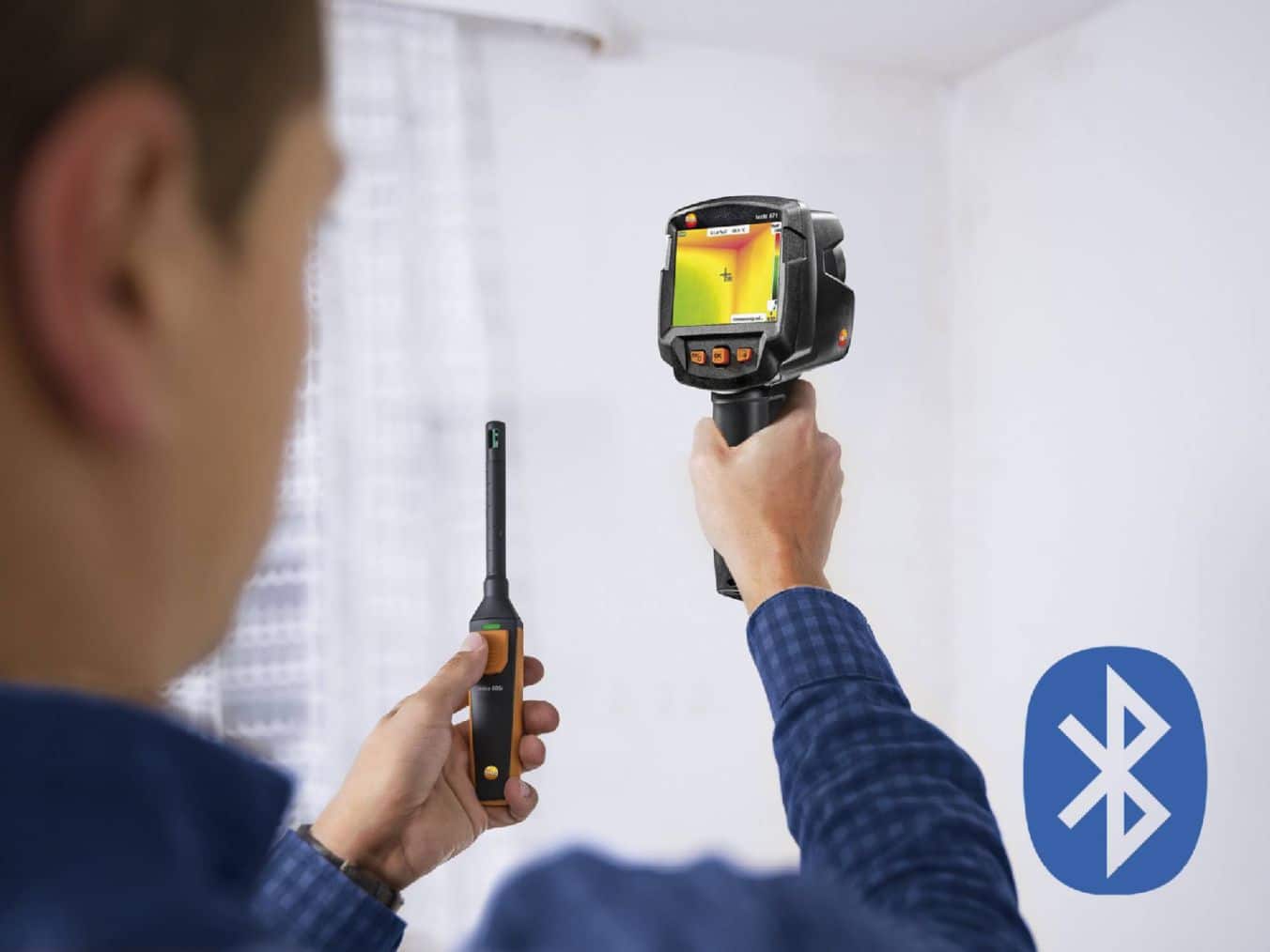

The testo 871 delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and the testo 605i thermohygrometer. Both are available separately €“ simply order them straight away along with your testo 871. The measurement results of both measuring instruments can easily be transmitted via Bluetooth. The additional output, current and voltage values of the testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the testo 605i and easily detect locations at risk of developing mould using the special humidity palette in the thermal imager via the traffic light principle.

Areas of application of the testo 871 thermal imager

Detect leaks, pinpoint thermal bridges, discover structural defects, identify overheated connections or assess mould damage. The testo 871 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.

Technical highlights of the testo 871 thermal imager

Really simple operation with impressive professional thermal imaging technology: the testo 871 thermal imager has the following impressive features:

  • Very good image quality due to high resolution: 43,200 temperature measuring points for precise thermography. Infrared resolution of 240 x 180 pixels €“ extendible to 480 x 360 pixels via integrated SuperResolution Technology
  • Detecting temperature differences from 0.09°C
  • The testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control
  • Wireless communication thanks to Bluetooth €“ this means you can also wirelessly integrate the readings of the compatible testo 770-3 clamp meter and testo 605i thermohygrometer
  • Built-in digital camera generates a real image in parallel to the thermal image
  • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
  • The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
  • The testo É›-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
  • The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image €“ you therefore avoid measurement errors because the camera shows you exactly what you can measure
  • Pro software for image evaluation on the PC
  • You can choose to save thermal images as JPEGs

Delivery Scope

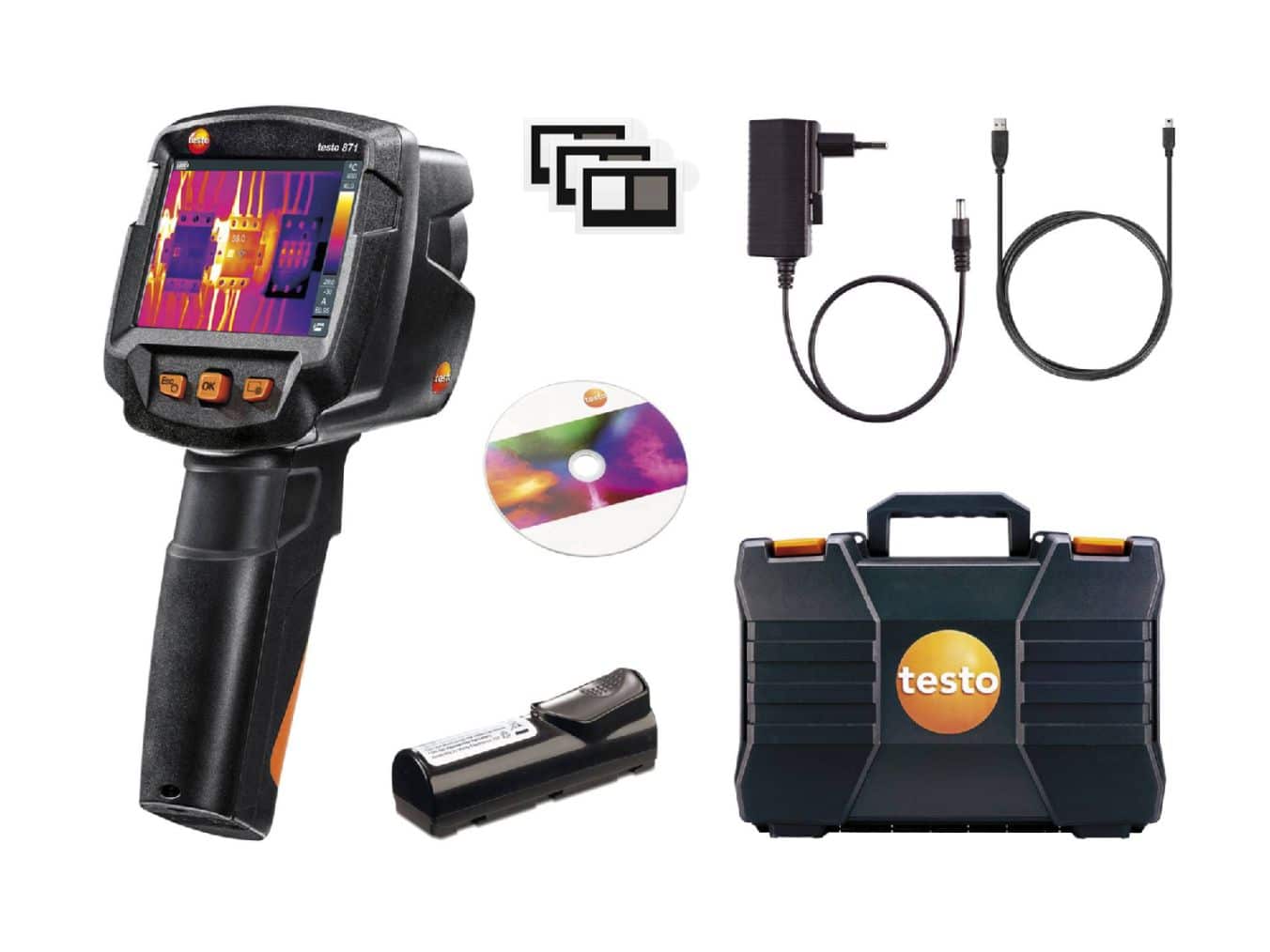

testo 871 thermal imager with radio module for Bluetooth/WLAN, USB cable, mains unit, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.

Preventive maintenance :

Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.

  • Fast detection of critical thermal status (so-called HotSpots) during continuing operation
  • Avoid expensive damage, downtimes and fire risks on plants and machines

Electrical maintenance

  • Test switching cabinets, electrical conditions, photovoltaic plants
  • Evaluate heat status in low, medium and high voltage plants

Mechanical maintenance

  • Identify wear on machines
  • Test motors, bearings, shafts

Detecting structural defects and ensuring construction quality

  • Detect potential building defects, prove quality and the implementation of construction measures without contact €“ with the help of thermal images
  • Test air-tightness of windows and doors
  • Locate insulation errors and cold bridges in a building shell
  • Detect and visualize mould-risk areas

Easy checking of heating systems and installations

  • test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
  • Localization of the course of heating loops in underfloor heating systems
  • Testo radiators for silting
  • Measure flow and return temperatures

Localize pipe ruptures

  • Reliably determine pipe ruptures with the help of a thermal imager €“ without unnecessarily opening walls and floors
  • Precise localization of leakages in underfloor heating and other inaccessible pipe systems

Locating leaks in flat roofs

  • Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation




Additional Information
Infrared image output
Focus Fixed focus
Infrared resolution 240 x 180 pixels
Image refresh rate 9 Hz
SuperResolution (IFOV) 1.6 mrad
SuperResolution (pixels) 480 x 360 pixels
Geometric resolution (IFOV) 2.6 mrad
Minimum focus distance <0.5 m
Field of view 35° x 26°
Thermal sensitivity 100 mK
Spectral range 7.5 to 14 µm
Image output visual
Image size at least 3.1 MP
Minimum focus distance 0.5 m
Image presentation
Display option IR image / real image
Colours 4 (iron, rainbow, cold-hot, grey)
Display type 8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels)
Measurement
Measuring range -30 to +100° C; 0 to +650° C
Accuracy ±2 °C, ±2 % of mv
Emissivity 0.01 to 1
Reflected temperature manual
testo ε-Assist Included
Measuring function
Solar mode €“ manual Input of solar radiation value
Humidity measurement with humidity measuring instrument Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey
Analysis function Mean point measurement, hot/cold-spot recognition, Delta T
testo ScaleAssist Included
IFOV warner Included
Humidity mode – manual Included
Electrical mode – manual Input of current, voltage or power
Electrical measurement with clamp meter Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey
Imager equipment
Full screen mode Included
Digital camera Included
JPEG storage Included
Video streaming via wireless LAN with testo Thermography App
Standard lens 35° x 26°
Interface USB 2.0 Micro B
WLAN Connectivity Communication with the testo Thermography App wireless module WLAN (EU, EFTA, USA, AUS, CDN, TR)
Bluetooth Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey
Imager storage
File format image .bmt; .jpg; export option in .bmp; .jpg; .png; .xls; .csv
Storage device Internal Memory (2.8 GB)
Power supply
Battery type Fast-charging, Li-ion battery can be changed on-site
Operating time 4 h
Mains operation yes
Ambient Condition
Housing protection class IP54
Vibration 2G
Air humidity 20 to 80 %RH non-condensing
Storage temperature -30 to +60 °C
Operating temperature -15 to +50 °C
Physical specification
Product-/housing material PC – ABS
Weight 510 g
Dimensions 219 x 96 x 95 mm
PC software
System requirements Windows® 10; Windows® 8; Windows® 7
Standards, tests, warrenty
EU-/EG-guidelines EMC: 2014/30/EU
General technical data
Product colour Black
Display ligthing bright / normal / dark
