£279.00 £334.80 (Inc. VAT)

Product Description

Testo 550s – digital manifold

  • All results at a glance thanks to the large graphic display
  • Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
  • Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth®
  • In the kit: testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x clamp temperature probes (fixed cable, NTC), case

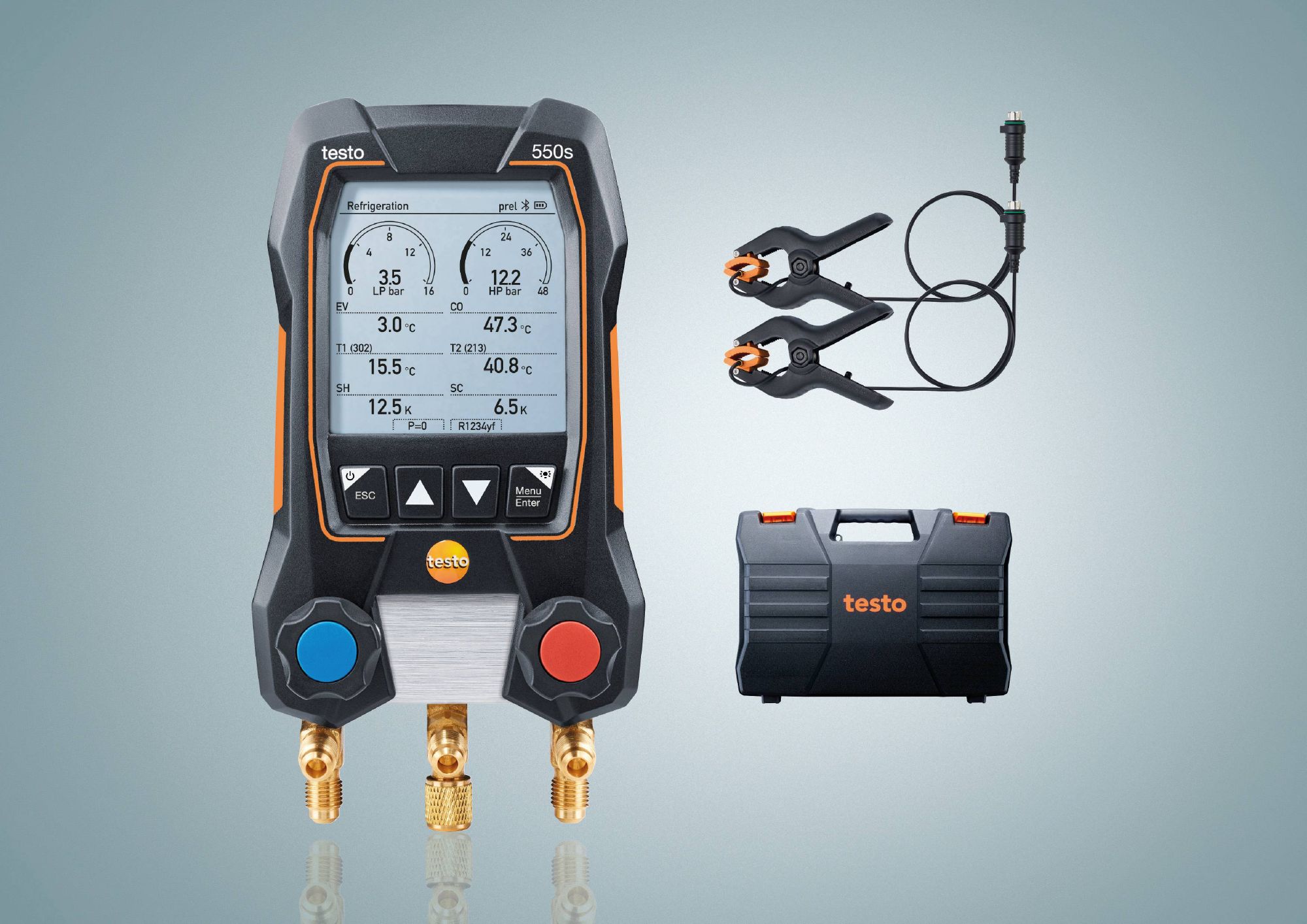

Testo 550s Basic Kit – Smart digital manifold with fixed cable clamp temperature probes

With this kit, you’ll be ready to start your measurements in the commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps straight away: You will get the testo 550s smart digital manifold with Bluetooth and 2-way valve block, two fixed cable clamp temperature probes (NTC) and a robust transport case. Additional Bluetooth probes, e.g. for wireless measurements of temperature and vacuum, are available separately.

Testo 550s – Smart digital manifold with Bluetooth and 2-way valve block

  • All results at a glance thanks to the large graphic display
  • Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class

Transport case – for digital manifolds

  • Robust design for daily use
  • Stow away all kit components, including hoses, quickly and safely

Testo Smart App

  • All in one: One app for all Bluetooth®-enabled Testo measuring instruments for air conditioning/refrigeration systems and heat pumps
  • Quick and easy: Measurement menus for numerous applications provide optimum support in configuring and carrying out measurements, e.g. superheating/subcooling

Technical Data

General technical data
Weight 826 g
Dimensions 210 x 121 x 60 mm (LxWxH)
Operating temperature -20 to +50 °C
Protection class IP54
System requirements requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour Black
Auto-off 10 min*
Battery type 4 x type AA batteries
Battery life 250 h with no illumination, no Bluetooth®; 100 h with illumination and Bluetooth®
Data transfer Bluetooth®
Radio range 150 m
Refrigerants in instrument R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update via App R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature -20 to +60 °C

* when not connected via Bluetooth

Temperature
Measuring range -50 to +150 °C
Accuracy ±0.5 °C
Resolution 0.1 °C
Probe connection 2 x plug-in (NTC)
Pressure measurement
Measuring range -1 to 60 bar
Accuracy ±0.5 % fs
Resolution 0.01 bar
Probe connection 3 x 7/16″ – UNF
Overload rel. (high pressure) 65 bar

Testo Smart App

General technical data
System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
