£249.00 £298.80 (Inc. VAT)

Product Description

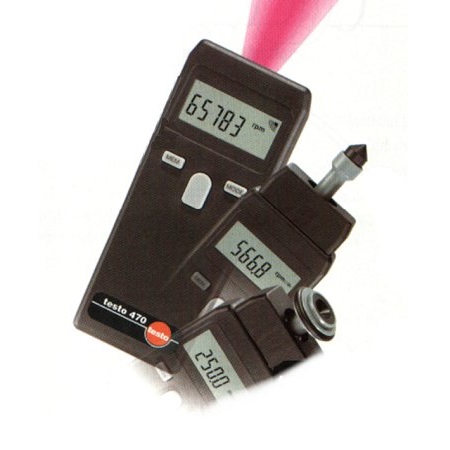

Testo 470 – RPM measuring instrument

inc, Instrument with SoftCase, in transport case, incl. adapter, probe tip, surface speed disc, reflectors, batteries and calibration protocol

  • Easy one-hand operation
  • Measurement of rpm, speeds and lengths
  • Low Batt” warning
  • Robust design with SoftCase (protective case)
  • Storage of mean/max./min. values, last reading
  • Measurement distance up to 600 mm (optical measurement)

Description

Testo 470, the ideal combination of optical and mechanical rpm measurement.
An optical measurement becomes a mechanical measurement by simply attaching an adapter for probe tip or surface speed disc.

Technical Data
Display 5-figure LCD display, 1-line
Storage temperature -20 to +70 °C
Operating temperature 0 to +50 °C
Battery type 2 batteries Type AA
Battery life 40 h
Weight 190 g
Dimensions 175 x 60 x 28 mm
Probe – RPM ( optical )
Meas. Range +1 to +99999 rpm
Resolution 0.01 rpm (+1 to +99.99 rpm)
0.1 rpm (+100 to +999.9 rpm)
1 rpm (+1000 to +99999 rpm)
Probe – RPM (mechanical)
Meas. Range +0.1 to +19.999 rpmM
Accuracy ±0.02% of mv
