Product Description

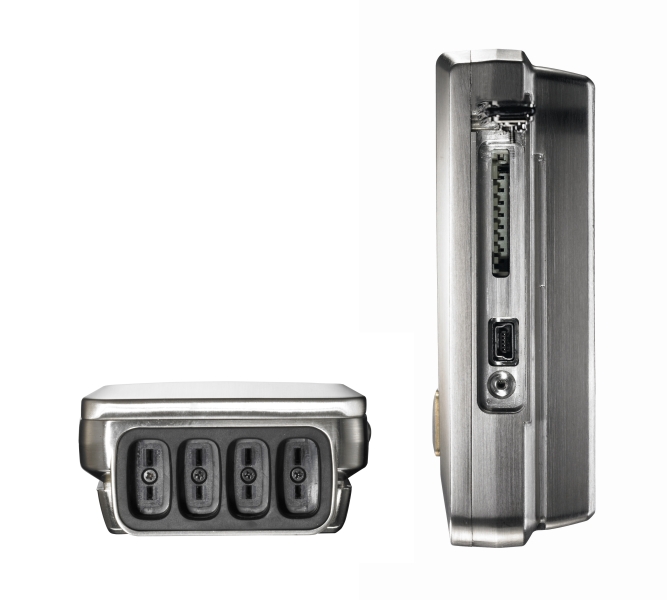

Testo 176 T3 – 4-channel Data Logger

4-channel temperature Data Logger in metal housing with external sensor connection (TC Type T, Type K and Type J) incl. wall holder, lock, batteries and calibration protocol

Description

It is sometimes important to test whether the prescribed temperature limit values in a process are being adhered to.

The testo 176 T3 in its robust metal housing is the right data logger for parallel measurement and recording of temperature values at 4 different sites in industrial processes.

The requirements of a many different applications can be fulfilled using a broad range of connectable thermocouple probes (Type K, Type T, Type J).

  • Wareproof according to IP65
  • Integrated USB and SD card interface for reading out data
  • Large memory for 2 million measurement values – robust metal housing (without display)
  • Simultaneous temperature measurement at up to four measurement sites thanks to different connectable thermocouple probes for the most widely differing applications
  • Robust metal housing protects from mechanical influences such as impact
    Technical Data
    Memory 2,000.000 readings
    Storage temperature -40 to +85 °C
    Operating temperature -20 to +70 °C
    Dimensions 103 x 63 x 33 mm
    Probe – Type T (Cu-CuNi)
    Meas. range -50 to +400 °C
    Accuracy ±1 % of mv (-200 to -100,1 °C)
    ±0.3 °C (-100 to +70 °C)
    ±0.5 % of mv (+70,1 to +1000 °C)
    Resolution 0.1 °C
    Probe – Type K
    Meas. Range -195 to +1000 °C
    Accuracy ±1 % of mv (-200 to -100,1 °C)
    ±0.3 °C (-100 to +70 °C)
    ±0.5 % of mv (+70,1 to +1000 °C)
    Resolution 0.1 °C
    Probe – Typ J (FeCuNi)
    Meas. Range -100 to +750 °C
    Accuracy ±1 % of mv (-200 to -100,1 °C)
    ±0.3 °C (-100 to +70 °C)
    ±0.5 % of mv (+70,1 to +1000 °C)
    Resolution 0.1 °C
