Testo 174 T Starter Kit

Loading...

£185.00 £222.00 (Inc. VAT)

Product Description

  • Measurement data memory for up to 16,000 readings
  • Temperature measuring range from -30 °C to +70 °C
  • Automatic measuring data backup when the battery runs out or is changed
  • Convenient Excel export functions
  • Data analysis: three different software versions available, basic software free to download
  • Displays violations of limit values



Click Here For the 174T Data Sheet –

Product Description

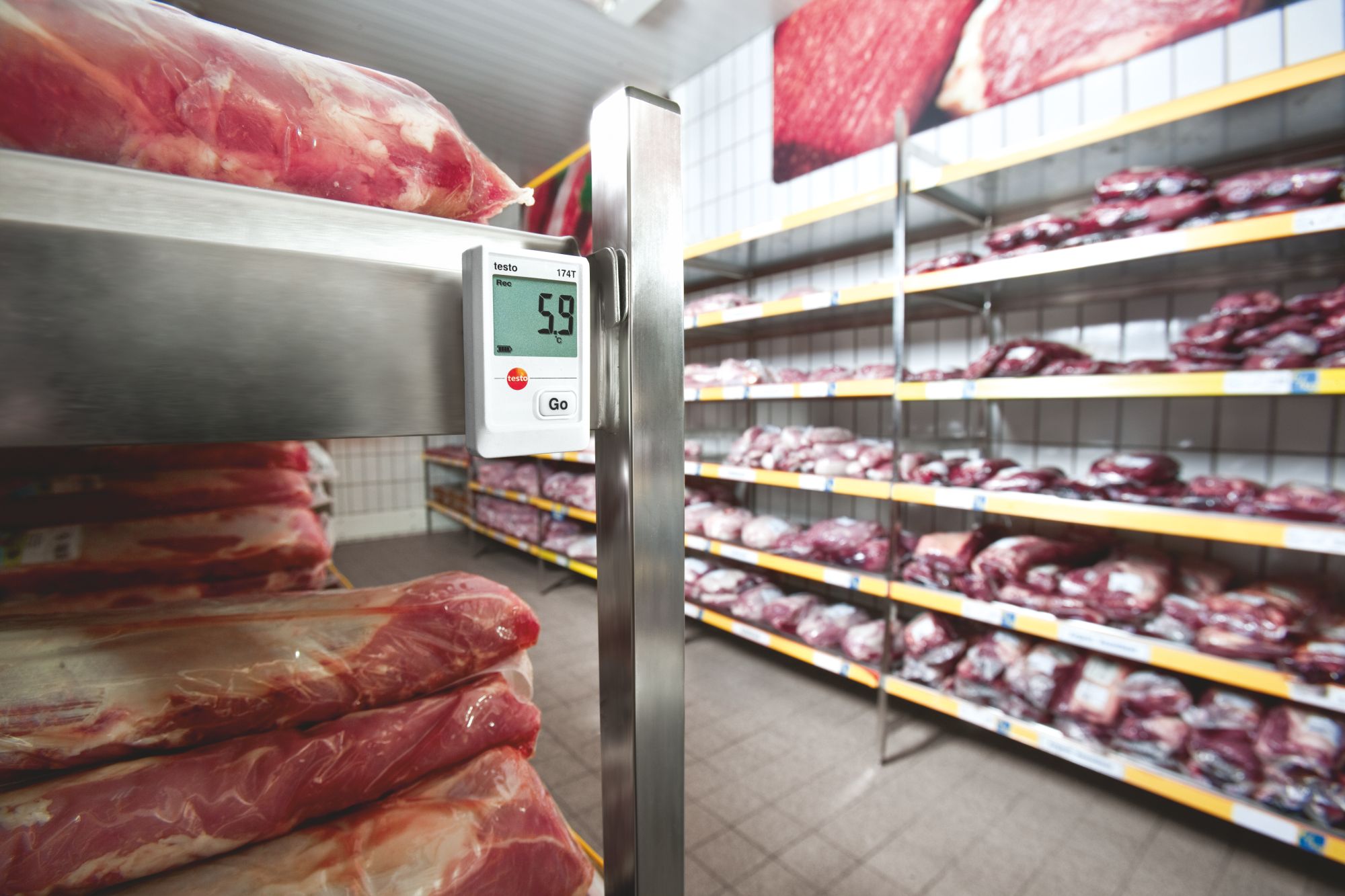

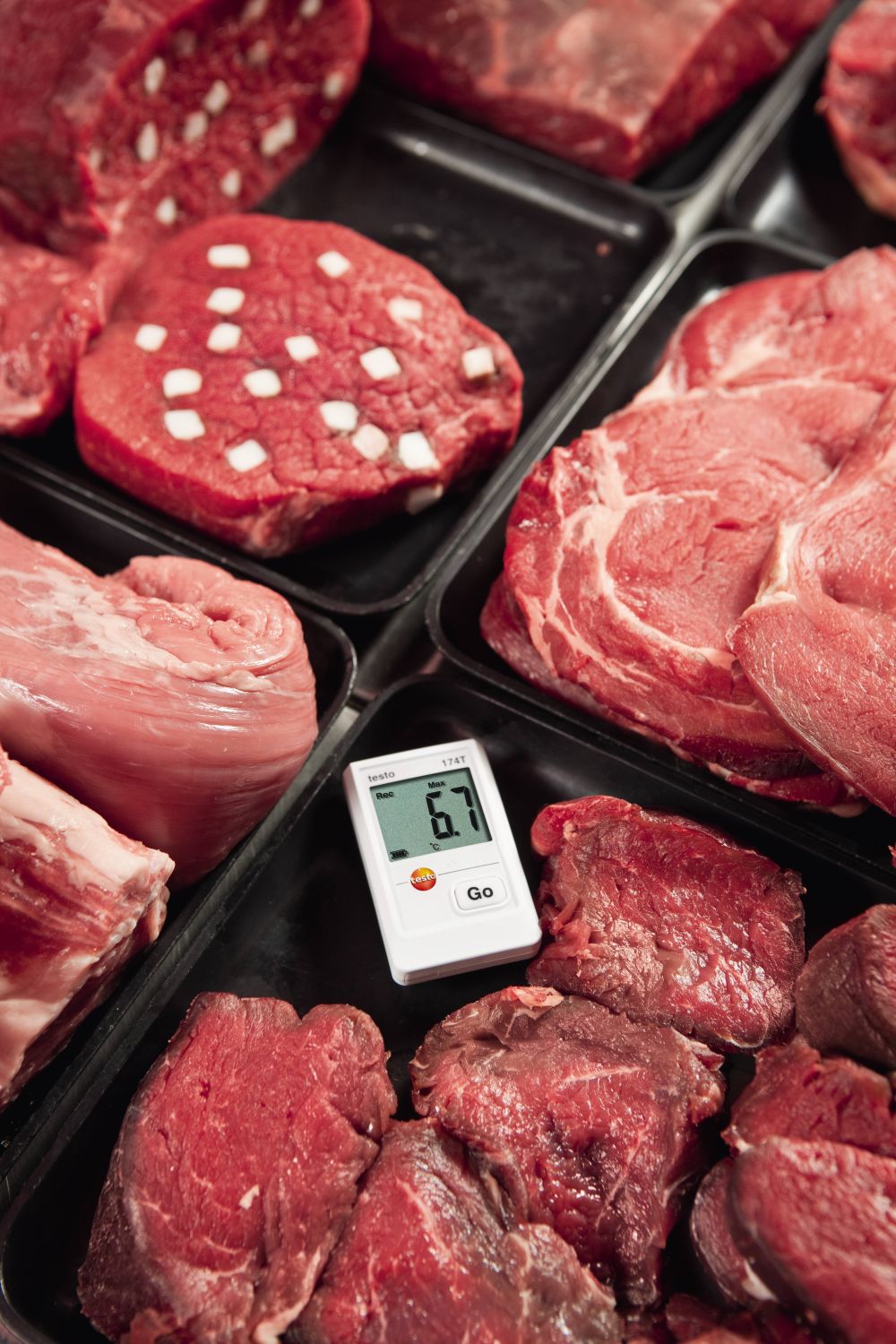

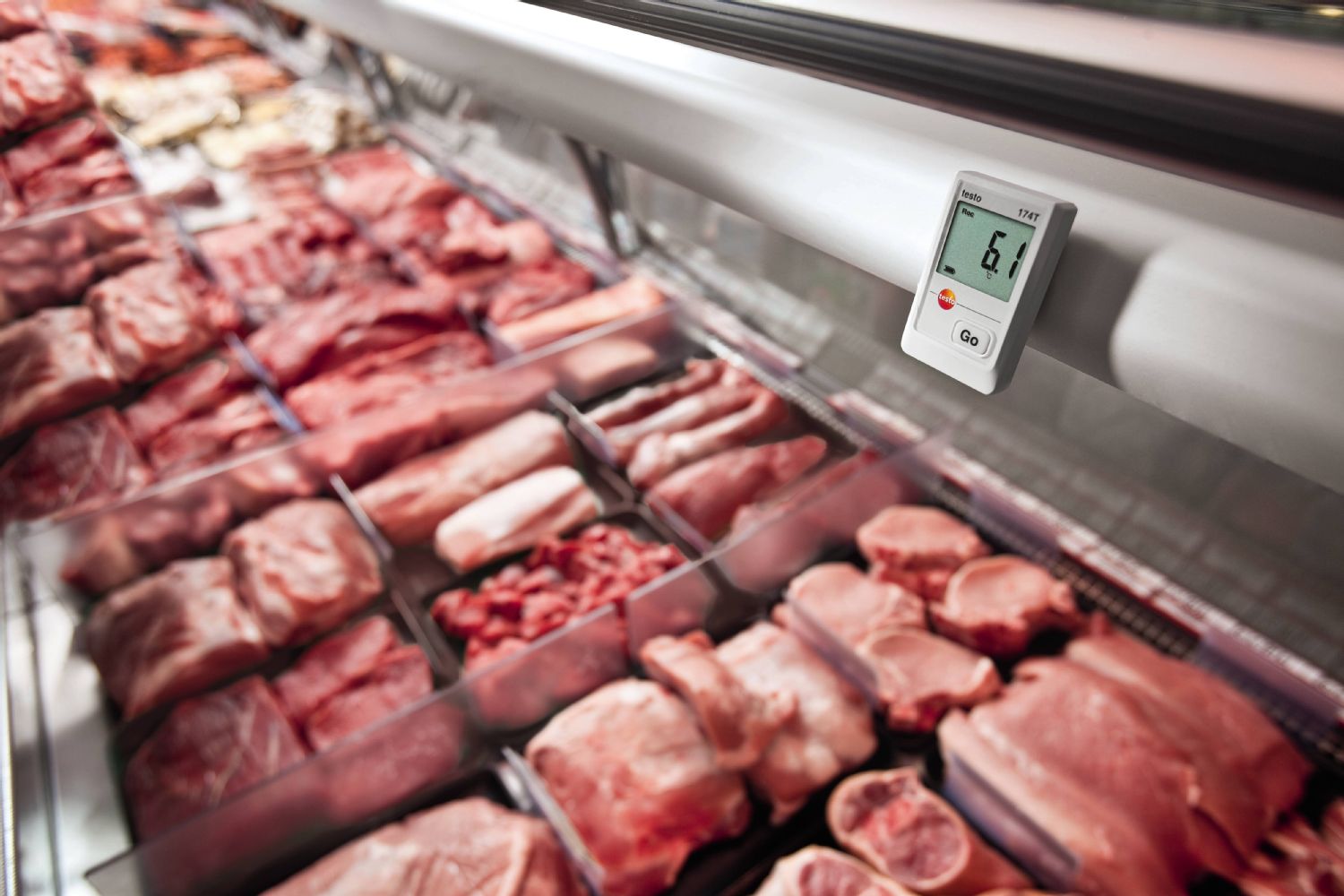

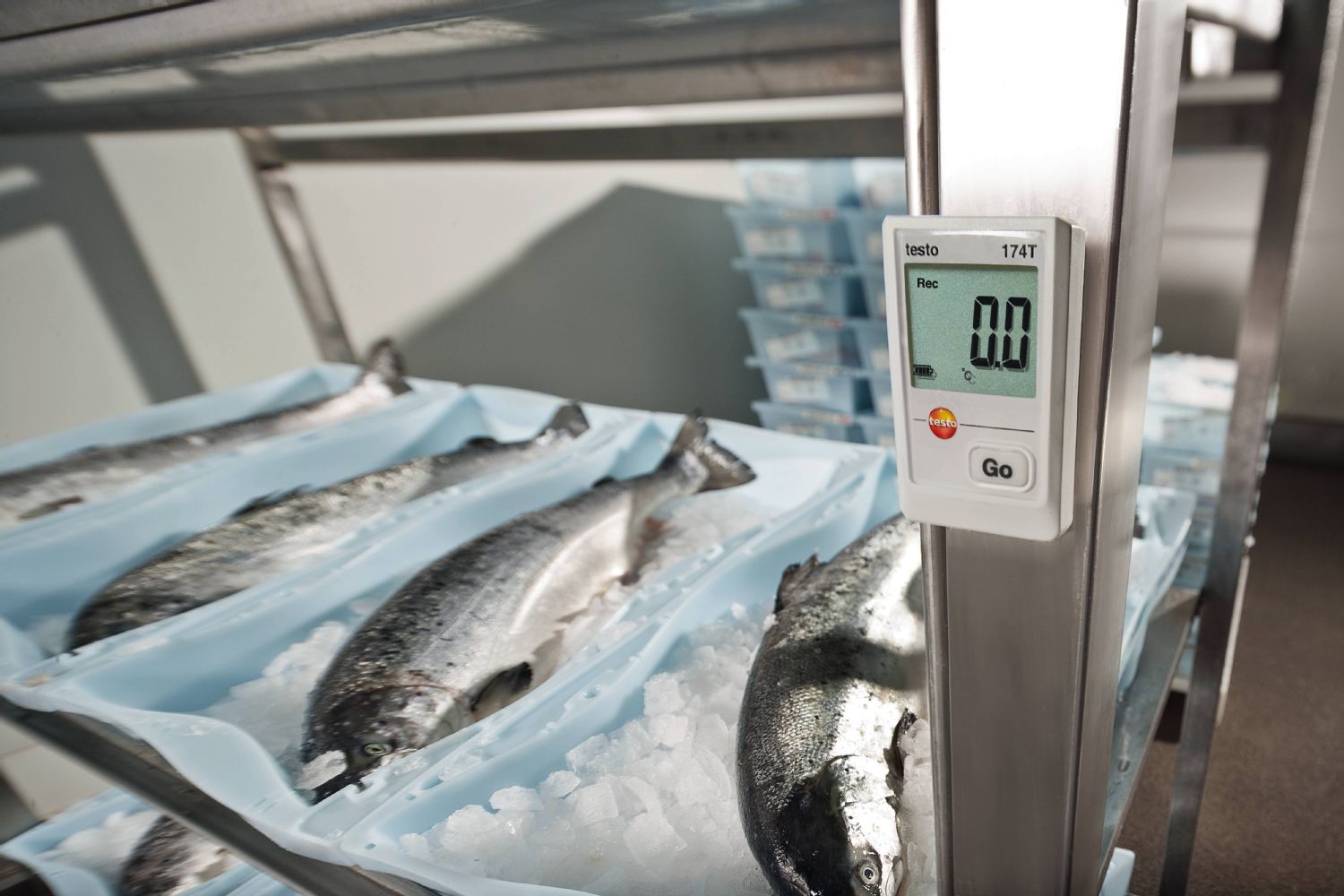

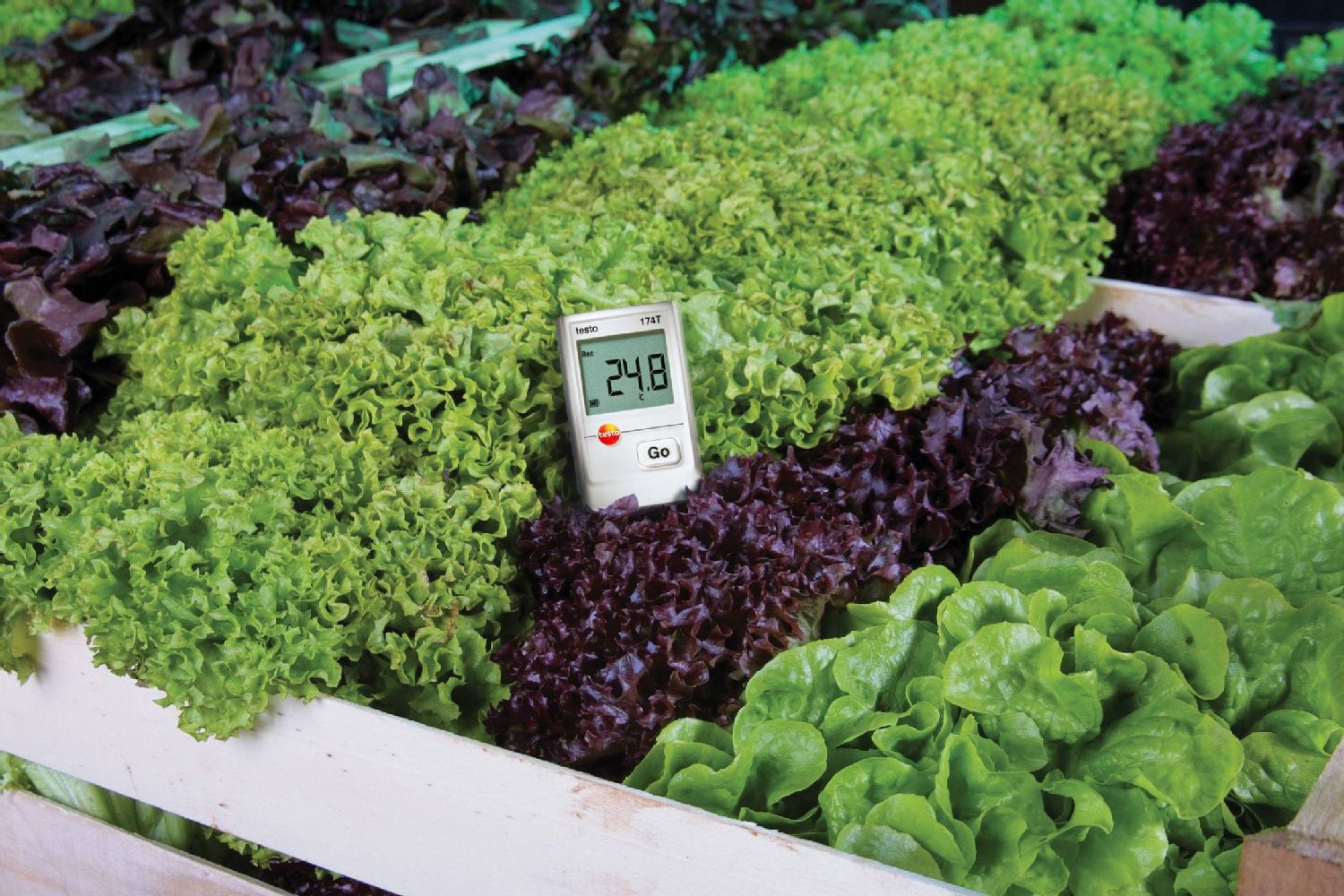

Ideal for continuous temperature measurements: With this kit, you will always be able to reliably monitor the storage temperature of pharmaceuticals or food, for example. The kit includes three testo 174T mini temperature data loggers, a USB interface and the ComSoft Basic software on CD-ROM for programming and reading the data loggers.



Details on kit components

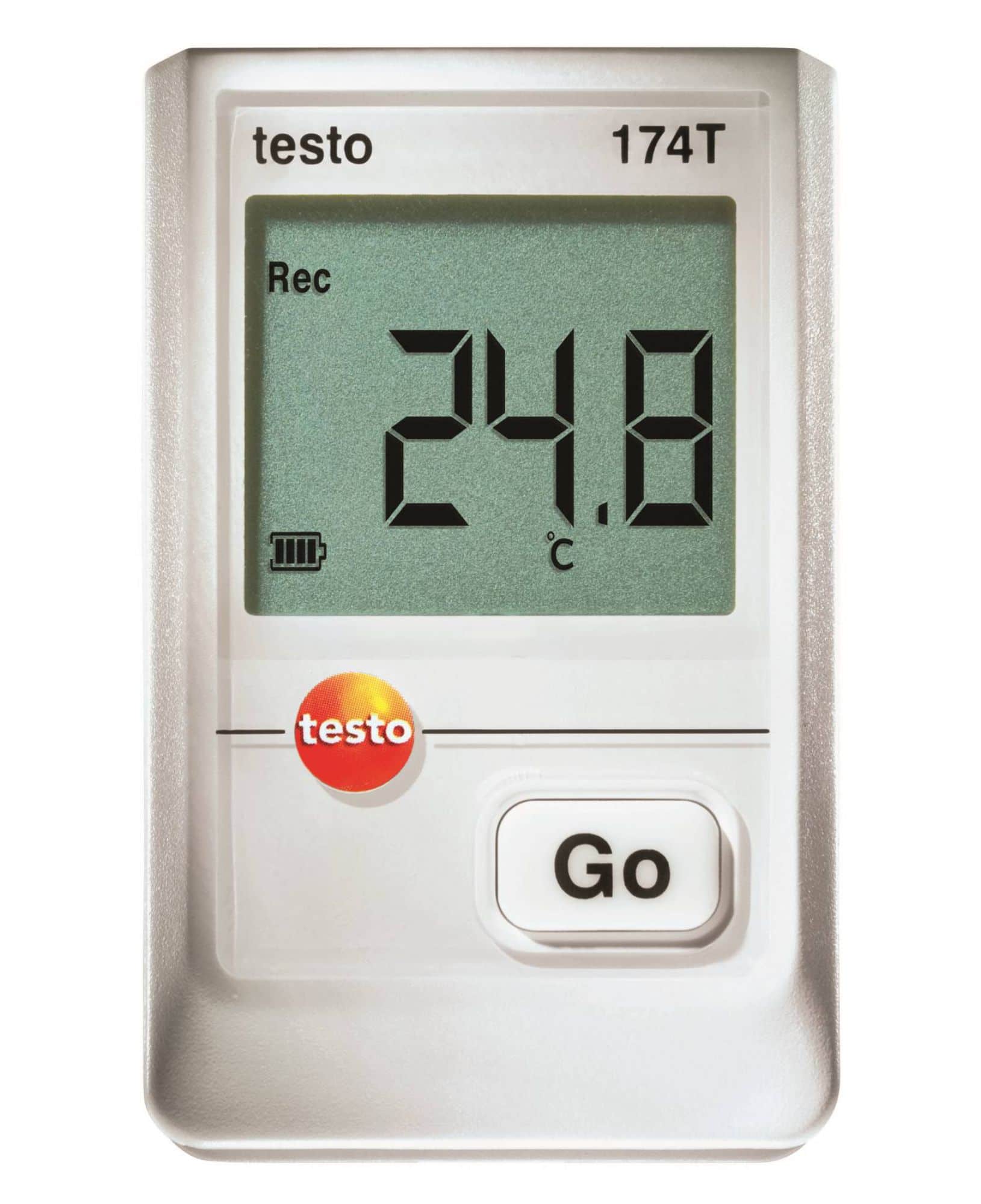

testo 174 T



Testo 174T – Mini Data Logger

Order-Nr. 0572 1560

  • Measurement data memory for up to 16,000 readings
USB-Interface zum Programmieren und Auslesen der Logger

USB interface for data loggers

Order-Nr. 0572 0500

  • For transferring readings to your PC
  • Temperature measuring range from -30 °C to +70 °C



ComSoft Basic Software

Testo ComSoft Basic v5 SP 6.3 – Logger software

Order-Nr. 0572 0580

  • Programme and read out Testo data loggers using the basic software
  • Particularly clear: graphic and tabular display of readings
Lithium battery, button cell

Lithium battery, button cell, type CR 2032

Order-Nr. 0515 5028

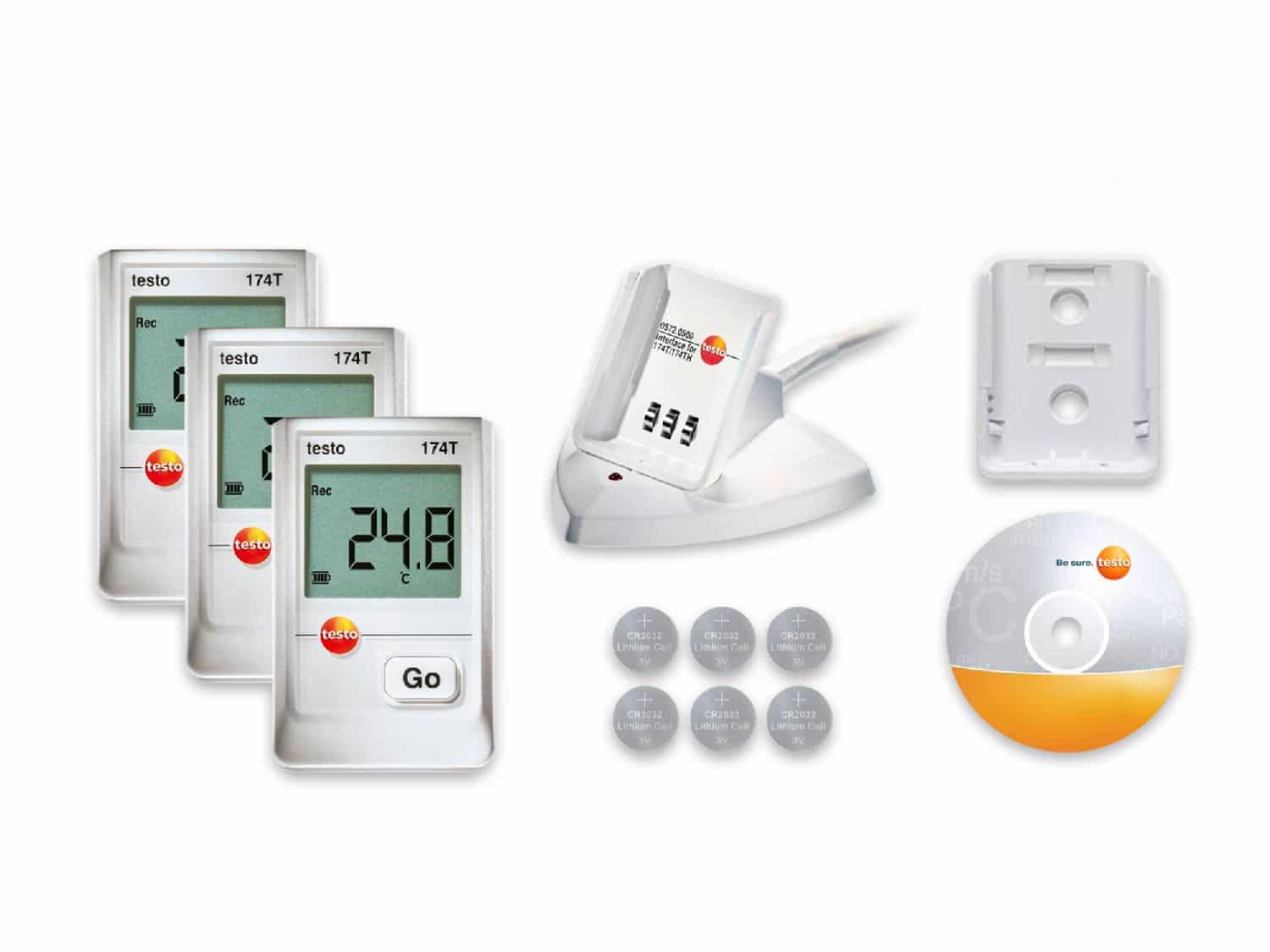

Delivery Scope
  • 3 x testo 174T mini data loggers for temperature (0572 1560)
  • USB interface (0572 0500)
  • PC software ComSoft Basic on CD-ROM (0572 0580)
  • Wall bracket
  • 2 x Lithium batteries CR2032 (0515 0028)
  • Calibration protocol (0520 0153)



Testo 174T – Mini Data Logger

Order-Nr.  0572 1560

General technical data
Weight 35 g
Dimensions 60 x 38 x 18.5 mm
Operating temperature -30 to 70 °C
Product-/housing material Plastic
Protection class IP65
Channels 1 internal
Product colour white
Standards EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate 1 min – 24 h
Battery type 2 x 3V button cell (CR 2032)
Battery life 500 days (15 min measuring cycle, +25 °C)
Memory 16,000 measuring values
Storage temperature -40 to +70 °C
Temperature – NTC
Measuring range -30 to +70 °C
Accuracy ±0.5 °C (-30 to +70 °C)
Resolution 0.1 °C



USB interface for data loggers

Order-Nr.  0572 0500



General technical data
Product-/housing material Plastic
Product colour white
Weight 150 g

Testo ComSoft Basic v5 SP 6.3 – Logger software

Order-Nr.  0572 0580

General technical data
System requirements Windows XP (Service Pack 3); Windows Vista; Windows® 7; Windows® 8; Windows® 8 Pro; Windows® 8 Enterprise; Windows® 10
