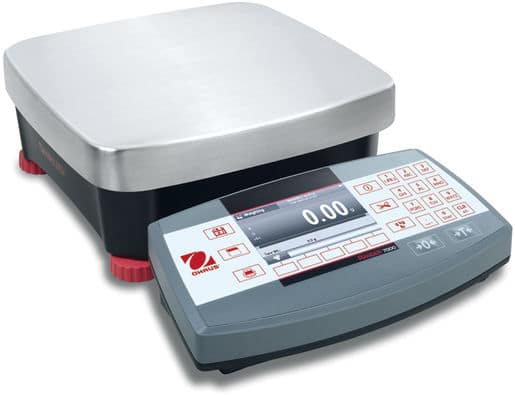

Ohaus Ranger 7000 Trade Approved

Loading...

£1,015.00£1,160.00

Clear

Product Description

Top-of-the-Line Compact Scales for Even the Most Complex Industrial Applications

  • Simplify complex applications and minimize the need for manual calculations with 10 advanced application modes, peripheral device control and an optional kit for a second scale platform.

  • The most precise scale in its class with one-second stabilization time, up to 75,000d or 350,000d display resolution and legal-for-trade certifications.

  • Extremely durable scale designed to thrive in rugged industrial environments. Features IP54-rated metal housing and sealed metal terminal.

Product Specifications

Maximum Capacity 6.0 lb, 15 lb, 30 lb, 70 lb & 150 lb
Maximum Capacity 3.0 kg, 6.0 kg, 15 kg, 35 kg & 60 kg
Readability 0.5 g, 1.0 g, 2.0 g, 5.0 g & 10.0 g
Readability (Certified) 0.5 g, 1.0 g, 2.0 g, 5.0 g & 10.0 g
Platform Size (Length) 280.0 mm (11.0 in)
Platform Size (Width) 280.0 mm (11.0 in)
Battery Life 12 Hours with Rechargeable Battery
Dimensions (Height) 114.0 mm (4.5 in)
Dimensions (Width) 280.0 mm (11.0 in)
Net Weight 6.8 kg (15.0 lb)
Dimensions (Length) 420.0 mm (16.5 in)
Tare Range To capacity by subtraction
Protection Rating IP54
Test Weight 3kg, OIML F2 or ASTM CL 4
Transportation case Not Applicable
Internal Calibration Not Applicable
Communication USB (Included);
RS232 (Included);
2nd RS232 (Available as an Accessory);
Ethernet (Available as an Accessory)
Power AC Power (Included);
Rechargeable Battery (Not Included)
Outputs 2 In/4 Out digital I/O
Working Environment -10°C – 40°C, 80%RH, non-condensing
Display 4.3’’/10.9 cm TFT Graphic LCD
Second Scale Input Yes
Legal for Trade OIML;
EC Type Approvable
Units of Measurement Gram;
Kilogram;
Ounce;
Pound;
Pound:Ounce;
Custom
Platform Construction Stainless Steel
Inuse cover Included
Linearity ± 0.1 g
Working Environment 14°F – 104°F, 80%RH, non-condensing
Main Purpose Check Weighing;
Counting;
Data Communication;
Density Determination;
Differential Weighing;
Filling;
Formulation;
Legal for Trade;
Percent Weighing;
Weigh Below
Typical Areas In advanced Checkweighing applications;
logistics and general high resolution weighing;
In general weighing and advanced counting
Market Worlds Industrial
Product will be used Outdoor;
WorkinIndustrial;
MobileUsage;
OnaTable
Key Features Battery;
GLPGMP;
IndicatorPlatformSeperated;
LFT;
Printer
