£624.17 – £1,210.33

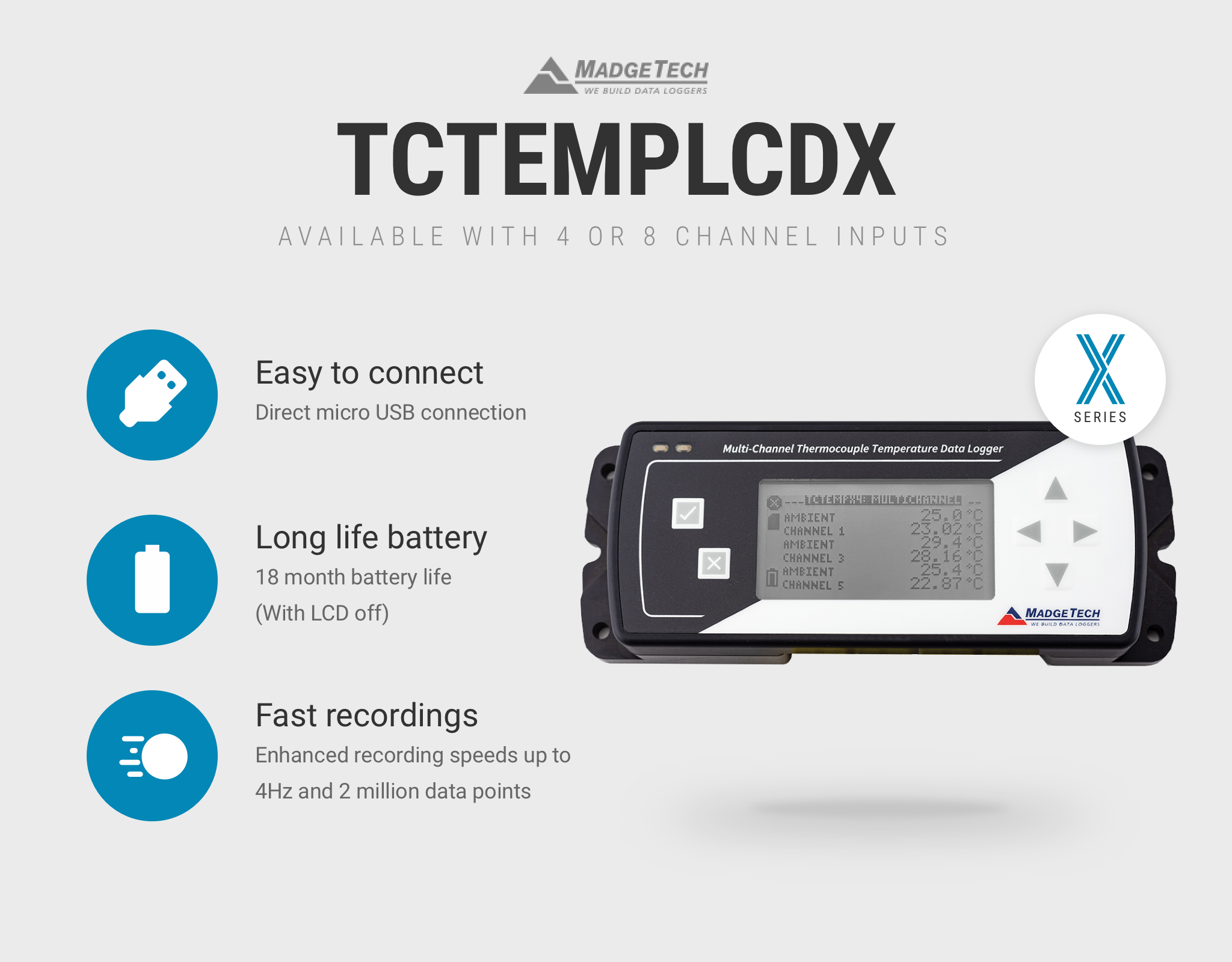

The MadgeTech TCTempXLCD display temperature data logger, available with 4 and 8 thermocouple inputs, features flexible data collection with optional temperature probes.
The MadgeTech TCTempLCDX thermocouple data logger is designed to display and collect precise temperature data for meeting regulatory compliance, available with 4 and thermocouple inputs (12 and 16 options due out in 2021)
This temperature data logger is compatible with a variety of thermocouple sensors, such as J, K, T, E, R, S, B, N and more. With a memory capacity of over 2,000,000 readings and 4Hz recording speeds, this multi-channel data logger is extremely versatile, user-friendly, and ideal for use in a large-scale facility. Channels can be individually named in order to provide clear identification during recording and analysis.
We can accompany this temperature data logger with probes and offer a bespoke system calibration service, helping you to find the most appropriate setting for recording desired data.
For quick and seamless reporting, this temperature data logger with thermocouple is compatible with the MadgeTech MT4 software. Users can export data from a USB and view results from different channels simultaneously to carry out a detailed analysis.
The TCTempLCDX thermocouple data logger is accompanied with the following equipment:
To learn more about the MadgeTech TCTempLCDX thermocouple data logger, get in touch with our friendly team today.
| Manufacturer | Madgetech |
|---|---|
| Parameter(s) | Temperature |
| Usage Type | Multi use |
| Connectivity | USB-A to micro USB cable (included); 460,800 baud |
| Sensor internal or external | External |
| Channels | TCTempX4LCD | PN 902170-00 | 4-Channel Thermocouple Data Logger TCTempX8LCD | PN 902172-00 | 8-Channel Thermocouple Data Logger |
| Sensor type | Thermocouple J, K, T, E, R, S, B, N |
| Memory | 4-channel: 524,032 readings per channel 8-channel: 262,016 readings per channel |
| Sample rate | 4 readings a second up to 1 reading every 24 hours |
| Range | -20 °C to +60 °C |
| Accuracy | Thermocouple Range (°C) Resolution Accuracy* J -210 to +760 0.1 °C ±0.5 °C K -270 to +1370 0.1 °C ±0.5 °C T -270 to +400 0.1 °C ±0.5 °C E -270 to +980 0.1 °C ±0.5 °C R -50 to +1760 0.5 °C ±2.0 °C S -50 to +1760 0.5 °C ±2.0 °C B +50 to +1820 0.5 °C ±2.0 °C N -270 to +1300 0.1 °C ±0.5 °C * Estimated accuracy, real accuracies established with system calibration |
| Resolution | 0.01°C |
| Material | Black anodized aluminium |
| Power | Battery 9V lithium Or mains supply via supplied power adaptor |
| Battery Life | 18 months typical (Display off) 3 months display on constantly |
| Dimensions | 4-channel: 65.6 mm x 184.2 mm x 31.0 mm 8-channel: 65.6 mm x 184.2 mm x 31.0 mm |
| Operating Conditions | -20°C to +60°C 0 %RH to 95 %RH non-condensing |
| Alarm | In software |
| Features | LCD display Flexible and robust thermocouple data logger with cold junction compensation. |
Available with 3 Point Calibration at request.
