£219.00 £262.80 (Inc. VAT)

Product Description

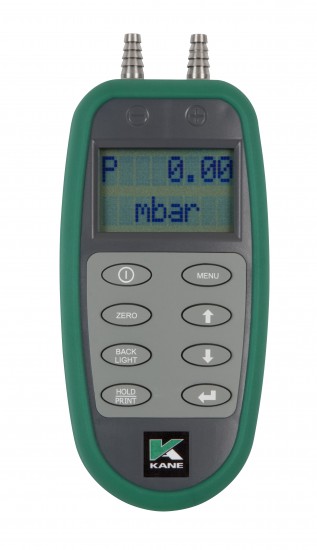

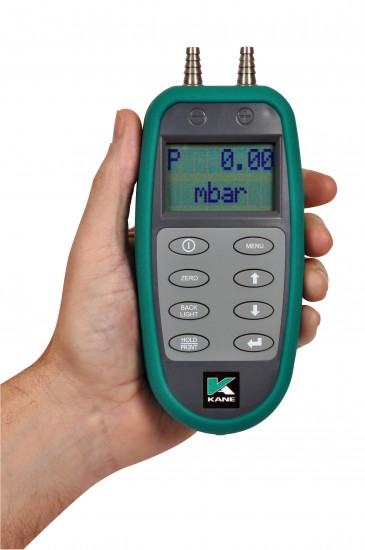

High Accuracy Differential Pressure Meters

Product Features

  • Resolution to 0.1 pascal / 0.001 mbar onthe KANE3500-1
  • Temperature compensated for superior accuracy
  • Switchable between high and low resolution.
  • Switchable between: mbar, Pa, hPa, kPa, mmHg, mmH2O, inH2O and PSI
  • Data hold and max/min recording
  • Printouts include date/time and user details
  • Automated Tightness Testing on KANE3500-1 and KANE3500-2
  • High/low resolution and smoothing features


  • Pressure meter
  • Rubber hose
  • Protective pouch


The Kane3500 series have high accuracy at low pressure and are therefore suitable for difficult applications such as €˜flue draft€™measurement and measuring the differential pressure of gas/air ratio valves on modern high efficiency boilers.
The pressures in both these applications pulsate so the €˜smooth€™ feature found on all the KANE3500 series can be used to damp the readings.

There are 5 models available:

KANE3500-1 ± 1 psi / 80 mbar

KANE3500-2 ± 2 psi / 160 mbar

KANE3500-5 ± 5 psi / 400 mbar

KANE3500-15 ± 15 psi / 1040 mbar

KANE3500-30 ± 30 psi / 2070 mba

All KANE3500 models are temperature compensated to minimise the €œdrift€ in readings which can occur when electronic manometers are subject to temperature changes, e.g. when taken from a cold van into a warm building.

The KANE3500-1 and -2 can both perform timed Let-by, Stabilisation and Tightness Tests which are automatically logged in the memory. The user can adjust the duration of each test.

All models have an infra-red output to an optional printer (KMIRP).

Live€™, €˜held€™ and €˜logged€™ readings can be printed. Printouts include date, time and a €˜header€™ which can be set by the user.

Technical Data
Nominal Pressure Ranges Measured Range Resolution Accuracy
± 80 mbar ± 0.2 mbar
± 1 mbar
± 80mbar
0.001 mbar
0.001 mbar
0.01 mbar
±0.005 mbar
±0.03 mbar
± 3% of reading

  • Weight: 285 grams with battery
  • Handset: 150mm x 72mm x 23mm (172mm including spigots)
  • Ambient Operating Range: +0ºC to +45ºC / 10% to 90% RH non-condensing
  • Power Supply: 9 Volt PP3 alkaline battery
