£808.00 £969.60 (Inc. VAT)

Product Description

Product Details

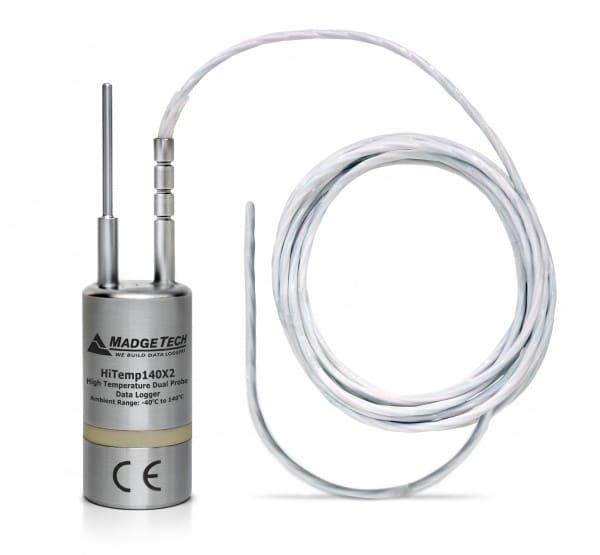

HiTemp140X2 is an extreme temperature data logger that has two external temperature channels, suitable for oven and autoclave validation exercise.

Probe options:

    • TD – Transitional Diameter stainless steel RIGID probe


    • FP – Flexible Probed white cable


    • PT – Pig Tail mineral insulated semi flexible stainless steel



Selecting flexible probes (FP) for both channels for applications requiring the collection of rapidly changing temperature in two locations. Mineral insulation (PT) probes are ideal for elevated

temperatures or when you need a temperature sensor that can be manipulated into a position or used to puncture the core of a product. (TD) Rigid probes are the perfect partner for flexible and

mineral insulated probes as they will deliver ambient versus probe temperature a critical task for lethality and cooking processes.

Configure a single HiTemp140X2 using the IFC400 interface or multiple data loggers with the IFC406 multiplexer. Stainless steel, submersible IP68 construction enables the operation in any

environment between -40°C and +140°C (with no time limit) or -200°C to +250°C for a limited time, using the HiTemp140X2 thermal shield.

Once the validation exercise has been concluded, wait for the data loggers to cool down or warm up and insert them back into the interface. Using MT4 software and €˜workflows€™ to automatically

download and save data before generating customised reports and performing analytical functions, including;

HiTemp 140 X2 FP

Technical Data

HiTemp 140 X2 TD

Technical Data


    • Graphical temperature vs. time with threshold analysis


    • Table of temperature vs. time data


    • Statistical evaluation


    • Maximum


    • Minimum


    • Average


    • Change over time


    • F0


    • PU



Suitable for use in autoclaves, cooking and package validation
Compatible with thermal shield for use in extreme temperatures
21 CFR Part 11 Compliant
Precise temperature data logging
Batch configuration with multiplexer

Reduce costs by using one, two channel data logger instead of two separate data loggers.

Compatible with the HiTemp140 range of products and accessories which encompass the demand for reliability and high performance at reasonable prices.

Requires: IFC400 or IFC406 interface along with free issued MT4 software


Technical Data
Manufacturer MadgeTech
Parameter Temperature
Usage Type Multiple
Sensor Internal
Channels 2
Sensor Type [TD] Rigid 2.0″ x 0.125″ with 0.188″ transitional diameter
[PT-1] Mineral Insulated Probe: Probe Tip 1.7″ x 0.125″
Bendable Portion 22″ x 0.062″
[PT-5] Mineral Insulated Probe: Tip 4.8″ x 0.125″ with 1″ x 0.188″ handle
Bendable Portion 22″ x 0.062″
[FP 36] Flexible Probe 36″ x 0.10″
[FP 72] Flexible Probe 72″ x 0.10″
Memory 32767 readings
Sample rate 1 reading a second ~ 1 reading a day
Range [TD] Rigid Probe: -200 °C to +260°C
[PT] Bendable Probe: -200 °C to +350°C
[FP] Flexible Probe: -60 °C to +260°C
Accuracy ±0.1°C
Resolution >±0.01°C
Material 316 Stainless Steel
Power User replacement battery
Battery life 365 days
Dimensions Data logger 1.89″ x 0.97″
Environment IP68
Operating Conditions -40°C to +140°C
Operating Conditions With Shield 200°C to +250°C
