£460.00 £552.00 (Inc. VAT)

Product Description

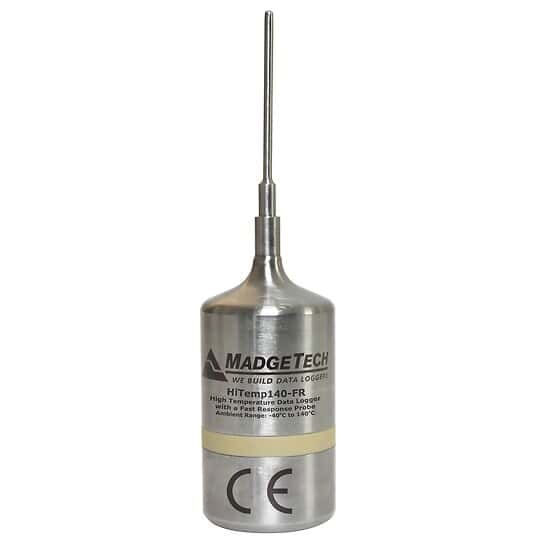

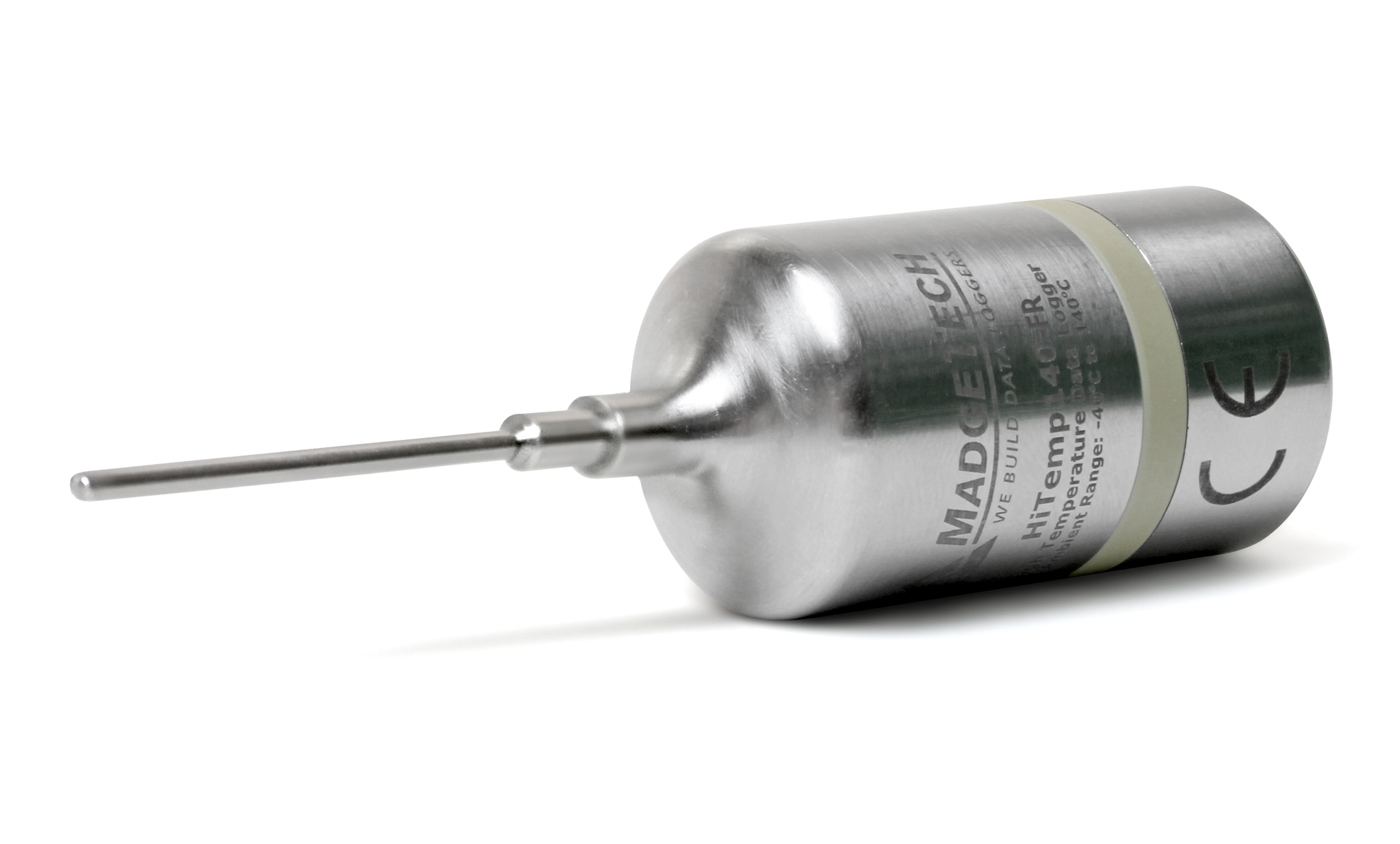

HiTemp140-FR Fast Response Extreme Temperature Data Logger

Product Details

Unique solution for rapidly sampling and recording precise temperature data during validation routines in ovens, autoclaves and sterilisers.

The HiTemp140-FR joins the ever expanding range of MadgeTech validation data loggers which encompass the demand for reliability and high performance at reasonable prices.

Configure a single HiTemp140 using the IFC400 interface or multiple data loggers with the IFC406 multiplexer. Stainless steel, submersible IP68 construction enables the operation in any environment between -40°C and +140°C (with no time limit) or -200°C to +250°C for a limited time, using the TSK shield.

Once the validation exercise has been concluded, wait for the data loggers to cool down or warm up and insert them back into the interface. Using MT4 software and workflows to automatically download and save data before generating customised reports and performing analytical functions including:




    • Graphical temperature vs. time with threshold analysis
    • Table of temperature vs. time data
    • Statistical evaluation
    • Maximum
    • Minimum
    • Average
    • Change over time
    • F0
    • PU


Rapid sampling and recording
Suitable for use in autoclaves
Compatible with thermal shield for use in extreme temperatures
21 CFR Part 11 Compliant
Precise temperature data logging
Batch configuration with multiplexer

Compatible with the HiTemp140 range of products and accessories which encompass the demand for reliability and high performance at reasonable prices.

Also available with 1″, 5.25″ and 7″ probe.

Requires: IFC400 or IFC406 interface along with free issued MT4 software


Technical Data
Manufacturer MadgeTech
Parameter Temperature
Usage Type Multiple
Sensor Internal
Channels 1
Sensor Type 2″ x 0.0625″ diameter, 100 ohm Platinum RTD
Memory 32767 readings
Sample rate 4 readings a second
Range -200°C to +260°C
Accuracy ±0.1°C
Resolution >±0.01°C
Material 316 Stainless Steel
Power User replacement battery
Battery life 365 days
Dimensions 3.64″ x 0.97″
Environment IP68
Operating Conditions -40°C to +140°C
Operating Conditions With Shield -200°C to +250°C
