£242.80 £291.36 (Inc. VAT)

Product Description

HI-99301 EC/TDS/Temperature Meter – High Range

  • Complete with EC/TDS temp probe
  • 2 year manufacturer warranty

HI-99301 measures High Range conductivity, total dissolved solids and temperature

encountered in manufacturing and environmental settings.

All operations, settings and temperature scale selections are made through only two buttons.

HI-99301 measures High Range conductivity, total dissolved solids and temperature

encountered in manufacturing and environmental settings..

To increase precision, two models are available, low range and high range, with different

conductivity ranges, for applications from purified to brackish waters. (Also see HI-

99300).

All operations, settings and temperature scale selections are made through only two buttons.

The housing is waterproof and rated for IP67 conditions.

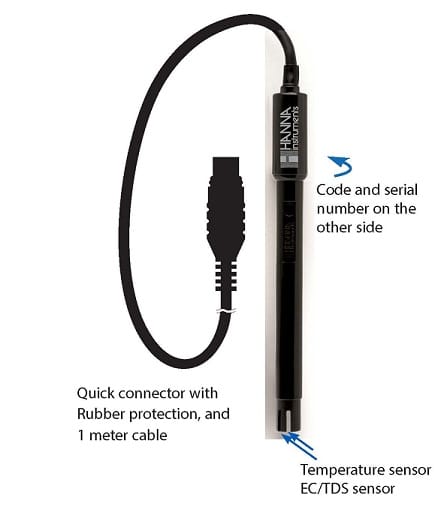

The supplied multi-parameter probe, HI-763063, included EC/TDS and temperature in one

convenient, rugged probe. Other user selectable features include different TDS factors from

0.45 to 1.00 and a range of temperature coefficients (β) from 0.0 to 2.4% for better

solution temperature compensation.

Main features:

  • Simultaneous EC/TDS and temperature measurements on a large LCD display
  • Selectable temperature unit
  • HI-763063 dedicated EC/TDS temperature probe
  • Probe quick connect system
  • Battery life indication and low battery detection
  • Auto-off function
  • Keystroke confirmation tone
  • Waterproof casing IP67

Each meter is supplied complete with:

  • HI-763063 pH/EC/TDS probe with built-in temperature sensor, DIN connector and 1m

    cable

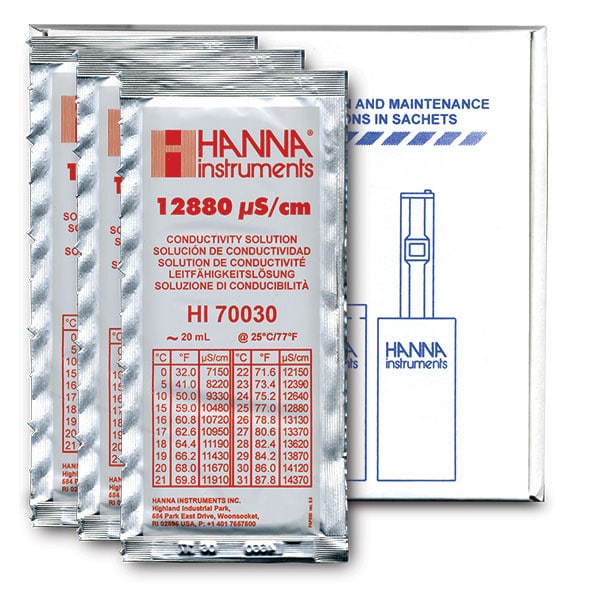

  • HI-70030 – 12880 µS/cm and HI-70038 6.44 ppt 1 sachet each
  • Rugged carrying case
  • Calibration certificate of meter
  • Calibration certificate of probe
  • Instruction manual
  • 100mL beaker
  • Alkaline batteries: 1.5V AAA x 3
  • Instruction manual
Specifications
Range – EC 0 to 20.00 mS/cm (displays mS)
Range – TDS 0.00 to 10.00ppt
Range – Temperature -5.0 to 105.0°C
Resolution – EC 0.01 mS/cm
Resolution – TDS 0.01 ppt (g/L)
Resolution – Temperature 0.1°C
Accuracy @ 20°C ±2% F.S. (EC/TDS); ±0.5°C temp
TDS Conversion factor Selectable from 0.45 to 1.00 with 0.01 increments
EC/TDS Calibration Automatic, one-point at 12.88mS/cm or 6.44 ppt

(CONV=0.5) or 9.02 ppt (CONV=0.7)

Temperature Compensation Automatic, with β selectable from 0.0 to 2.4%/°C with

0.1 increments

Probe (included) HI-763063 EC/TDS/Temperature sensor, DIN connector and 1m

cable

Battery type/life 4 x 1.5V AAA / approx. 500 hours of continuous use
Environment 0 to 50°C (32 to 122°F); RH max 100%
Dimensions 154 x 63 x 30 mm
Auto off User selectable after 8 mins, 60 mins or disabled
Weight 196g
Casing ingress protection rating IP67

Please call for more information on this product.
