£615.40 £738.48 (Inc. VAT)

Product Description

HI-99192 pH & Temperature Meter for Drinking Water Analysis

  • NEW DESIGN
  • 2 years manufacturer warranty

HI-99192 is a portable, lightweight pH meter with two button operation that is simple to use. Features include a waterproof and compact casing, large dual-line display, low battery detection, automatic pH calibration at one or two points and selectable temperature unit (°C). The HI-99192 meter comes with a FC2153 pH which is designed specifically for measuring the pH of potable waters.

HI-99192 and FC2153 are ideal for on-site spot checks of drinking water.

The pH of potable water is fundamental to ensure safe water quality. If the pH is too low, drinking water will be corrosive to the distribution system and water pipes in homes. If it is too high, it can reduce the effectiveness of disinfectants. The pH of water also influences aesthetic or cosmetic properties including taste, odour, and clarity. Most public water operations maintain pH between 6.5 and 8.5.

Many factors affect pH measurements. An accurate temperature measurement and temperature compensated pH, along with at least two calibrated pH standards will improve the quality of the pH measurement. Often pH electrodes respond sluggishly in potable water samples due to the nature of the water, the sample temperature or the design of the electrode.

The HI-99192 together with the FC2153 pH electrode solves all the problems found with standard pH systems. This specialised electrode offers numerous features that improve pH testing in drinking water. The spherical pH bulb features a low resistance pH glass that responds quickly to the sample (even at cold temperatures). It also has a refillable single junction Ag/AgCl reference that is used with a KCl electrolyte and has three ceramic junctions to ensure continuity and provide quick and reproducible measurements (even in low ionic strength waters).

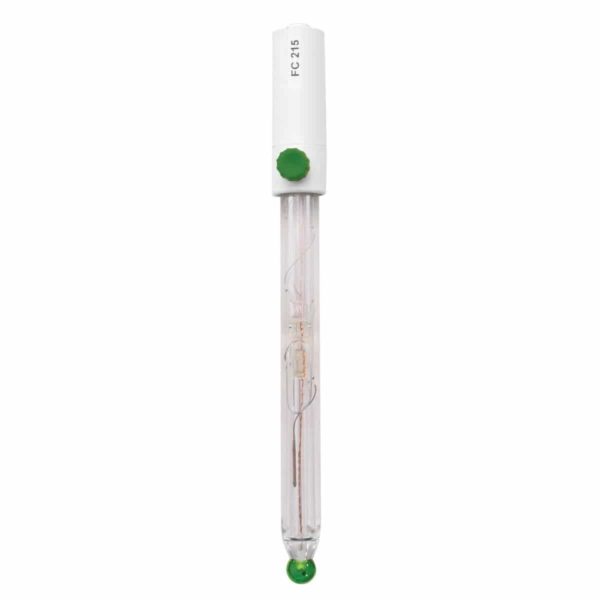

About the FC2153 electrode

FC2153 pH electrode has a built-in temperature sensor for temperature compensated pH and temperature readings and contains an integral pre-amplifier to provide stable measurements in electrically noisy environments. The glass-bodied probe has a Quick Connect DIN and 1m cable.

Main features of the meter

  • Range: -2.00 to 16.00 pH; Temperature range: -5.0 to 105.0°C
  • Simultaneous pH and temperature measurements in a large dual-line LCD display
  • Automatic pH calibration at one or two points within two memorised buffer sets (standard or NIST)
  • Selectable temperature unit (°C)
  • Electrode condition indicator
  • mV of pH measurement for electrode check
  • FC2153 dedicated pH with integral temperature sensor
  • Probe quick connect system
  • Battery life indication and low battery detection
  • Keystroke confirmation tone
  • Auto-off function
  • Waterproof casing IP67

Each meter is supplied with:

  • FC2153 pH electrode with internal temperature sensor, with DIN connector and 1m cable
  • pH 4.01 & 7.01 Buffer Sachet
  • HI-700601 general electrode cleaning solution (2 sachets)
  • 100ml beaker
  • Alkaline batteries: 1.5V AAA x 3, 1200 hours of continuous use
  • Rugged carrying case
  • Calibration certificate of meter
  • Calibration certificate of probe
  • Instruction manual
Specifications
pH Range -2.00 to 16.00 pH*
pH Resolution 0.01 pH
pH Accuracy ±0.02 pH
pH Calibration automatic, one or two-point selectable buffer set standard pH 4.01, 7.01, 10.01 or NIST pH 4.01, 6.86, 9.18
Temperature Accuracy ±0.5°C (up to 60°C), ±0.1°C (outside)
Temperature Range -5.0 to 105.0°C / 23.0 to 221.0°F
Temperature Resolution 0.1°C
Temperature Compensation automatic from -5.0 to 105.0°C
Temperature Accuracy ±0.5°C
mV range ±825 mV (pH-mV)
mV Resolution 1 mV
Additional Specifications:
pH Electrode FC2153 pH electrode with internal temperature sensor, with DIN connector and 1 m (3.3′) cable (included); please note: FC2153 is limited to be used from 0 to 12 pH and from 0 to 70°C
Battery Type / Life 3 x 1.5V AAA / approx. 1200 hours of continuous use
Environment 0 to 50°C (32 to 122°F); RH max 100%
Dimensions 154 x 63 x 30 mm
Weight 196g
Case ingress protection rating IP67

Please call for more information on this product.
