Product Description

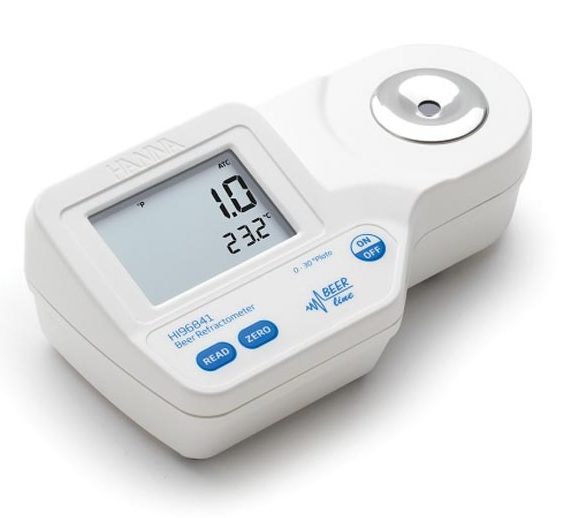

HI-96841 Digital Refractometer for Brewing measures the sugar content of wort and converts it to °Plato with the push of a single button.

 Sugar content of wort converts to °Plato

Product Description


The HI-96841’s intuitive layout and pinpoint accuracy ensure effortless operation and reliable wort readings every time.

  • Small sample size – as small as two metric drops of wort (0.1 mL)
  • One-button calibration makes setup quick and easy
  • Quick, precise results are displayed in 1.5 seconds

HI-96841 Digital Refractometer combines form and function into one compact unit. Featuring a 1.5 second response time, the HI-96841 measures the refractive index of wort and converts it to °Plato with temperature compensation. The improved easy-to-read LCD screen displays temperature units (°C or °F) and measurements simultaneously. The HI-96841’s IP65 water-resistant casing and sealed sample well are built to perform under harsh conditions, making it suitable for use in any brewery.

The °Plato scale is a way to quantify the concentration of sugars and dissolved solids in wort. This measurement can indicate the potential alcohol content of finished beer. The HI-96841 converts the refractive index reading to °Plato based on the tables maintained by the International Commission for Uniform Methods of Sugar Analysis (ICUMSA) and the American Society of Brewing Chemists (ASBC).


  • Designed for wort sugar analysis
  • Temperature compensation algorithms based on sucrose solution
  • 0 to 30 °Plato range with ± 0.2 °Plato


Alcohol Interference

It should be noted that once fermentation begins, ethanol and the residual sugar interfere with each other and prevent an accurate reading of the Brix value of your residual sugar.. For this reason, this refractometer cannot be used with finished beer or other fermented beverages. It is designed for use with wort only.

Key Features:


  • One-point calibration – Calibrate with distilled or deionized water
  • Small sample size – Sample size can be as small as two metric drops (0.1 mL)
  • Automatic Temperature Compensation (ATC)
  • Quick, accurate results in 1.5 seconds
  • Dual-level LCD displays measurement and temperature readings simultaneously
  • Stainless steel sample well – Easy to clean and corrosion-resistant
  • Battery indicators – Battery percent level remaining at start up and low battery indicator
  • Automatic shut-off after three minutes of non-use
  • IP65 water resistant protection – ABS plastic casing designed to perform under laboratory and field conditions



Sugar Content Range 0 to 30 °Plato
Sugar Content Resolution 0.1 °Plato
Sugar Content Accuracy (@25ºC/77ºF) ±0.2 °Plato
Temperature Range 0 to 80°C (32 to 176°F)
Temperature Resolution 0.1°C (0.1°F)
Temperature Accuracy ±0.3 °C (±0.5 °F)
Temperature Compensation automatic between 10 and 40°C (50 to 104°F)
Measurement Time approximately 1.5 seconds
Minimum Sample Volume 100 μL (to cover prism totally)
Light Source yellow LED
Sample Cell stainless steel ring and flint glass prism
Auto-off after three minutes of inactivity
Enclosure Rating IP65
Battery Type / Life 9V / approximately 5000 readings
Dimensions / Weight 192 x 102 x 67 mm; 420 g
Ordering Information HI-96841 is supplied with 9V battery and instruction manual
Warranty 2 years
