Product Description


The HI-96811, HI-96812, HI-96813, HI-96814 and HI-96816 Digital Wine Refractometers are rugged, lightweight and waterproof for measurements in the lab or field.

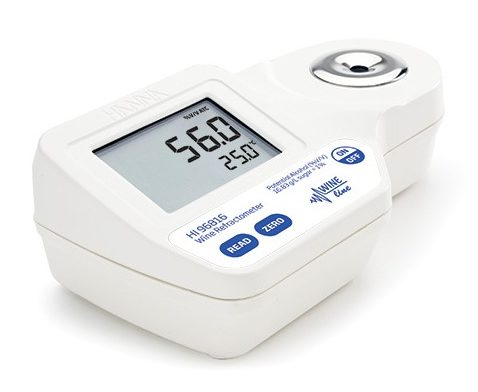

The HI-96816 digital wine refractometer is rugged, lightweight and water resistant for measurements in the lab or field.

This optical instrument employs the measurement of the refractive index to determine parameters pertinent to the wine industry.

The actual measurement of the refractive index is simple and quick and provides the vintner a standard accepted method for sugar content analysis. Samples are measured after a simple user calibration with deionised or distilled water. Within seconds, the instrument measures the refractive index of the grape must. These digital refractometers eliminate the uncertainty associated with mechanical refractometers and are ideal for fast, reliable measurements in the field.

HI-96816 converts the refractive index of the sample to sucrose concentration in units of percent by weight, %Brix (also referred to as °Brix). The conversion used is based on the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis). Since the majority of sugar in grape juice is fructose and glucose and not sucrose, the reading is sometimes referred to as “Apparent Brix”.

The potential alcohol curve is based on the following equation:


potential alcohol (%v/v) = g/L of Sugar / 16.83.


Key features:

  • Dual-level LCD
  • Automatic temperature compensation
  • BEPS – low battery power alert
  • IP65 water protection
  • Quick, accurate results in approximately 1.5 seconds
  • One-point calibration – calibrate with distilled or deionised water
  • Small sample size – 2 metric drops
  • Automatic shut off after three minutes of non use
  • Easy to clean stainless steel sample well
  • Easy measurement – place a few drops of the sample in the well and press the READ key
  • ABS Thermoplastic casing


Technical Specifications

Sugar content range 4.9 to 56.8% V/V potential alcohol; (10 to 75% Brix)*
Sugar content resolution 0.1% V/V potential alcohol
Sugar content accuracy @25°C ±0.2%V/V potential alcohol
Temperature Range 0 to 80°C
Temperature Resolution ±0.1°C
Temperature Accuracy @25°C ±0.3°C
Temperature Compensation Automatic between 10 and 40°C (50 to 104°F)
Measurement Time Approximately 1.5 seconds
Minimum Sample Volume 100 μL (to cover prism totally)
Light Source Yellow LED
Sample Cell Stainless steel ring and flint glass prism
Auto-off After 3 minutes of non-use
Enclosure Rating IP 65
Battery Type / Battery Life (1) 9V / Approx 5000 readings
Dimensions 192 x 102 x 67 mm (7.6 x 4 x 2.6”)
Weight 420g (14.8 oz.)
HI-4020-11 Brix standard 50%, 10mL


*Hidden range
