Product Description

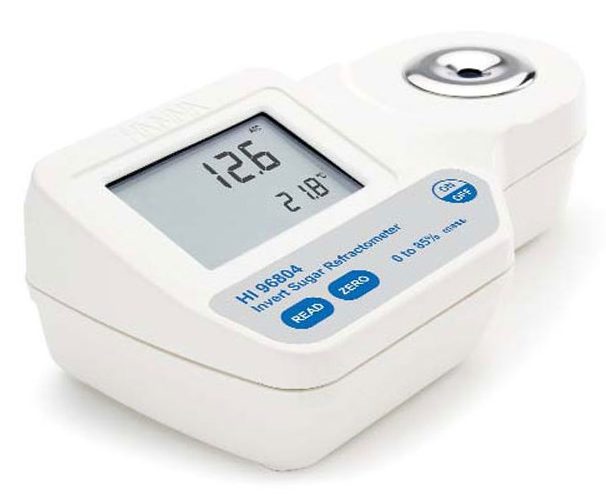

HI-96804 measures the refractive index to determine the % invert sugar in aqueous solutions.

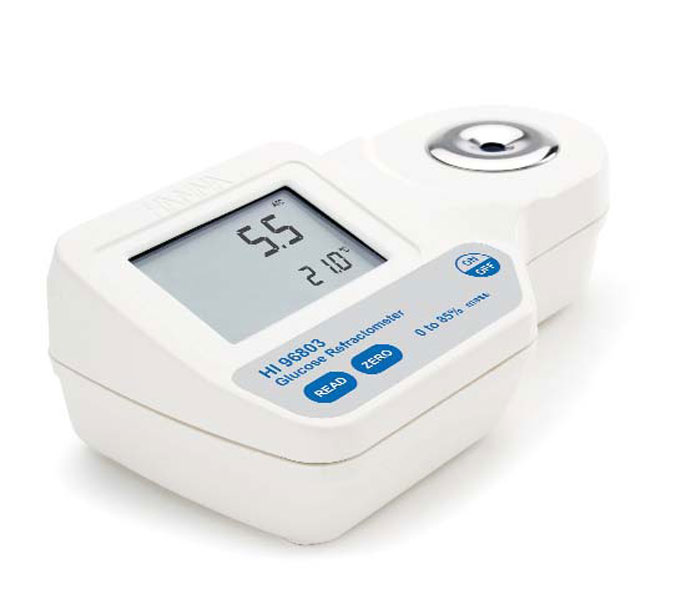

Hanna offers five sugar refractometers to meet the requirements of the food industry. The HI-96800 Refractive Index/Brix, HI-96801 % Brix (sucrose), HI-96802 Fructose, Hi-96803 Glucose, and HI-96804 Invert Sugar digital refractometers are rugged, portable and water-resistant for measurements in the lab or field.

The refractive index of the sample is converted to % mass (%w/w) concentration units.

The HI-98604 is used across the food industry for measuring the % invert sugar in foods.

Quick and easy to use it is ideal for analysing the sugar content in a wide range of food products including fruit, energy drinks, puddings, tofu, jams, honey, soups and sauces.

Priced inexpensively does not mean a compromise on accuracy, the Hanna refractometer offers all the benefits of high precision digital technology at the same price as a mechanical model.

The HI-96804 measures the refractive index to determine the % invert sugar in aqueous solutions. The refractive index of the sample is then converted to % by weight concentration units.

Product uses

  • Fruit growers and importers
  • Fruit juice & drink manufacturers
  • Production of jams, preserves & sauces

Key features

  • White water resistant casing
  • Easy clean sample well
  • Zero using pure water
  • Battery operated with auto shut-off

Main benefits

  • 1.5 second measurement time
  • Direct readout in % Brix and °C
  • Automatic temperature compensation
  • No calibration solutions required
  • Large clear LCD display





Technical Specifications


Range – Sugar Content 0 to 85% (by weight)
Range – Temperature 0 to 80°C (32 to 176°F)
Resolution – Sugar Content ±0.1
Resolution – Temperature ±0.1°C (0.1°F)
Accuracy (@20°C) – Sugar Content ±0.2%
Accuracy (@20°C) – Temperature ±0.3°C (0.5°F)
Temperature Compensation Automatic between 10 and 40°C (50 to 104°F)
Measurement Time Approximately 1.5 seconds
Minimum Sample Volume 100 µL (to cover prism totally)
Light Source Yellow LED
Sample Cell SS ring and flint glass prism
Auto-off After 3 minutes of non-use
Enclosure Rating IP 65
Battery Type / Battery Life 9V / Approx 5000 readings
Dimensions 192 x 102 x 67 mm (7.6 x 4 x 2.6″)
Weight 420g
