£393.00 £471.60 (Inc. VAT)

Product Description

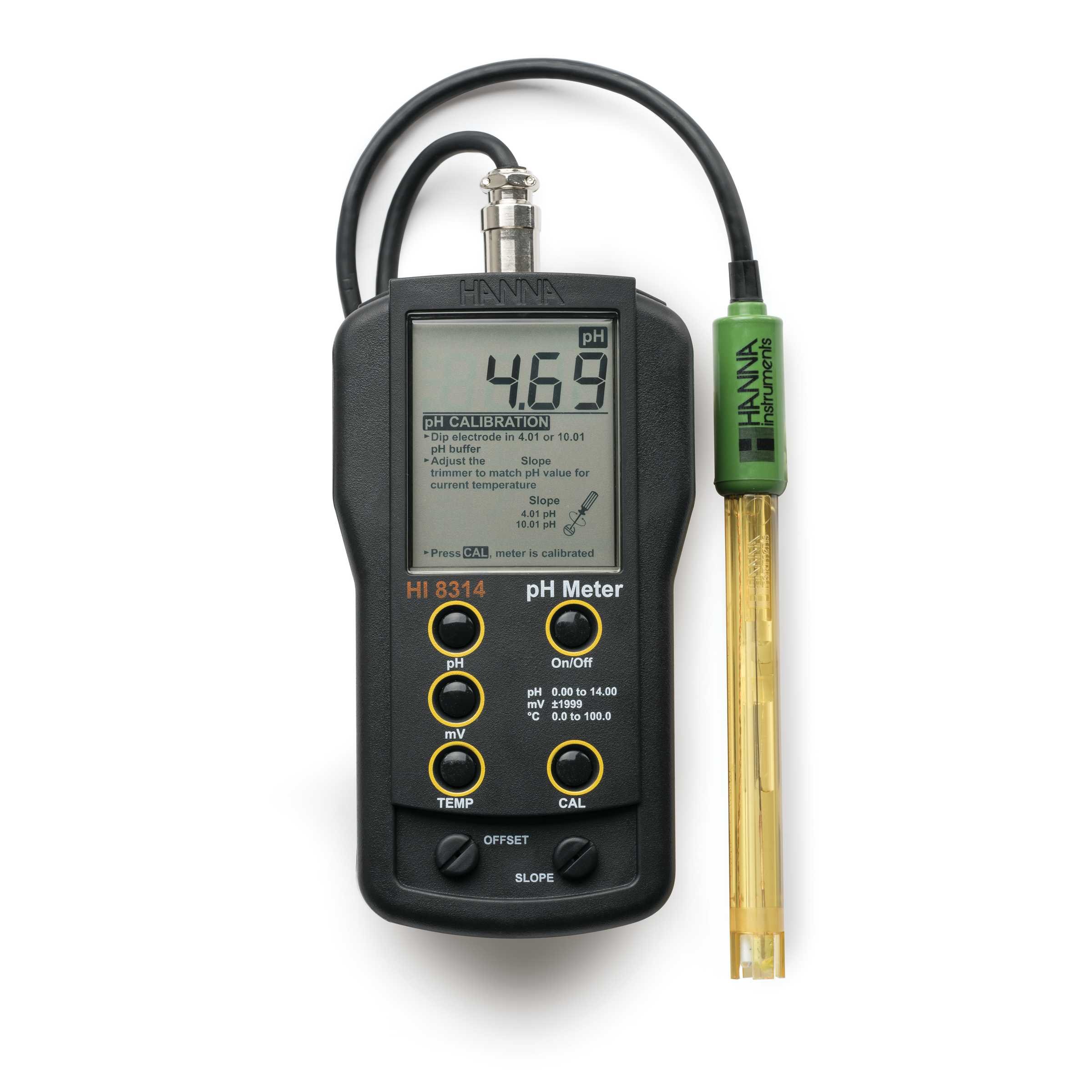

The HI-8314 is a handheld pH/mV/°C meter designed to be reliable and easy-to-use. The HI-8314N is also supplied with the HI-1217D pre-amplified pH electrode and internal temperature sensor.

Manual calibration is performed at one or two points by adjusting the trimmers on the front panel. This instrument is ideal for applications that require a custom calibration point. Manual calibration can be extremely useful in order to achieve better accuracy.


Key features

  • Pre-amplified pH electrode
  • Easy manual one or two point calibration
  • Automatic Temperature Compensation
  • Low battery indicator

Supplied with

  • HI-1217D pH electrode
  • Starter pack of buffer and cleaning solutions
  • Calibration screwdriver
  • Battery and instructions
  • Protective case


Click here for the HI-8314 Data Sheet






Range – pH 0.00 to 14.00 pH
Range – mV ±1999 mV
Range – Temperature 0.0 to 100.0°C
Resolution – pH 0.01 pH
Resolution – mV 1 mV
Resolution – Temperature 0.1°C
Accuracy – pH ±0.01 pH
Accuracy – mV ±1 mV
Accuracy – Temperature ±0.4°C
pH Calibration manual, 2 point, through trimmers,
(offset ±1 pH; slope 85 to 105%)
Temperature Compensation Automatic, 0 to 70°C (32 to 158°F)
Connector DIN
Probe HI 1217D pH electrode, double junction,
gel filled, with internal temperature sensor,
DIN connector connector and 1 m cable (included)
Input Impedance 1012 Ohm
Battery Type / Life 1 x 9V / approx. 100 hours of continuous use
Environment 0 to 50°C (32 to 122°F); RH max 95%
Dimensions 164 x 76 x 45 mm (6.5 x 3.0 x 1.8″)
Weight 180 g (6.3 oz.)
