Original price was: £1,013.50.£675.36Current price is: £675.36. £810.43 (Inc. VAT)
999 in stock
Product code: HI-6221-02

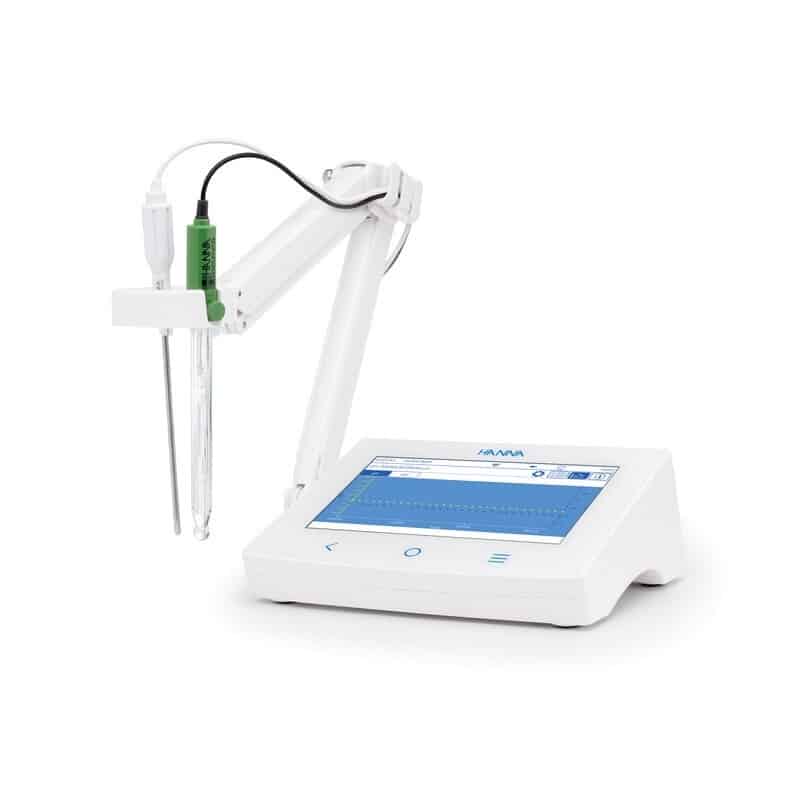

The HI-6221 Advanced Benchtop Meter for pH and ORP is a laboratory-grade solution for accurately measuring key parameters in a wide range of samples. This laboratory pH meter includes WiFi and ethernet connectivity, on-screen tutorials and five different viewing modes during measurement for flexibility and efficiency in testing pH and ORP.
The HI-6221 pH and ORP Meter from Hanna Instruments is a modern, efficient solution for benchtop measurements within laboratories. This sleek, practical laboratory-grade meter includes multiple time-saving features, including on-screen tutorials, practical data transfer over WiFi and ethernet and a user-friendly interface for ease of use.
This research-grade pH and ORP meter is supplied with the Hanna HI-1131B double junction combination pH electrode, a glass-bodied refillable pH electrode that is made from high-temperature glass to provide accurate, reliable pH measurement across a wide range of samples, including metals and samples that have elevated temperatures.
The HI-7662-TW temperature probe is also supplied with the HI-6221 ORP and pH meter, allowing for the automatic compensation of pH measurements for exceptional accuracy and repeatability.
| Technical Data | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| pH | |||||||||||||||||||||||
| Range | 2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH | ||||||||||||||||||||||
| Resolution | 0.1 pH; 0.01 pH; 0.001 pH | ||||||||||||||||||||||
| Accuracy | ±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit) | ||||||||||||||||||||||
| mV | |||||||||||||||||||||||
| Range | ±2000.0 mV | ||||||||||||||||||||||
| Resolution | 1 mV; 0.1 mV | ||||||||||||||||||||||
| Accuracy | ±0.2 mV ±1 last significant digit | ||||||||||||||||||||||
| Temperature | |||||||||||||||||||||||
| Range | -20.0 to 120.0 °C; -4.0 to 248.0 °F; 253.0 to 393.0 K | ||||||||||||||||||||||
| Resolution | 0.1 °C / 0.1 °F / 0.1 K | ||||||||||||||||||||||
| Accuracy | ±0.2 °C / ±0.4 °F / ±0.2 K | ||||||||||||||||||||||
| Relative mV offset range | ±2000.0 mV | ||||||||||||||||||||||
| pH Calibration | |||||||||||||||||||||||
| Calibration points | Up to 5 | ||||||||||||||||||||||
| Type | Automatic; Semiautomatic; Manual | ||||||||||||||||||||||
| Standard buffers | Hanna and NIST – pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 | ||||||||||||||||||||||
| Custom buffers | Up to 5 | ||||||||||||||||||||||
| Custom group | Up to 5 | ||||||||||||||||||||||
| 1st calibration point | Offset or Points (user setting) | ||||||||||||||||||||||
| Reminder | Disabled; Daily: 0 min. to 23 hours and 59 min; Periodic: 1 min. to 500 days, 23 hours and 59 min. | ||||||||||||||||||||||
| Temperature Compensation | Automatic or Manual | ||||||||||||||||||||||
| Reading | |||||||||||||||||||||||
| Modes | Direct; Direct/Autohold | ||||||||||||||||||||||
| Stability criteria | Accurate; Medium; Fast | ||||||||||||||||||||||
| Isopotential | 7.000 or 4.010 | ||||||||||||||||||||||
| Sampling rate | 1000 ms | ||||||||||||||||||||||
| pH View | |||||||||||||||||||||||
| Basic | Measurement (pH, mV, Rel.mV, Abs.mV) Temperature, Stability status | ||||||||||||||||||||||
| Simple GLP | Basic view information; Last calibration date, electrode offset, average slope, and electrode condition | ||||||||||||||||||||||
| Full GLP | Simple GLP information and calibration point details Table Measurements updated every second are displayed in table Graph (Plot) pH (or mV) and temperature versus time graph can be panned or zoomed (pinch-to-zoom technology) | ||||||||||||||||||||||
| Logging | |||||||||||||||||||||||
| Number of records | 50,000 maximum per file; Stores at least 1,000 ,00 data points per user | ||||||||||||||||||||||
| Automatic interval | 1, 2, 5, 10, 30 seconds; 1, 2, 5, 10, 15, 30, 60, 120, 150, 180 minutes | ||||||||||||||||||||||
| Sample ID | Incremental mode | ||||||||||||||||||||||
| Export option | .csv file format | ||||||||||||||||||||||
| Users | Up to 9 users and admin. account (default) | ||||||||||||||||||||||

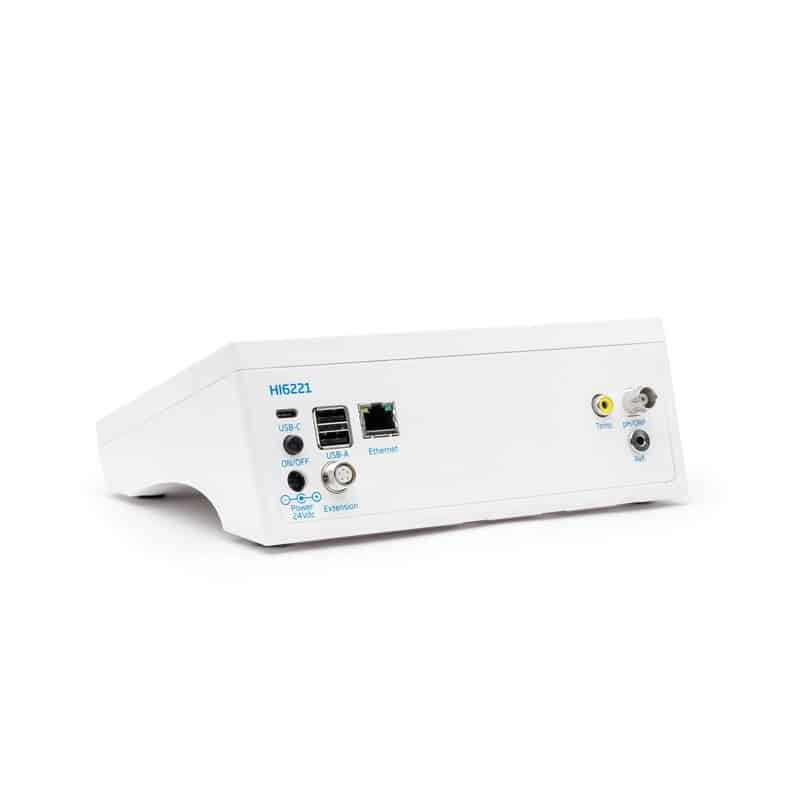

| Connectivity | |||||||||||||||||||||||
| USB-A | 2 ports for keyboard input or USB thumb drive | ||||||||||||||||||||||
| USB-C | 1 port for PC connectivity and USB-C type thumb drive | ||||||||||||||||||||||
| WiFi & Ethernet | FTP; Web server Log transfer and download; Email | ||||||||||||||||||||||
| RS232 | Connecting peripherals | ||||||||||||||||||||||
| Power Supply | DC adapter 100-240AC to 24VDC 2.5A | ||||||||||||||||||||||
| Environment | 0 – 50 °C / 32 – 122 °F / 273 – 323 K maximum 95% RH non-condensing | ||||||||||||||||||||||
| Dimensions | 205 x 160 x 77 mm (8.0 x 6.2 x 3.0 “) | ||||||||||||||||||||||
| Weight | Approximately 1.2 kg (26.5 lbs.) | ||||||||||||||||||||||
| Ordering Information | HI-6221 is supplied with HI-1131B pH electrode; HI-7662-TW temperature probe; pH calibration starter kit consisting of: pH 4.01 buffer solution sachet (2 pcs.); pH 7.01 buffer solution sachet (4 pcs.); pH 10.01 buffer solution sachet (2 pcs.); HI-700601 electrode cleaning solution sachet (2 pcs.); HI-7082 3.5M KCl electrolyte solution (30 mL); HI-764060 electrode holder; capillary pipette; 24 VDC power adapter; USB-C to USB-A cable; quick reference guide with instrument quality certificate. | ||||||||||||||||||||||
