£1,428.00 £1,713.60 (Inc. VAT)

Product Description

Gascoseeker 2-500

Overview

Built on the success of the robust and reliable Gascoseeker MK2
,
the Gascoseeker 2-500 is the UK gas industry standard instrument
for measuring % LEL and % volume flammable hydrocarbons,
with over 20,000 instruments in use in the UK gas industry.

The two-button operation means the Gascoseeker 2-500 is easy to use
and operator training can be conducted quickly.
The rugged design allows the Gascoseeker 2-500 to be used in harsh environments.
The Gascoseeker 2-500 is also fully compatible with our range of calibration software
and equipment.

Key Features

—¾Gas industry standard product
—¾Automatic range selection
—¾Simple operation – extreme reliability
—¾Rugged construction (sealed to IP54)

Applications

—¾Leak detection
—¾Bar hole survey
—¾Petroleum installations
—¾Gas escape detection

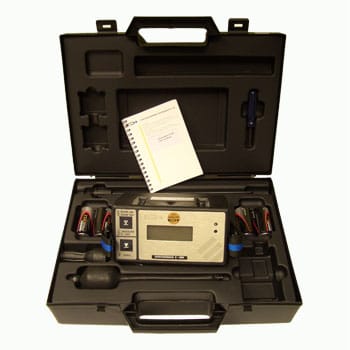

Full Kit Package includes:

—¾Gascoseeker 2-500 Instrument (12212)
—¾G500 Carry Case (13405)
—¾4mm Hex Driver (12451)
—¾Aspirator Bulb Assembly (12290)
—¾30mm Harness Assembly (12370_2)
—¾LR20 Alkaline Batteries x 4 (10278)
—¾28cm Plastic Probe – Open End (12394)
—¾80cm Plastic Probe – Solid End (12393)
—¾Probe Handle Assembly c/w Sample Line & Filters (12395)
—¾Cotton Filters – 2 Boxes of 10 (10077)
—¾User Handbook (42476)
—¾Instruction Card (13889)

CERTIFICATION

IEC……..Ex ia d IIC T4 Gb

ATEX…..Ex II 2G Eex ia d IIC T4

UL913….Class 1 Div 1 Groups ABCD
CSA…….Class 1 Groups ABCD T4
MED……(0038/YY) Modules B & E, A.1/3.30

CE

Measuring Ranges

LEL 0 – 100%
VOL 0 – 100%

Environment

Humidity:0 – 95% RH non-condensing
Temperature:-20oC to +50oC (-4oF to +122oF

Sampling System

Integral pump with flow fail sensor
Sample path is protected by a
hydrophobic filter and automatic pump switch-off

Power Supply

Alkaline: 4 €˜D€™ size cells
Approx. 15 hours€™ run-time

Enclosure

Moulded polypropylene case

IP Rating IP54

Physical Properties

Dimensions:
180 (H) x 95 (W) x 105 (D) mm
7.1 (H) x3.7 (W) x 4.1 (D) in

Weight:
1.7 kg (3.75lbs) with alkaline batteries
