Product Description

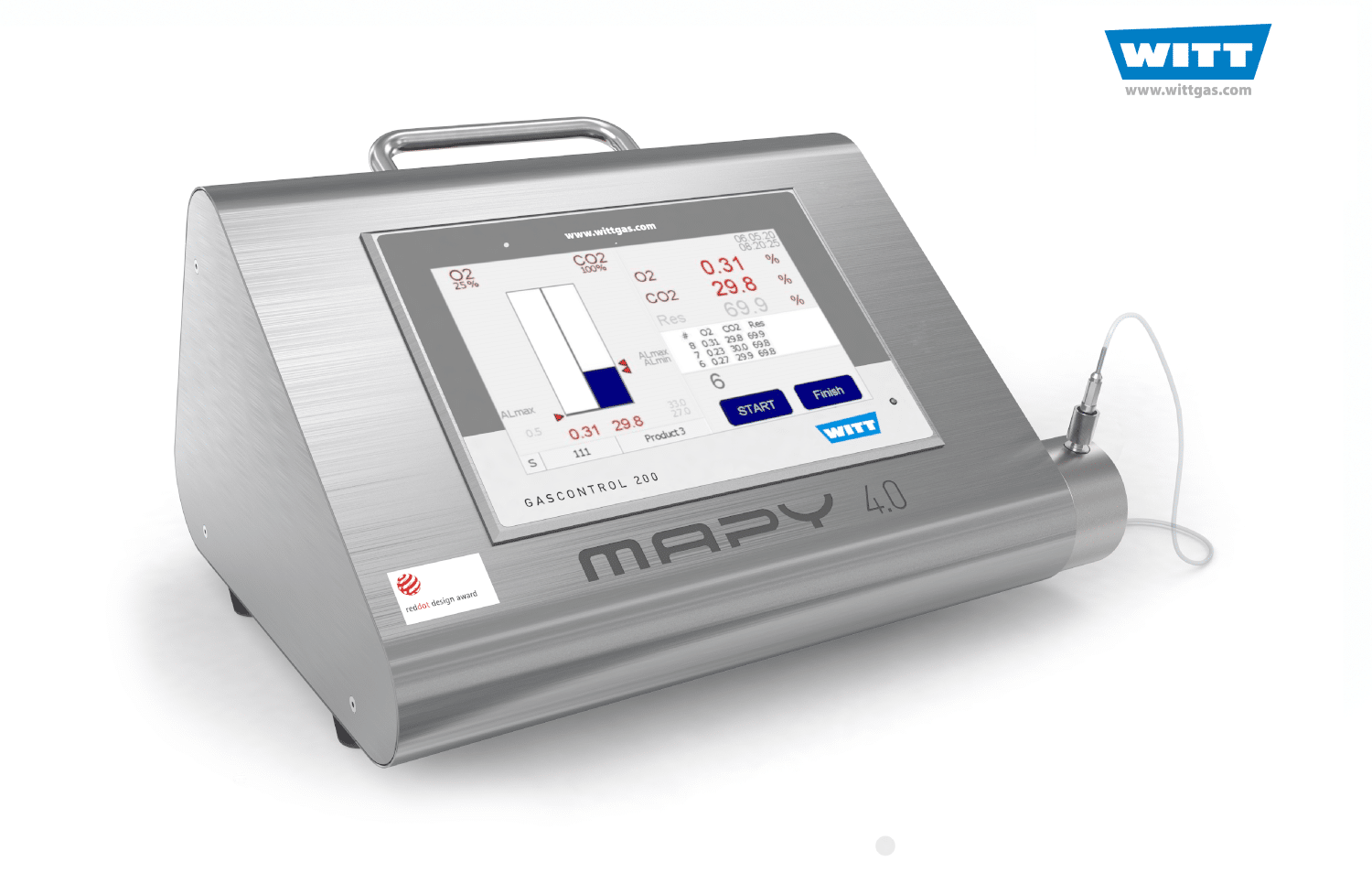

Gas Analyser MAPY 4.0

Premium gas analyser for O2, CO2 or O2/CO2, various applications

  • sample and inline analysis possible
  • ideal for controlling MAP-packages
  • fast and precise analysis technology
  • alarm signal is triggered when tolerance limits exceeded
  • Ethernet-interface for integration into company networks
  • easy operation via touchscreen
  • optimal for standardisation of the workflow


Analysing System for the monitoring of protective atmospheres in food packaging (MAP).
For continuous analysis (inline) and also intermittent sampling via a needle e.g. from food packs. A flexible analyser to guarantee quality and productivity of production processes. Available as a single or double analyser for carbon dioxide and oxygen.

Benefits :

  • minimum sample gas required for analysis of smallest volumes (e.g. food packaging) fast response time
  • fast measuring results of sampling
  • simple to operate via touchscreen
  • simple calibration of sensor
  • permanent monitoring of set limit values
  • alarm signals are given if the set limits are exceeded and a potential-free contact operates to e.g. auto-stop your machine to avoid quality problems
  • easy-to-clean stainless steel housing for maximum hygiene, splash-proof
  • USB connection for file transfer by USB memory stick
  • Ethernet connection for network integration
  • internal audible alarm
  • measured data storage
  • administration of product names
  • user management for measurement personalisation


  • fully automatic calibration
  • software GASCONTROL CENTER for recording of results (see separate data sheet)
  • plug set for external connection of signals
  • model for higher inlet pressures
  • bar code scanner for product names or user selection

Click here for – MAPY 4.0 Data Sheet

Technical Data

Click here for – Map Packing Solutions

Technical Data
