£145.00 £174.00 (Inc. VAT)

Product Description

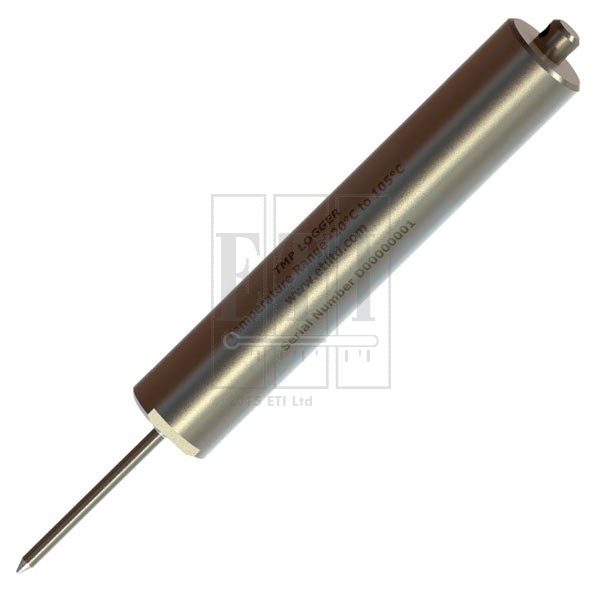

ETI Stainless Steel ThermaData Logger 200mm probe

Product code: 294-933



Stainless Steel ThermaData® Pro data logger range – ideal for food, pharmaceutical and other high temperature applications.

  • Integral USB interface for setup and download
  • Auto PDF summary
  • high temperature range -20 to 125°C
  • 6 probe options available
  • UKAS 3 point certificate available at extra cost



Description

Stainless steel data-loggers that are ideal for food, pharmaceutical and other applications where a high temperature data-logger is required.
The Stainless steel ThermaData® logger is housed in a water resistant, food grade 316 stainless steel case to protect the logger from corrosion, impact and moisture (IP67).

The ThermaData® logger software allows the user to programme the logging sample/interval rate (1 to 255 minutes), the real-time clock, °C/°F, delayed start (maximum 23 hours, 59 minutes) and a 12-character user ID.
The software also incorporates a password protected calibration adjustment feature that allows the user to check the calibration of loggers and make minor adjustments 0.5 °C (±3 °C).

By selecting continuous logging in the software options, it is possible to start the ThermaData® logger only once and never have to reset its parameters again, even if downloaded regularly.
Unlike most low cost loggers, the ThermaData® stainless steel data logger will continue recording during and after downloading the data.

The Stainless Steel Pro is available in six options;

  • without a probe
  • Ø3.3 x 50 mm penetration probe
  • Ø4.5 x 100 mm
  • Ø4.5 x 150 mm
  • Ø4.5 x 200 mm penetration probe
  • Ø1.8 x 20 mm fast response probe

In addition to the five standard options there is also a Ø1.8 x 20 mm fast response probe variant which is ideal for applications which require a fast ambient reading ie. Dishwashers. Each logger is supplied with a one metre USB-C lead.

Each logger is supplied with a two metre USB lead and ThermaData® logger software.

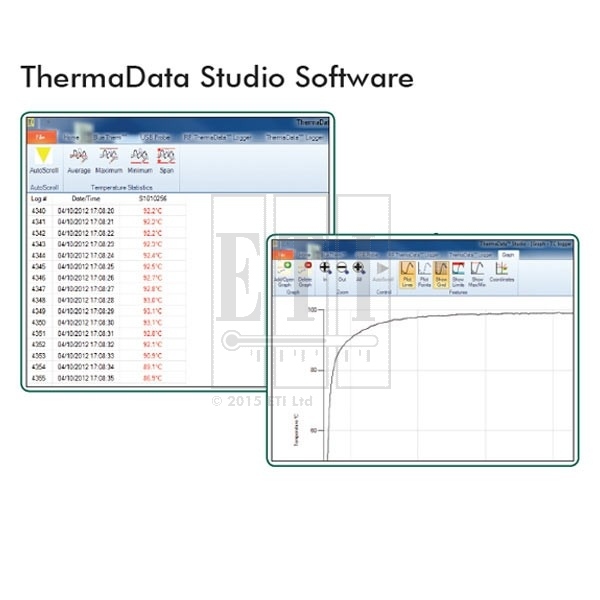

ThermaData® logger PC software

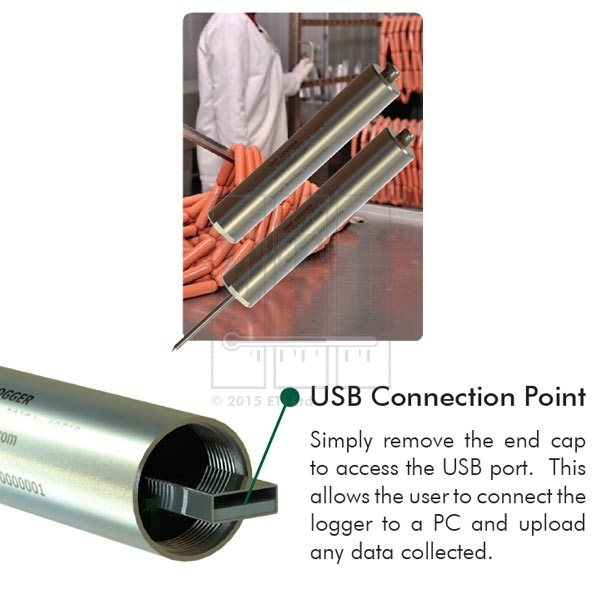

The ThermaData® logger is connected to a PC via the internal USB connector or a USB lead (supplied). By selecting the relevant icon the data can be downloaded and displayed either as a graph, table or summary.
The user can also set, within the software, high and low alarm values for a specific application.
The information can then be analysed by zooming in, storing to disc or exporting to other software packages.

Technical Data
Specification Stainless Steel ThermaData® data logger
Range -20 to 105 °C
Operating range -20 to 105 °C
Resolution 0.5 °C
Accuracy ±1 °C (±0.5°C with calibration utility)
Memory 2048 readings
Sample rate 1 to 255 minutes
Battery 3.6 volt half AA lithium
Battery life 3 years minimum
Dimensions 130 x 22 mm ( exc probe )
Weight 45 grams

EAN Code:5024368156877
