£120.00 £144.00 (Inc. VAT)

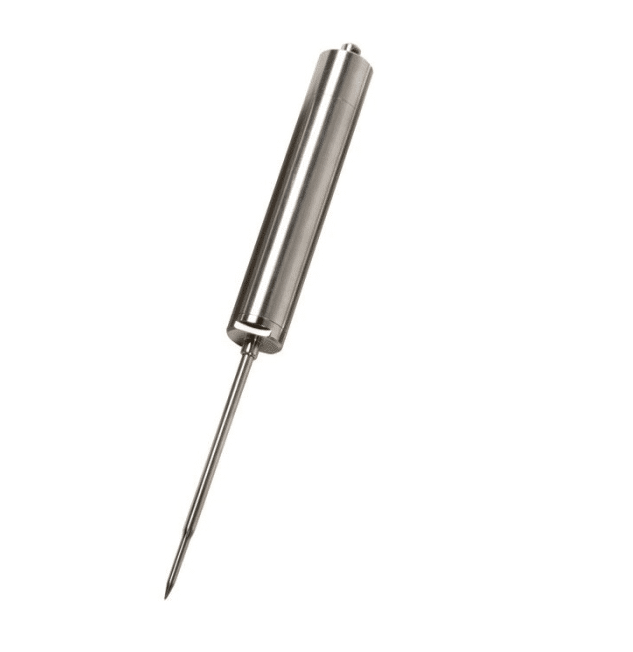

Stainless Steel ThermaData Logger with 100mm length probe
Stainless Steel ThermaData® data logger range.
– ideal for food, pharmaceutical
high temperature applications.
Stainless steel data-loggers that are ideal for food, pharmaceutical and other applications where a high temperature data-logger is required.
The Stainless steel ThermaData® logger is housed in a water resistant, food grade 316 stainless steel case to protect the logger from corrosion, impact and moisture (IP67).
The ThermaData® logger software allows the user to programme the logging sample/interval rate (1 to 255 minutes), the real-time clock, °C/°F, delayed start (maximum 23 hours, 59 minutes) and a 12-character user ID.
The software also incorporates a password protected calibration adjustment feature that allows the user to check the calibration of loggers and make minor adjustments 0.5 °C (±3 °C).
By selecting continuous logging in the software options, it is possible to start the ThermaData® logger only once and never have to reset its parameters again, even if downloaded regularly.
Unlike most low cost loggers, the ThermaData® stainless steel data logger will continue recording during and after downloading the data.
Five models of the stainless steel ThermaData® loggers are available, one with with internal sensor and four with optional standard fixed probe dimensions of :
—¾Ã˜4.4 to Ã˜3.3 mm tip x 50 mm probe
—¾Ã˜4.4 to Ã˜3.3 mm tip x 100 mm probe
—¾Ã˜4.4 to Ã˜3.3 mm tip x 150 mm probe
—¾Ã˜4.4 to Ã˜3.3 mm tip x 200 mm probe
Other probe lengths are possible – please contact our sales office for a customised quote.
Each logger is supplied with a two metre USB lead and ThermaData® logger software.
ThermaData® logger PC software
The ThermaData® logger is connected to a PC via the internal USB connector or a USB lead (supplied). By selecting the relevant icon the data can be downloaded and displayed either as a graph, table or summary.
The user can also set, within the software, high and low alarm values for a specific application.
The information can then be analysed by zooming in, storing to disc or exporting to other software packages.
|Specification||Stainless Steel ThermaData® data logger|
|Range||-20 to 105 °C|
|Operating range||-20 to 105 °C|
|Accuracy||±1 °C (±0.5°C with calibration utility)|
|Sample rate||1 to 255 minutes|
|Battery||3.6 volt half AA lithium|
|Battery life||3 years minimum|
|Dimensions||130 x 22 mm ( exc probe )|
