£103.50 £124.20 (Inc. VAT)

Product Description

Infra-red thermometer kit – RayTemp 8

Product code: 860-845

  • two thermometers in one
  • includes differential & average temperatures
  • target ratio 12:1 pocket-sized & simple to use
  • range IR -60 to 500°C
  • range  probe -64 to 1370°C

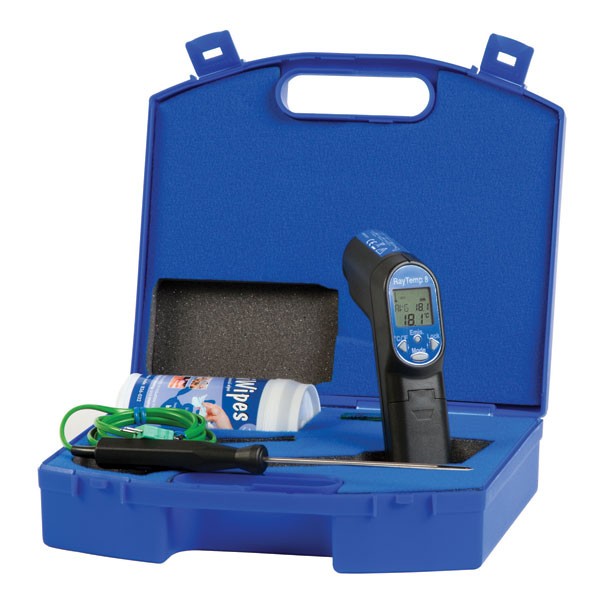

Infrared thermometer kit that contains the RayTemp 8 infrared thermometer together with a penetration probe and wipes.
Each infrared thermometer kit is supplied in a useful ABS carrying case with a tub of 70 anti-bacterial Probe-Wipes.

Each infrared thermometer kit contains:
1 x 814-045 RayTemp 8 thermometer
1 x 123-160 penetration probe
1 x 836-032 One tub UniWipes (40)
1 x 834-740 ABS carrying case.

The RayTemp 8 infra-red thermometer is compact, gun-shaped, lightweight and easy to use. Simply aim, press the button and display the temperature of the item being measured.
The LCD display gives a digital read-out of temperature over the range of -60 to 500°C.

This infra-red thermometer incorporates a clear, easy to read, LCD display with low battery indication.
The RayTemp 8 infra-red thermometer incorporates an auto power off facility that turns the instrument off after 60 seconds, maximising battery life.
The infra-red thermometer features a laser dot alignment for ease of use.

The RayTemp 8 features a four-button keypad, allowing the user to select °C/°F and max/min. Additionally, the difference between the maximum and minimum temperature and the average temperature can be displayed.

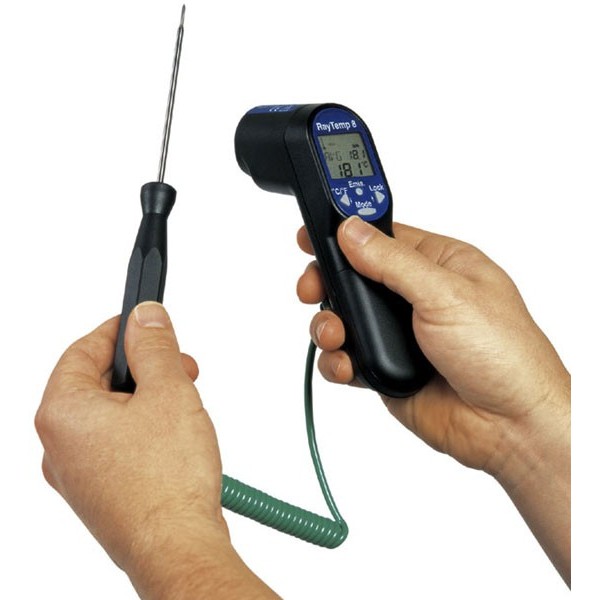

Two instruments in one
The RayTemp 8 infrared thermometer incorporates a miniature thermocouple type K probe socket that enables a wide range of type K thermocouple probes to be used for a variety of temperature measurement applications, including air, liquid and surface temperatures.
For details of compatible type K thermocouple probes, please see Temperature Probe Section

Technical Data
Specification RayTemp 8 Infrared Thermometer Kit
Infrared Range -60 to 500°C
Probe Range -64 to 1370°C
Resolution 0.1°C or °F (-9.9 to 199.9°C) or 1°C
Infrared Accuracy ±2% of reading or ±2°C whichever is greater
Probe Accuracy ±1% of reading or ±1°C whichever is greater
Field of view target ratio 11:1
Emissivity 0.95 default- adjustable 0.10 to 1.00
Battery Type 2 x 1.5 volt AAA
Battery Life 180 hours continuous use
Display custom LCD
Dimensions 39 x 72 x 175mm
Weight 180 grams
