Product Description

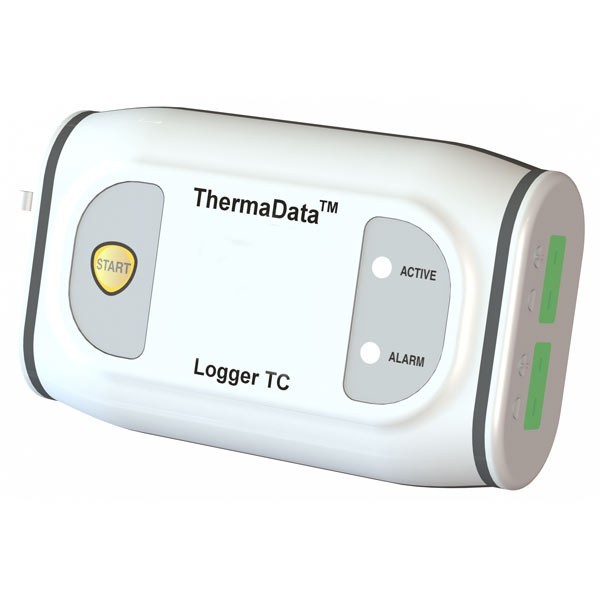

Thermocouple ThermaData loggers for high temperature applications

Product code: 292-501

Thermocouple ThermaData loggers for high temperature applications

  • water resistant housing offers IP65 protection
  • 2 channel type K or T thermocouple input
  • wide temperature range -100 to 1372°C
  • visual display of high/low alarm status
  • 4 models – blind or LCD, Type K or T
  • meets the European Standard EN 13485
  • FREE traceable calibration certificate (UKAS certificates also available)
  • Thermocouple loggers are sold excluding probe


These two input ThermaData® thermocouple data loggers are housed in a waterproof, ergonomic case that is designed to meet IP66/67 protection.
Two models are available, either blind or with LCD display.

The Thermocouple ThermaData®data loggers measure temperature over the range of -99.9 to 1372 °C with a 0.1 °C resolution, auto-ranging to 1 °C over the range of 300 to 1372 °C.
At programmable intervals the loggers will record the temperature, up to a maximum of 16000 readings or 2 x 8000 readings.

Each logger incorporates a red and green LED, the flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that your customised pre-set alarms have been exceeded.
Each logger is supplied with a USB lead and ThermaData® Studio Software.

ThermaData Studio software

The ThermaData logger is connected to a PC via a serial or USB port lead. By selecting the relevant icon the data can be downloaded and displayed either as a graph, table or summary. The information can then be analysed by zooming in, storing to disc.

USB Connection Point

Simply remove the end cap to access the USB port.
This allows the user to connect the logger to a PC via the USB lead (supplied) and upload the temperature readings collected.

Technical Data
Specification Thermocouple ThermaData® data logger
Range -99.9 to 1372 °C
Operating range -20 to +50 °C
Resolution 0.1 °C to 300 °C thereafter 1 °C
Accuracy ±0.4 °C ±0.1 % of reading
Memory 16000 or 2 x 8000 readings
Sample rate 0.1 to 255 minutes
Battery AA Tadiran – Li-SOCl
Battery life 3 years @ 20 °C
Display 10 mm LCD / 2 LEDs
Dimensions 35 x 67 x 109 mm
Weight 200 grams

EAN Code:5024368156006
