£3,850.00 £4,620.00 (Inc. VAT)

Product Description

Product Details

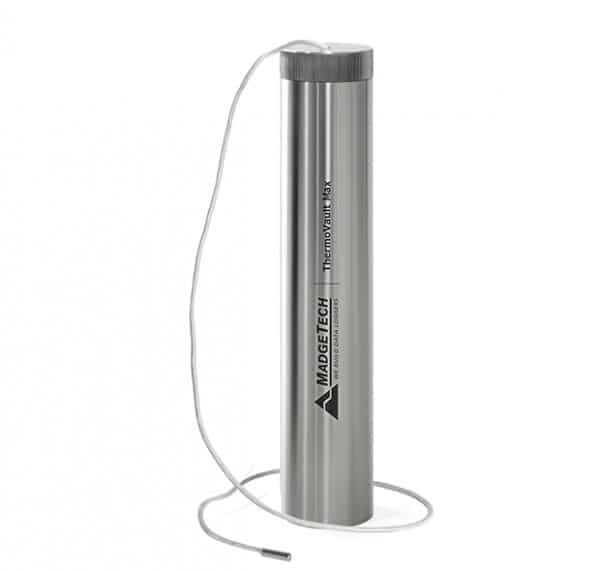

The DHS comprises of a ThermoVault Max thermal shield, HiTemp140 M12 temperature data logger and M12 Depyrogenation probe.

Durable stainless steel thermal shield from MadgeTech enables use of the supplied data logger at temperatures beyond the stated operational range for limited time periods. Please review the associated product brochure for details on the length of time the system can operate at temperatures between -200°C ~ -40°C and +140°C ~ +400°C or contact our sales team for advice.

Market leading solution for precise and validation of time vs temperature in dry heat sterilisation applications

Requires: IFC400 or IFC406 interface along with free issued MT4 software

Dry Heat Sterilization System DS WPLS


Technical Data

HiTemp140 M12 Data Sheet WPLS


Technical Data

M12 Depyro Data Sheet WPLS


Technical Data

ThermoVault Max Data Sheet WPLS


Technical Data

Specification

Technical Data
Manufacturer MadgeTech
Parameter Temperature
Usage Type Multiple
Sensor Internal
Channels 1
Sensor Type 36 inch Glass Braided RTD depyrogenation probe
Memory 43,690 readings
Sample rate 4 readings per second up to 1 reading every 24 hours
Range -200 °C to +400 °C
Accuracy ±1.2 °C (-200 °C to +400 °C)
Resolution >0.0001 O, 0.01 °C (0.02 °F)
Material 316 Stainless Steel, PTFE, Silicone
Baud Rate 125,000
Battery life 2 years typical (1 minute reading rate at +25 °C / +77 °F) User Replaceable Battery
Dimensions 1.75 in OD x 9.6 in L (44.45 mm OD x 243.8 mm L)
Environment IP68
Operating Conditions -200 °C to 400 °C %RH to 95 %RH non-condensing
