Product Description

M Series

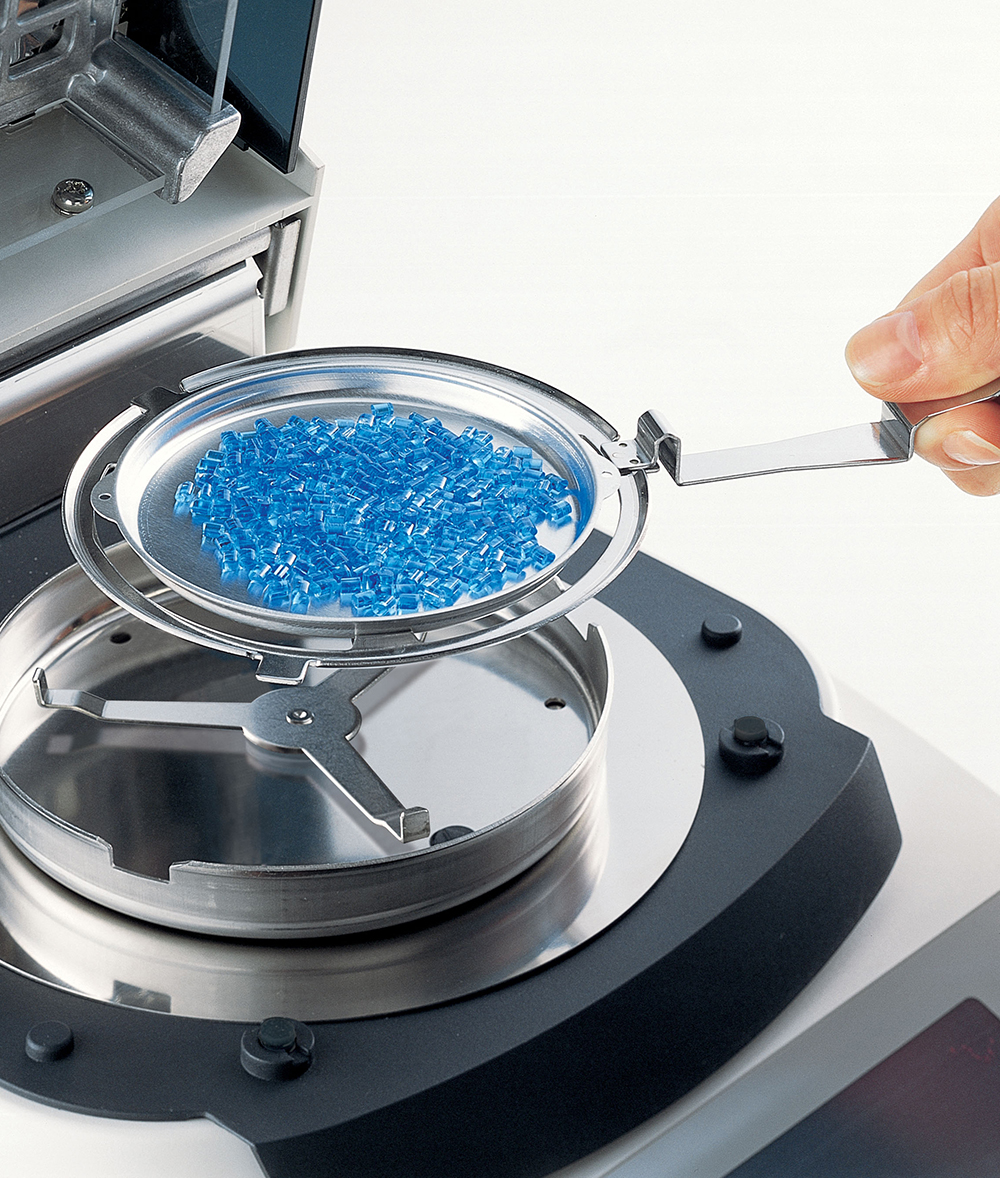

Our straight halogen lamp and uniquely designed SRA (Secondary Radiation Assist) filter gives shorter measurement time, thanks to fast and uniform heating. The ergonomically designed pan handle eliminates mishaps such as burns when moving a hot sample tray into or out of the unit from either side.


The M Series Range

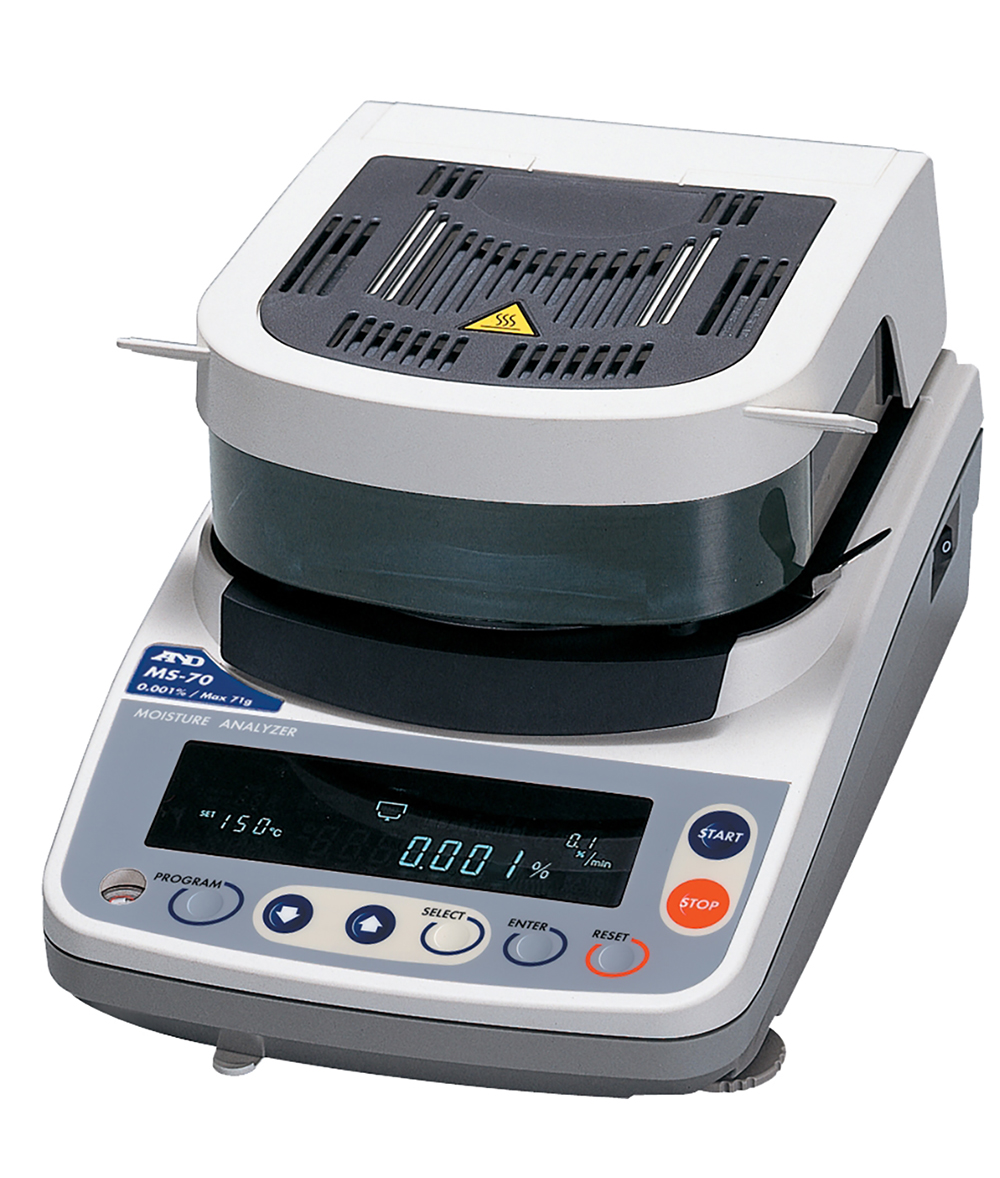

  • MS-70
  • MX-50

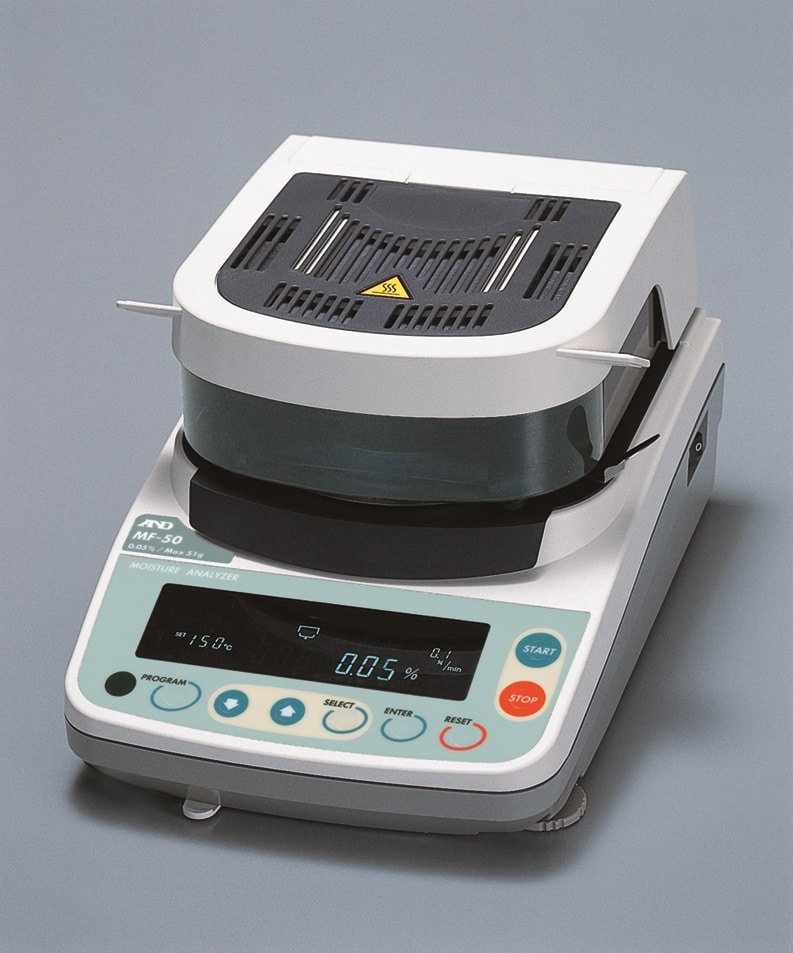

  • MF-50
  • ML-50


Please call to discuss which M Series will work  best for you.



  • Fast and uniform heating with halogen lamp and uniquely designed “SRA” filter that avoids hot spots
  • High repeatability with SHS technology (Super Hybrid Sensor)
  • Sodium Tartrate Dihydrate for accuracy verification
  • Calibration function for the heating temperature with optional MX/MF-OP-43 (for MS & MX)
  • Memory function (to be able to save/recall configurations as well as measurement results)
  • Five measurement programs (standard, automatic, quick, timer and manual mode)
  • Four heating modes (standard, quick, step and ramp mode) (not ML)

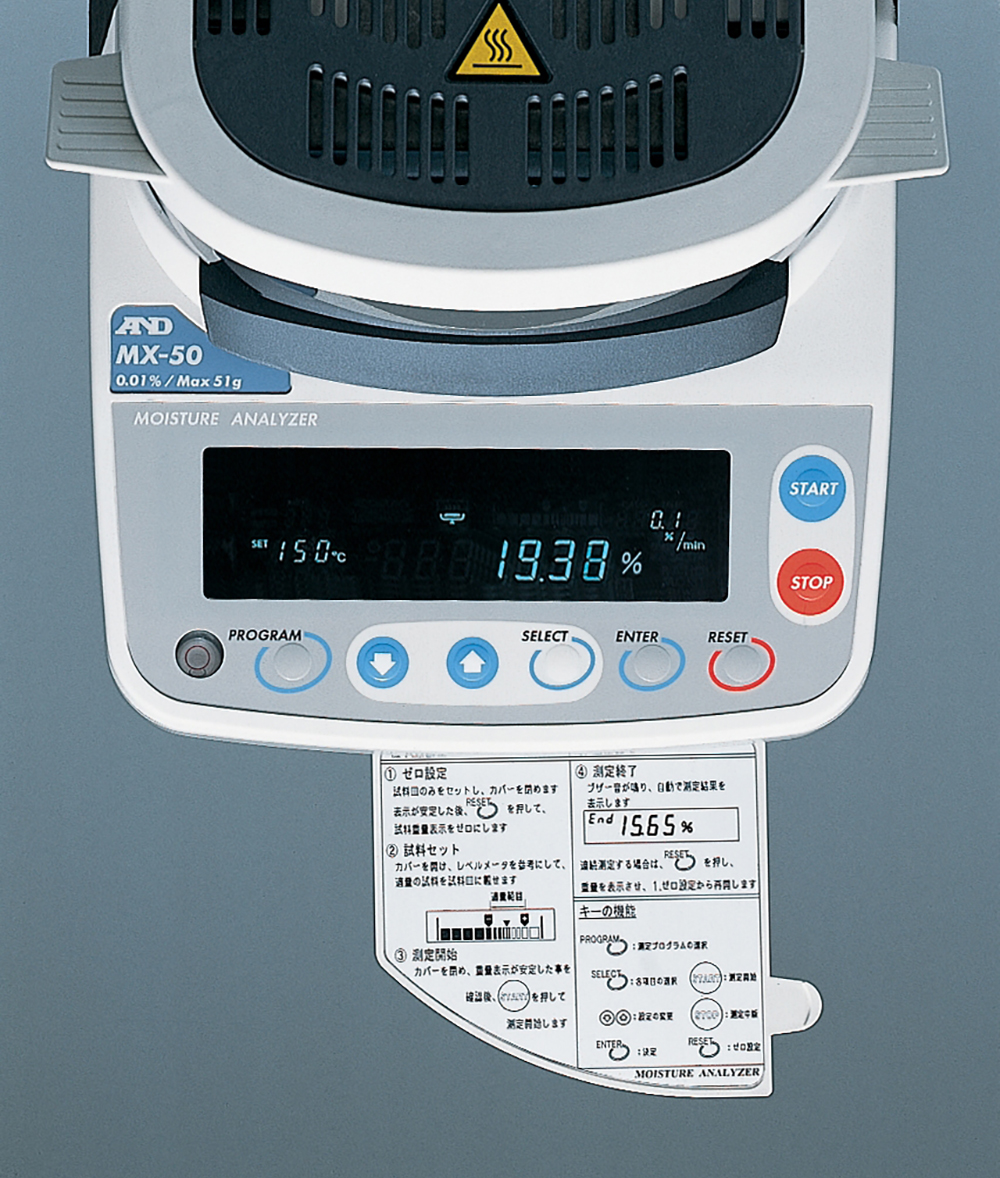

  • Large and easy to read VFD display
  • Standard RS-232C interface
  • Measurement of liquid or solid content



Measurement method 400W straight halogen lamp heating system with SRA-filter and SHS weighing technology
Max. sample weight capacity 71g 51g
Weighing resolution 0.0001g 0.001g 0.002g 0.005g
Moisture content display 0.001%/0.01%/0.1% 0.01%/0.1% 0.05%/0.1%/1% 0.1%/1%
Accuracy over 1g 0.05% 0.10% 0.20% 0.05%
Accuracy over 5g 0.01% 0.02% 0.05% 0.1%
Heating technology Halogen lamp (straight type, 400 Watt, 5000 hours)
Drying temperature 30 — 200°C 50 — 200°C
Measurement programs Standard mode / automatic complete mode / timer mode manual mode / quick m
Units Wet base / dry base / solid content / ratio / weight
Display type Vacuum fluorescent
Sample pan size Ø 85mm



Click here to down load the M Series Brochure
