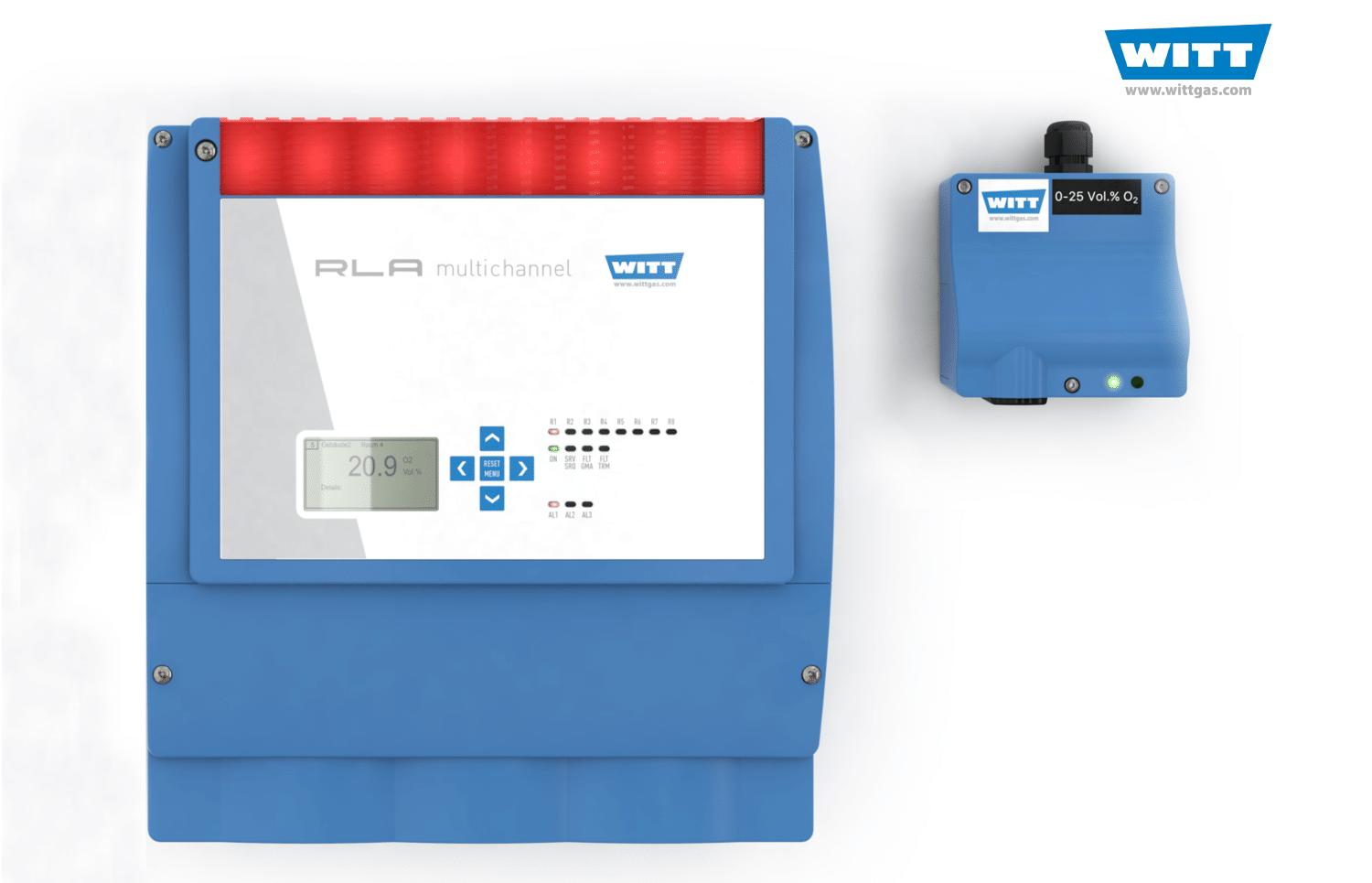

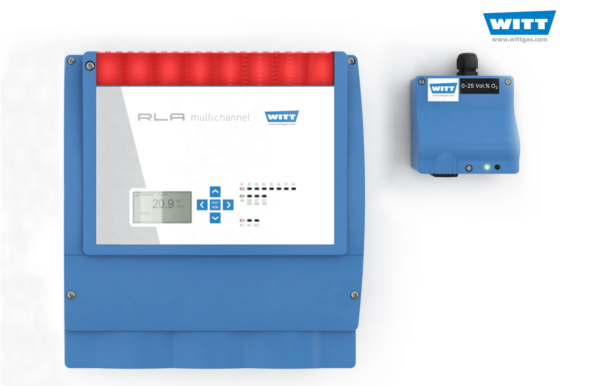

Ambient Air Monitoring System RLA multichannel
Ambient air monitoring for the detection of combustible and toxic gases or oxygen (O2), up to 16 transmitters
- connection of up to 16 transmitters for different gases
- with digital display and LEDs
- 8 internal relays, 6 of them freely programmable
- alarm light and horn
Descriptions
Ambient Air Monitoring System for the detection of combustible and toxic gases or oxygen (O2)
Benefits :
- connection of up to 16 transmitters for different gases
- easy programming of the measurement range, the measurement designation, the type of transmitter and the type of gas can be set individually as well as three alarm thresholds
- 8 internal relays, 6 of them freely programmable
- reliable steady measuring results and high accuracys –
- allocation of one or more measurement points to relay
- single alarm per measurement point
- single alarm per alarm threshold
- configuration of collective alarm and group alarm
- error report and voting function
- large illuminated graphic display with traffic light function for continuous visual monitoring of the gas concentration
- with integrated alarm transmitter (signal light and -audible alarm)
- easy wall mounting
- max. 20 cable glands
- connections for alarm easily accessible on fore front
- Transmitters –
- with status and function display
- long lifetime of sensors
- setting without opening of housing via keystroke
- on site alarm by integrated horn (optionally)
Options:
- 2GB micro SD memory card for saving measurement values, averages, alarm events and errors in individual intervals
- flow-through adapter for sensor check and calibration
Components :
1. Control and Display Unit
2. Transmitter/s
3. Transmitter cable for connecting of Transmitter and Control Unit
Click here for – Ambient Air Monitoring System RLA Data Sheet
