Product Description

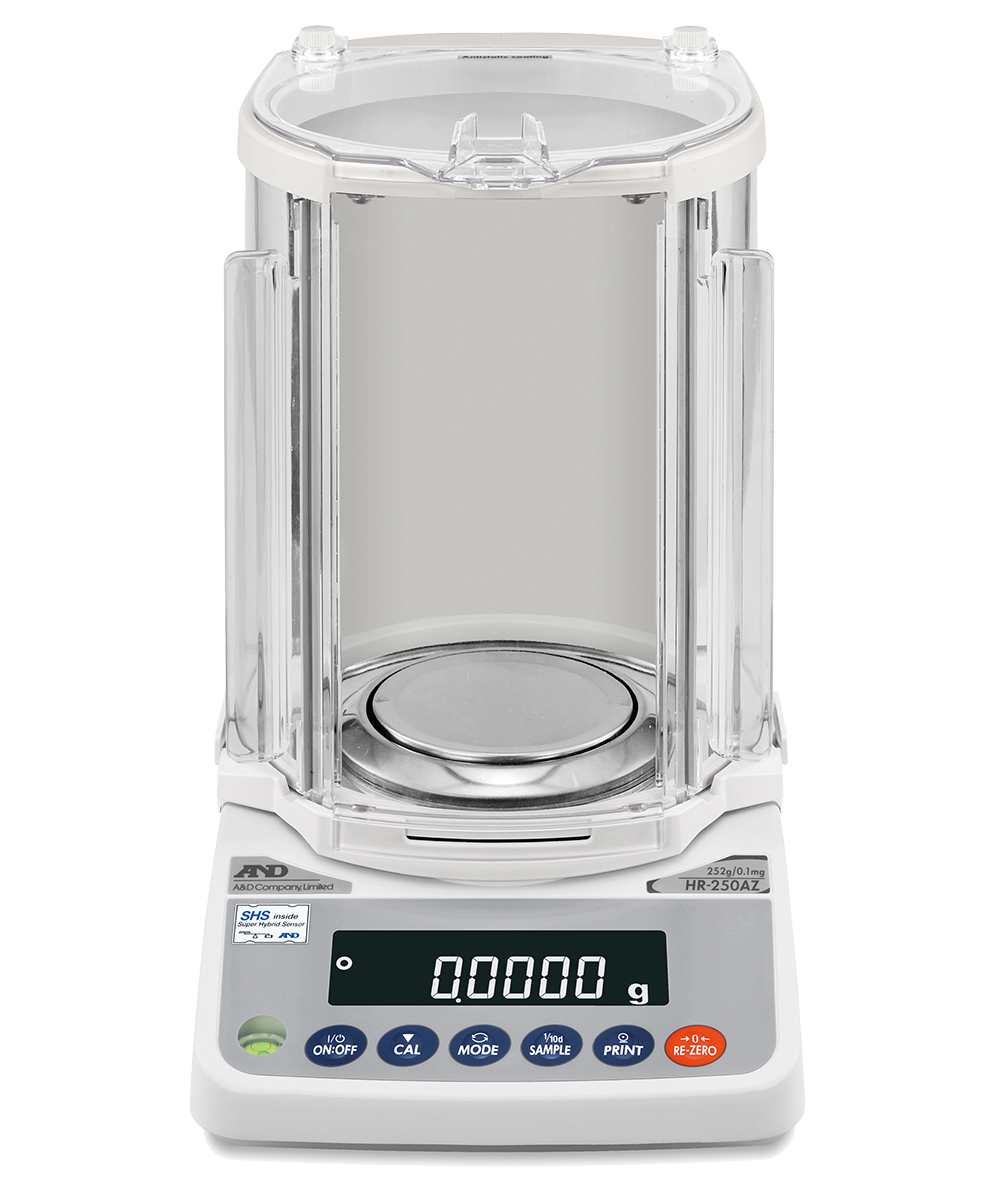

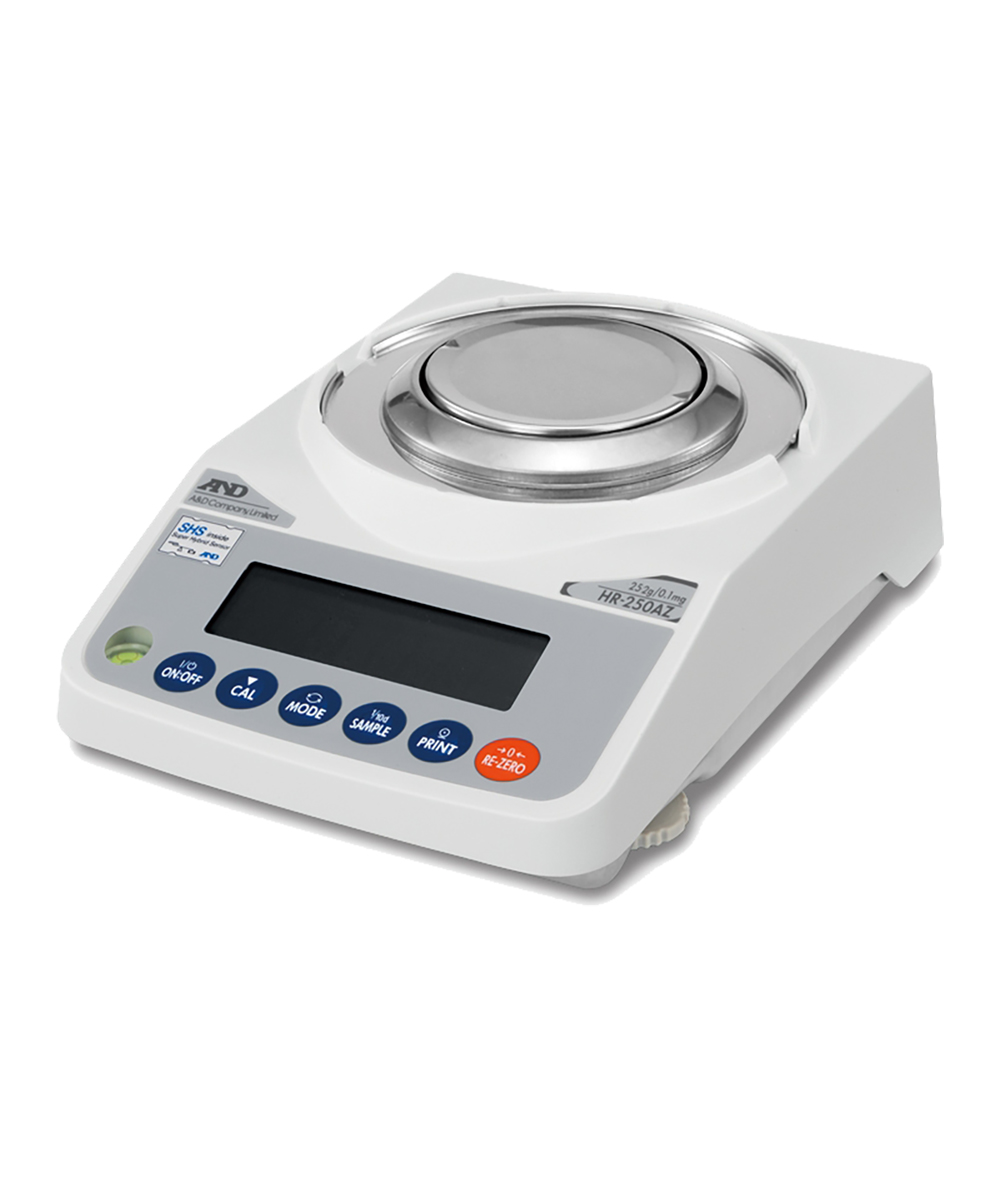

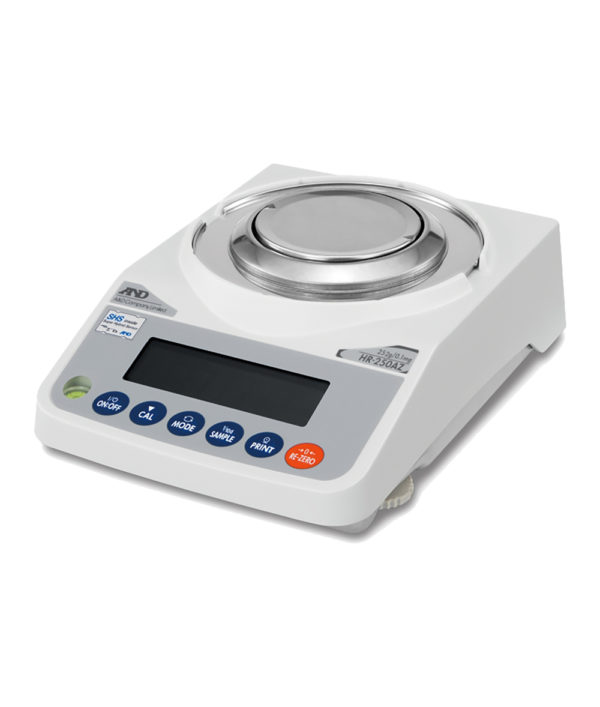

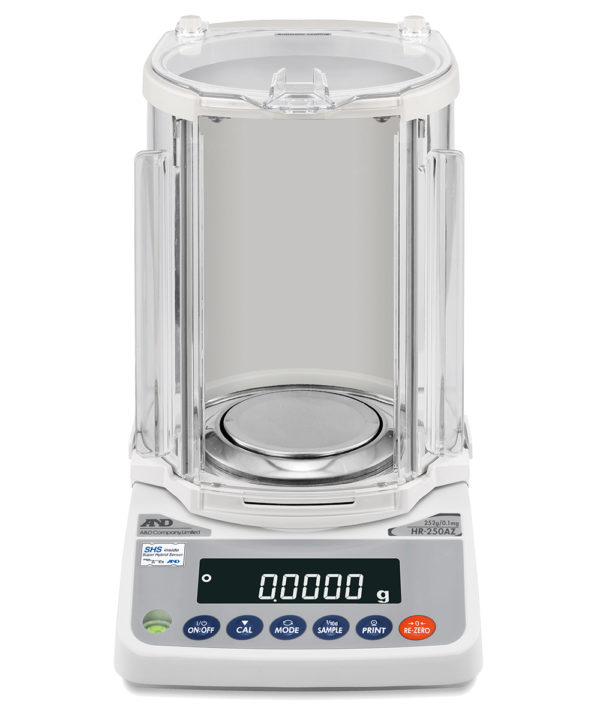

A&D HR-A / HR-AZ Series Scale

The HR-A/-AZ Series are entry-level Compact Analytical Balances with a shatterproof, anti-static draft shield. The rotary doors also give HR-A/Z balances the smallest footprint ever in an A&D analytical (0.1mg) balance.

Highlights

  • Robust construction, strong protection against dust & water
  • Built-in internal calibration at the touch of a button (HR-AZ)
  • Shock absorber function
  • Auto power ON/OFF function
  • B5 size footprint for use in narrow space
  • Reverse backlit LCD display for easy to read weighing results
  • SCF – Statistical calculation function
  • Standard RS-232C
  • Fast compact SHS sensor, response time of about 2 seconds
  • Quick USB interface – no driver installation required (optional)
  • LAN – Ethernet interface with WinCT-Plus software (optional)

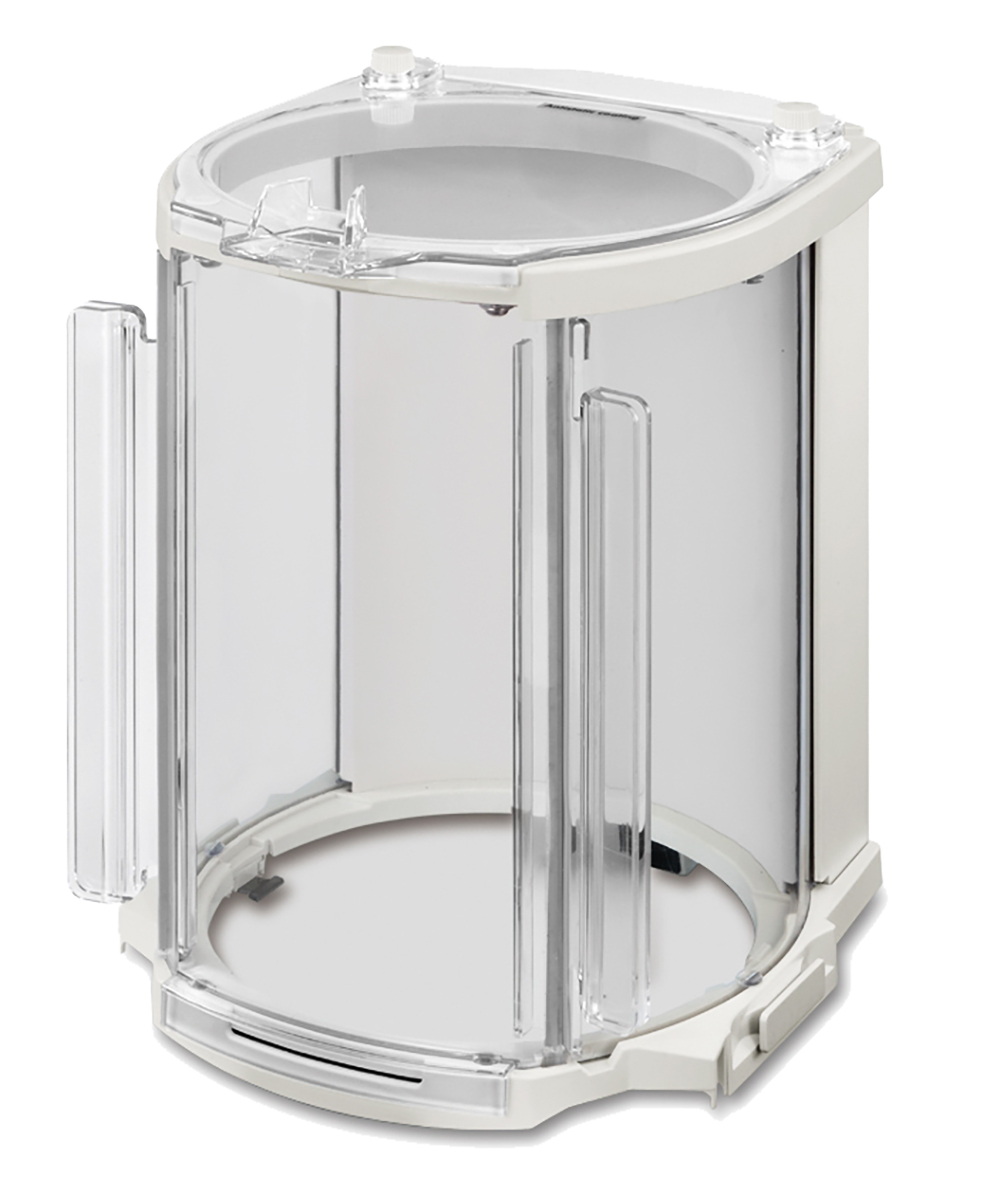

  • Easily removable large breeze break
  • Built-in rechargeable NiMH battery pack (optional)





Technical Spec

MODEL CAPACITY RESOLUTION PAN SIZE
HR-100A 102g 0.1mg Ø 90mm
HR-150A 152g 0.1mg Ø 90mm
HR-251A 62g/252g 0.1mg/1mg Ø 90mm
HR-250A 252g 0.1mg Ø 90mm
HR-100AZ 102g 0.1mg Ø 90mm
HR-150AZ 152g 0.1mg Ø 90mm
HR-251AZ 62g/252g 0.1mg/1mg Ø 90mm
HR-250AZ 252g 0.1mg Ø 90mm



OPTIONS & ACCESSORIES MODEL
Quick USB interface with cable* FXi-OP-02
LAN Ethernet output* FXi-OP-08
NiMH Battery pack* FXi-OP-09
Transparent plastic covers (5 pcs) AX-FX-31i

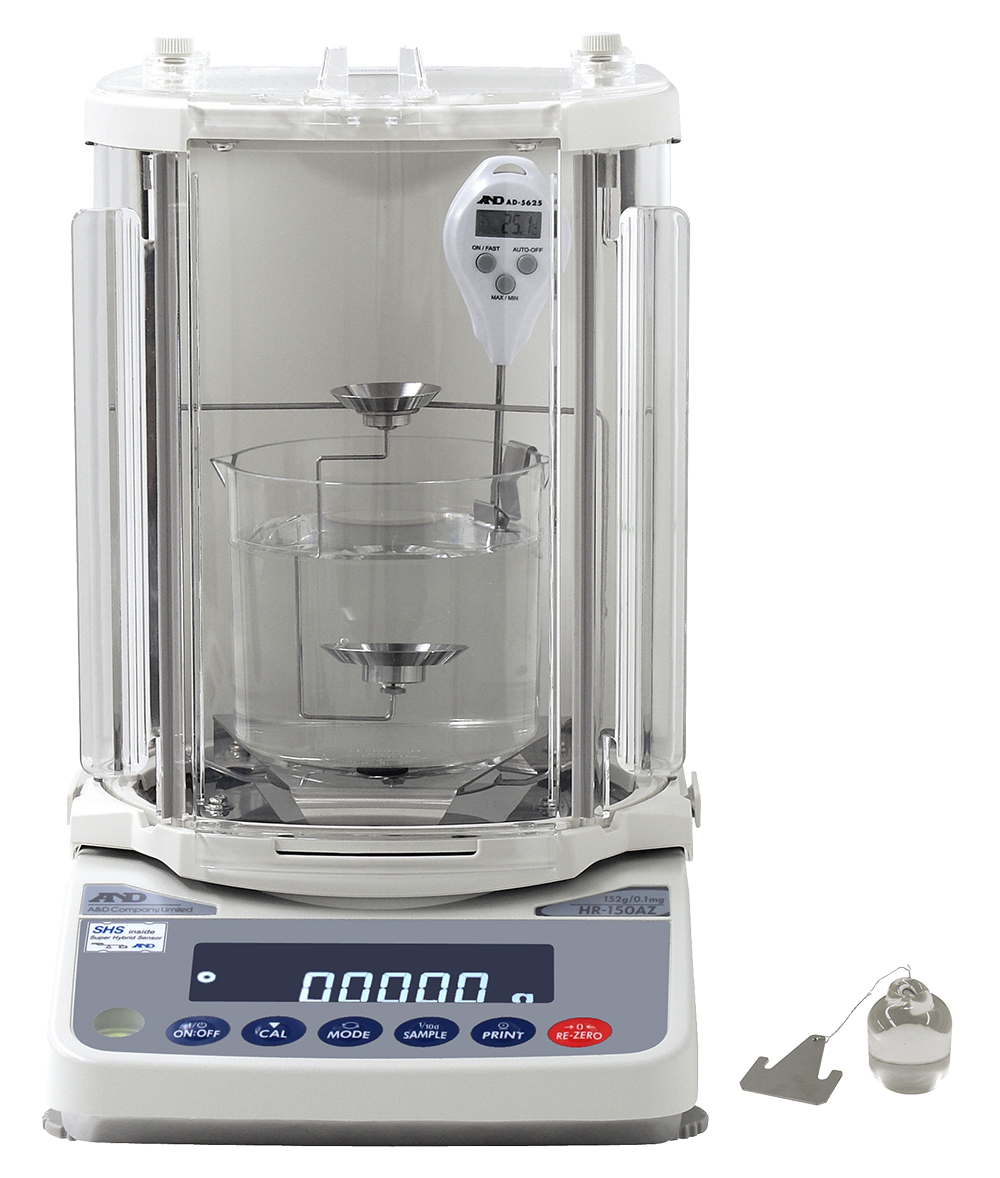

Density measurement kit AD-1654

* OP-02, OP-08 and OP-09 cannot be installed at the same time.
Note: Connectors of optional OP-02, OP-08 and OP-09 are not IP65.






Available Downloads

Click here to download the HR-A.Z Brochure



Click here to download the AD 1654 Density Determination Kit Manual
