Product Description

A&D Apollo Series GX-A & GF-A

With the A&D Apollo series we are taking weighing precision and protection to new heights.
The incorporated advanced technologies provide innovative solutions to the user.
The Electronically Controlled Load (ECL) technology enables users to perform a quick repeatability test internally without the need for an external weight. The entire process takes only 1.5 minutes versus traditional external weight procedures which can take up to 5-10 minutes, ultimately providing greater convenience and efficiency.
Standard deviation is calculated by the Auto Precision Assessment (APA) feature. A&D Apollo smartly performs a diagnostic system check or Dia-Check providing a critical pass or fail indication.

The integrated Impact Shock Detection (ISD) visually indicates the magnitudes of impact shocks that the sensor receives at four different levels. This function provides real-time feedback to the user to prevent damage to the weighing sensor.


  • Wide selection including high-capacity, high-resolution, internal calibration (GX-A) or external calibration (GF-A) models
  • Newly developed Smart SHS weighing sensor featuring ECL technology*2
  • APA – Auto Precision Assessment. Automatic assessment of the balance performance. Calculation and display of Standard Deviation (repeatability) at the point of use without the need for calibration weights! Can be checked daily via a key press.
  • Automatic Minimum Weight Calculation and setting via APA function
  • Input minimum weight automatically via APA or manually using weights
  • Visual Minimum Weight alert
  • UAC – User Access Control, Administrator and Operator password access to ensure data integrity
  • Calibration via One-touch, Interval, pre-set times (3) or automatically in response to ambient temperature changes (GX-A)
  • ISD – Impact Shock Detection*1, 4 level shock detection with visual and audible feedback. Maintain the performance of your investment through correct use of the balance. Ideal in automated loading applications and ideal for operator guidance
  • FRD – Flow Rate Display*2, direct display of flow rate of a sample in g/s, g/m, g/h or volume flow rate in mL/s, mL/m, mL/h. Up to 10 sample densities can be saved to memory. Use in conjunction with the flow Rate Comparator to keep flow rates within designated limits
  • SCF – Statistical Calculation Function, display and print various statistical results on the balance display or output to a printer or PC
  • Standard RS232 and Dual Mode USB interface. USB can be configured for ‘quick’ mode (connect to PC without the need for software installation) or bi-directional mode
  • UFC – Universal Flexi Coms configurable data output, ideal for connection to data acquisition systems or barcode label printers etc.
  • Gross/Net/Tare data output, Tare memory, Underhook, Capacity Indicator
  • Large Glass Breeze Break GXA-10, optional
  • Built in Static Eliminator with Large Glass Breeze Break GXA-17, optional
  • Wide selection of Options and Accessories



Technical Spec

GX-203A-EC 220g 0.001g 0.01g 128 × 128mm
GX-303A-EC 320g 0.001g 0.01g 128 × 128mm
GX-403A-EC 420g 0.001g 0.01g 128 × 128mm
GX-603A-EC 620g 0.001g 0.01g 128 × 128mm

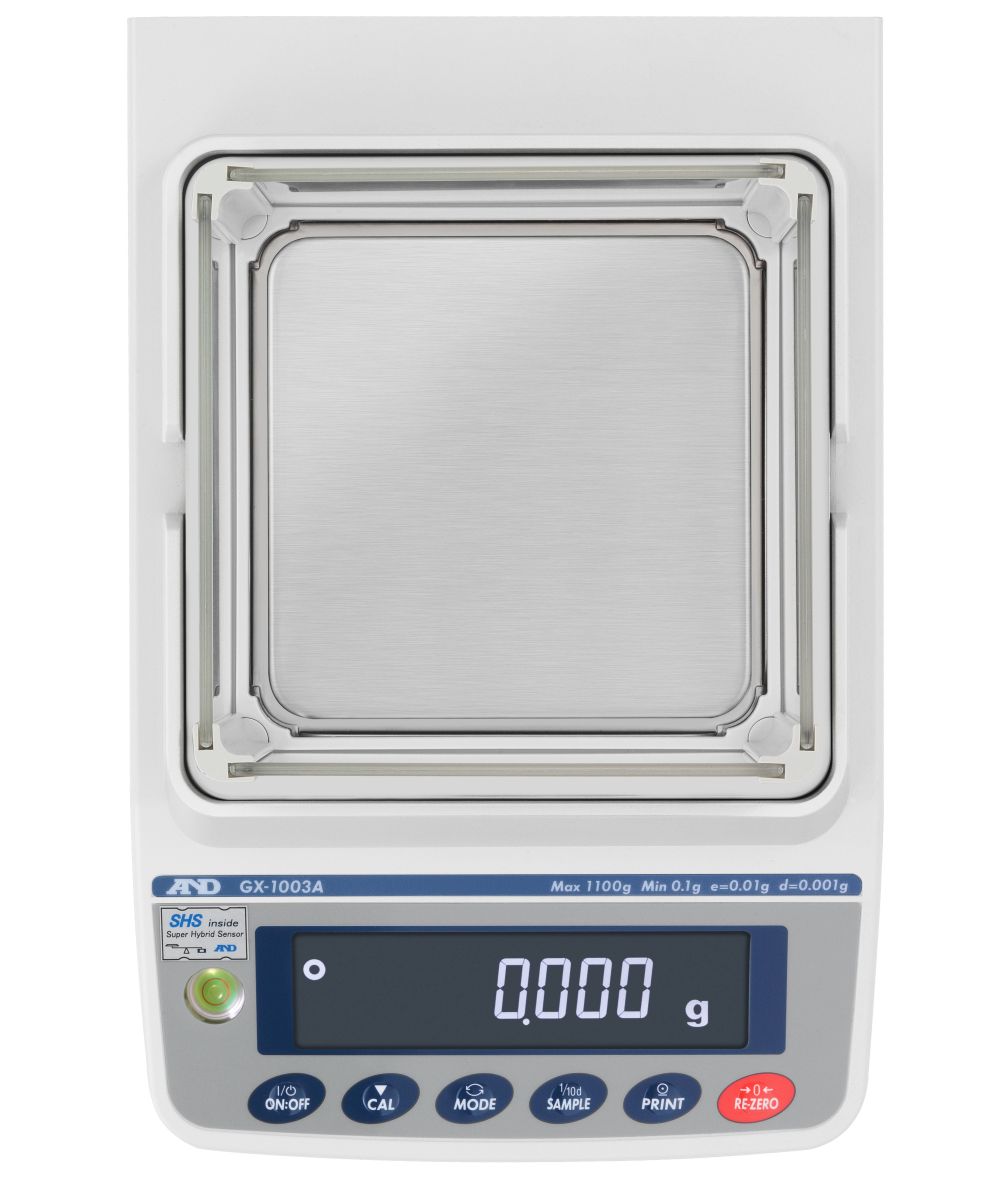

GX-1003A 1100g 0.001g 128 × 128mm
GX-1603A 1620g 0.001g 128 × 128mm
GX-2002A-EC 2200g 0.01g 0.1g 165 × 165mm
GX-3002A-EC 3200g 0.01g 0.1g 165 × 165mm
GX-4002A-EC 4200g 0.01g 0.1g 165 × 165mm
GX-6002A-EC 6200g 0.01g 0.1g 165 × 165mm

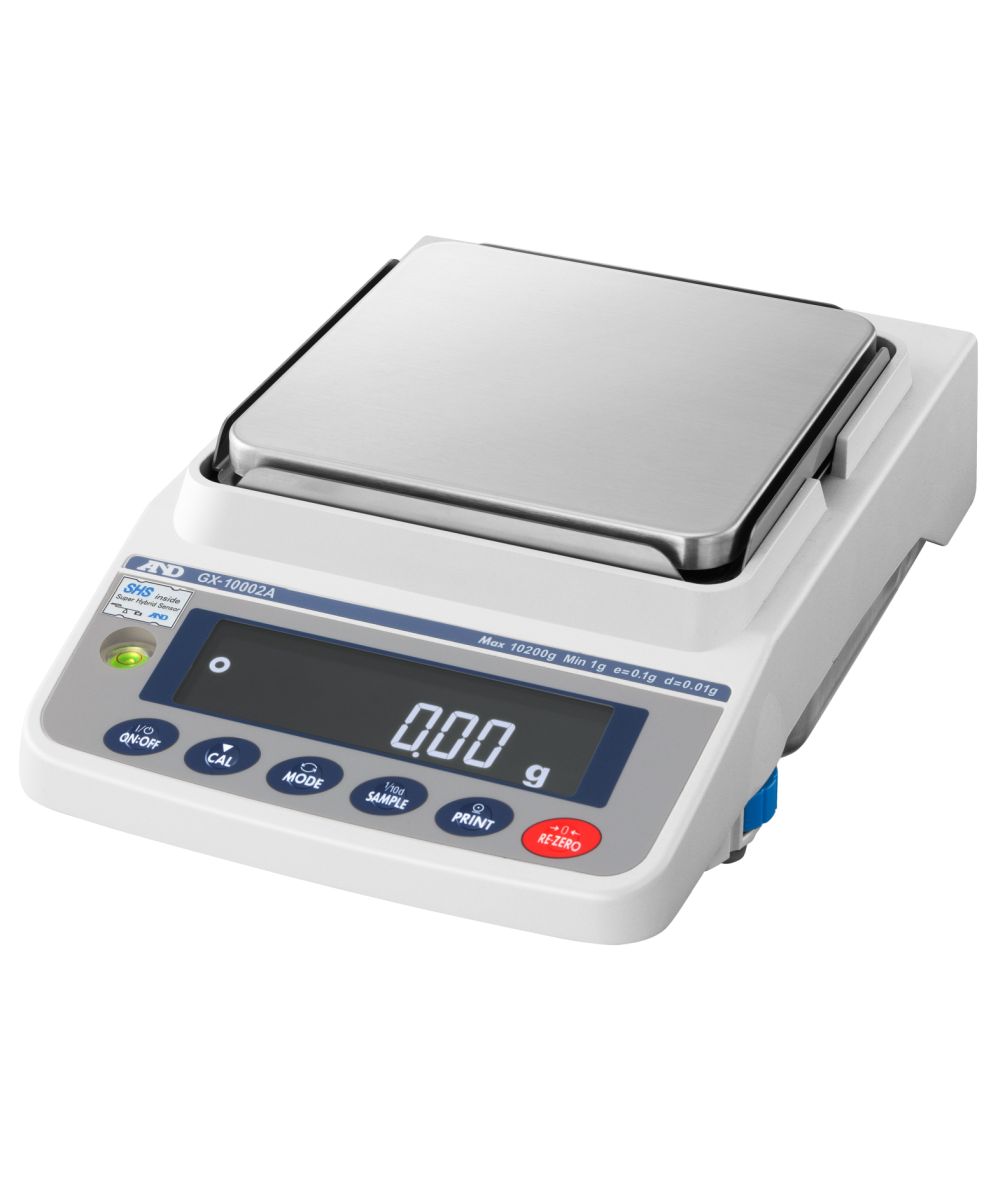

GX-10002A 10200g 0.01g 165 × 165mm
GX-6001A-EC 6200g 0.1g 1.0g 165 × 165mm
GX-10001A 10200g 0.1g 165 × 165mm


GF-123A 122g 0.001g 128 × 128mm
GF-203A 220g 0.001g 128 × 128mm
GF-303A 320g 0.001g 128 × 128mm

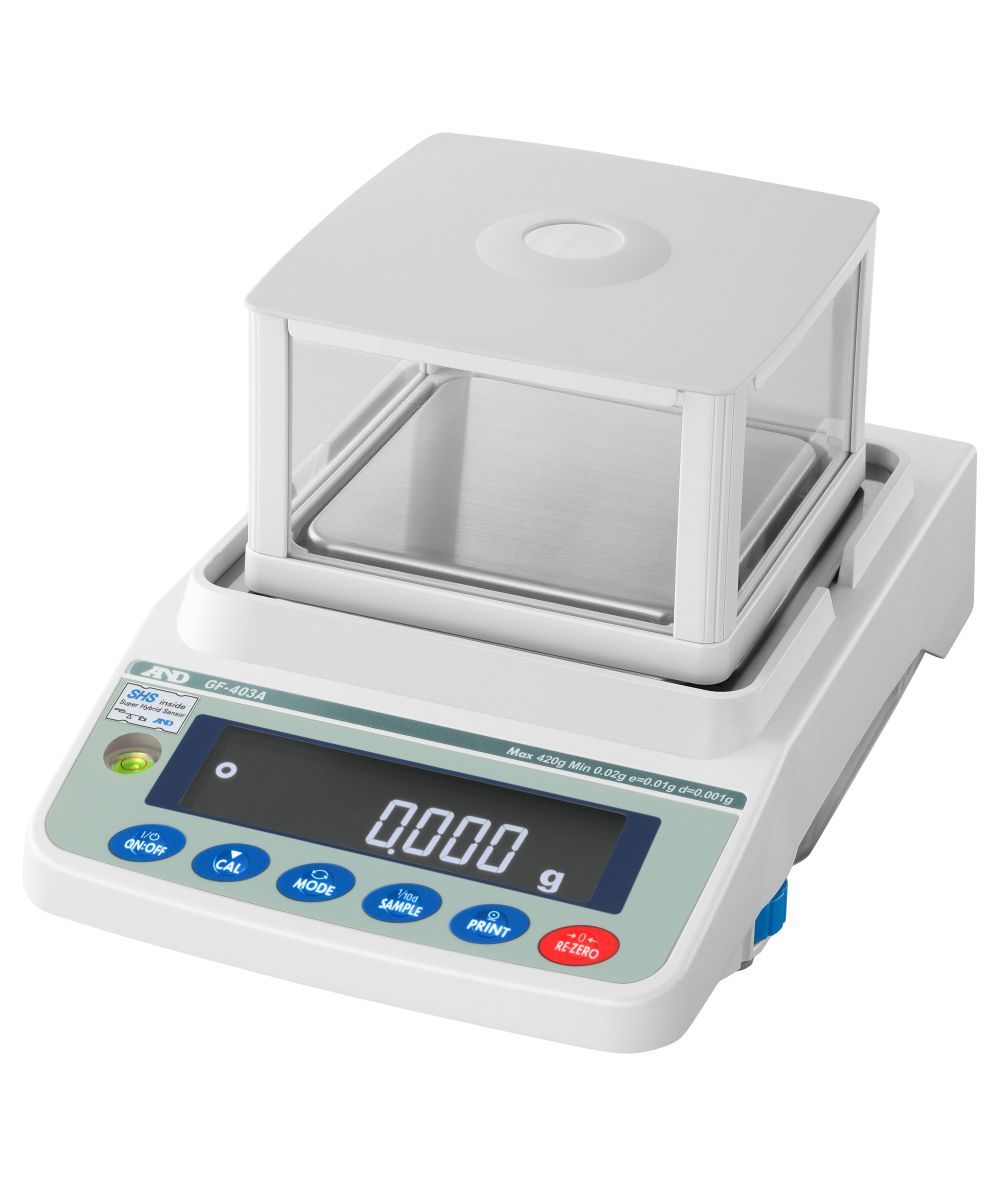

GF-403A 420g 0.001g 128 × 128mm
GF-1003A 1100g 0.001g 128 × 128mm
GF-1603A 1620g 0.001g 128 × 128mm
GF-1202A 1220g 0.01g 128 × 128mm
GF-2002A 2200g 0.01g 165 × 165mm
GF-3002A 3200g 0.01g 165 × 165mm
GF-4002A 4200g 0.01g 165 × 165mm
GF-6002A 6200g 0.01g 165 × 165mm
GF-10002A 10200g 0.01g 165 × 165mm
GF-6001A 6200g 0.1g 165 × 165mm
GF-10001A 10200g 0.1g 165 × 165mm


2nd RS-232C Interface GXA-03
Comparator Relay Output, Buzzer, External Input Interface GXA-04
Analog Output Interface GXA-06
Ethernet Interface FXi-08
Built-in Rechargeable Battery (Factory/Dealer Fit Option) GXA-09
GFX Large Glass Breeze Break GXA-10
Animal Weighing Pan (For Models of 320g Capacity or Higher) GXA-12
Density Determination Kit (For 1mg Models Only) GXA-13
Glass Breeze Break and Fanless Ionizer (Static Eliminator) GXA-17
Ext. Key Input Interface with AX-SW137-PRINT Foot Switch GXA-23-PRINT
Ext. Key Input Interface with AX-SW137-REZERO Foot Switch GXA-23-REZERO
External Key Input Interface with the AX-T-314A-S Plug GXA-23-PLUG
USB Host Interface (Factory-Installed/Dealer Option) GXA-24
External Fanless Ionizer (Static Eliminator) GXA-25
External IR Switch GXA-26
Foot Switch – Pre-wired for Print Function AX-SW137-PRINT
Foot Switch – Pre-wired for Re-Zero Function AX-SW137-RE-ZERO



Available Downloads


Click here for Apollo Series GX-A & GF-A Brochure


Click here for Apollo Series GX-A & GF-A Communication Manual
