Product Description

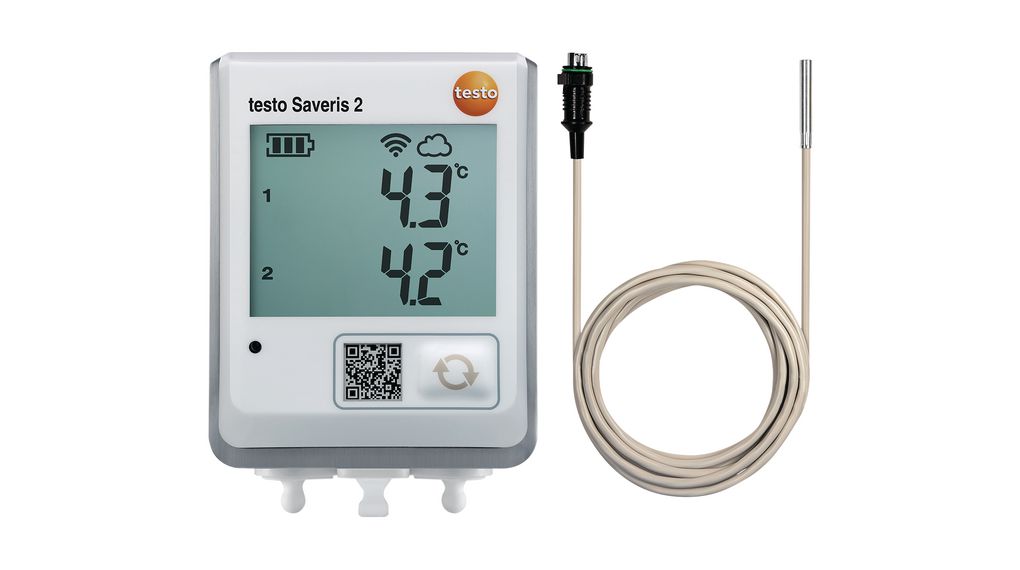

Temperature probe with aluminium sleeve (NTC)

  • NTC temperature probe with 2.4 m cable, can be installed at the measuring location for long-term measurements
  • Very precise temperature measurements
  • Watertight in accordance with protection class IP65

Temperature probe with aluminium sleeve for measurements in liquids, pastes and air.

Product Description


The temperature probe with aluminium sleeve and flat tip is suitable for measurements in liquids and pastes as well as for

air temperature measurements. Thanks to its NTC sensor element, the probe provides precise temperature measurements

with an accuracy of up to ±0.2 °C.

The temperature probe features a 2.4 m cable.

For long-term measurements, you can mount the temperature probe permanently at the measuring location. To do this you

only need a clamp or PG gland (not included in delivery).

The temperature probe is waterproof in accordance with protection class IP 65. Consequently, measurements can be

taken outdoors for example.

This probe`s response time t99 (time it takes for the probe to register 99% of the jump in temperature) of 190 seconds

refers to measurements in moving water at +60 °C. This response time is extended when, for example, measurements are

taken in still liquid, pastes or air.*

The perfect probe for any application

Don`t see the temperature probe you are looking for? Please contact us directly. We have a large range of standard

temperature probes and we also manufacture customized probes specifically according to your personal requirements.

*For air temperature measurements, the response time is about 40 – 60 times higher than the indicated value measured in

water. If you should require a rather sluggish temperature probe to measure air temperature, this probe is particularly

suitable because it does not take brief temperature peaks into account at all, or only to a very small degree, when

measuring temperature. For example, if you are planning to use this probe to measure air temperature in the refrigerator,

briefly opening the refrigerator door would not take into account the temperature fluctuation which results from mixing the

warm room temperature with the refrigerator temperature.

If you need an air temperature probe with a fast response time, your best choice would be the exceptionally fast

temperature probe 0602 0493 which has a large measuring range.

Delivery Scope

1 x NTC temperature probe 0628 7503, for the testo Saveris 2-T2 Wi-Fi data logger



Technical Data
Temperature – NTC
Measuring range -30 to +90 °C
Accuracy ±0.2 °C (0 to +70 °C)±0.5 °C (Remaining Range)
Reaction time  12 s
General technical data
Length probe shaft tip 40 mm
Product-/housing material Plastic
Protection class IP65
Fixed cable yes
Cable length 2.4 m
Diameter probe shaft 6 mm
Product colour Black; white; silver
