Product Description

MadgeTech ThermoVaultX Oven Temperature Data Logger

The MadgeTech ThermoVaultX high temperature data logger for oven monitoring features both a large memory and fast recording rate. Available with 4 or 8 thermocouple inputs.

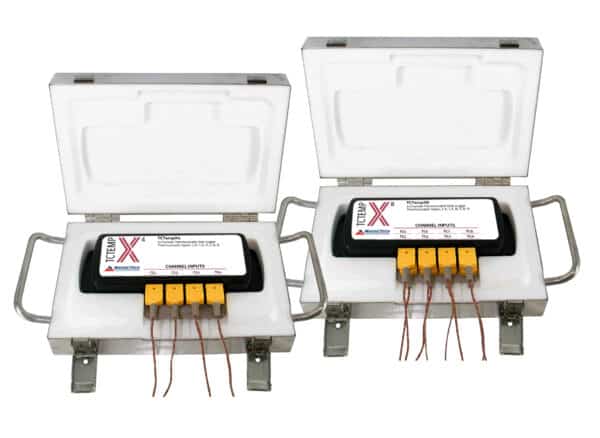

Available Channel Options –

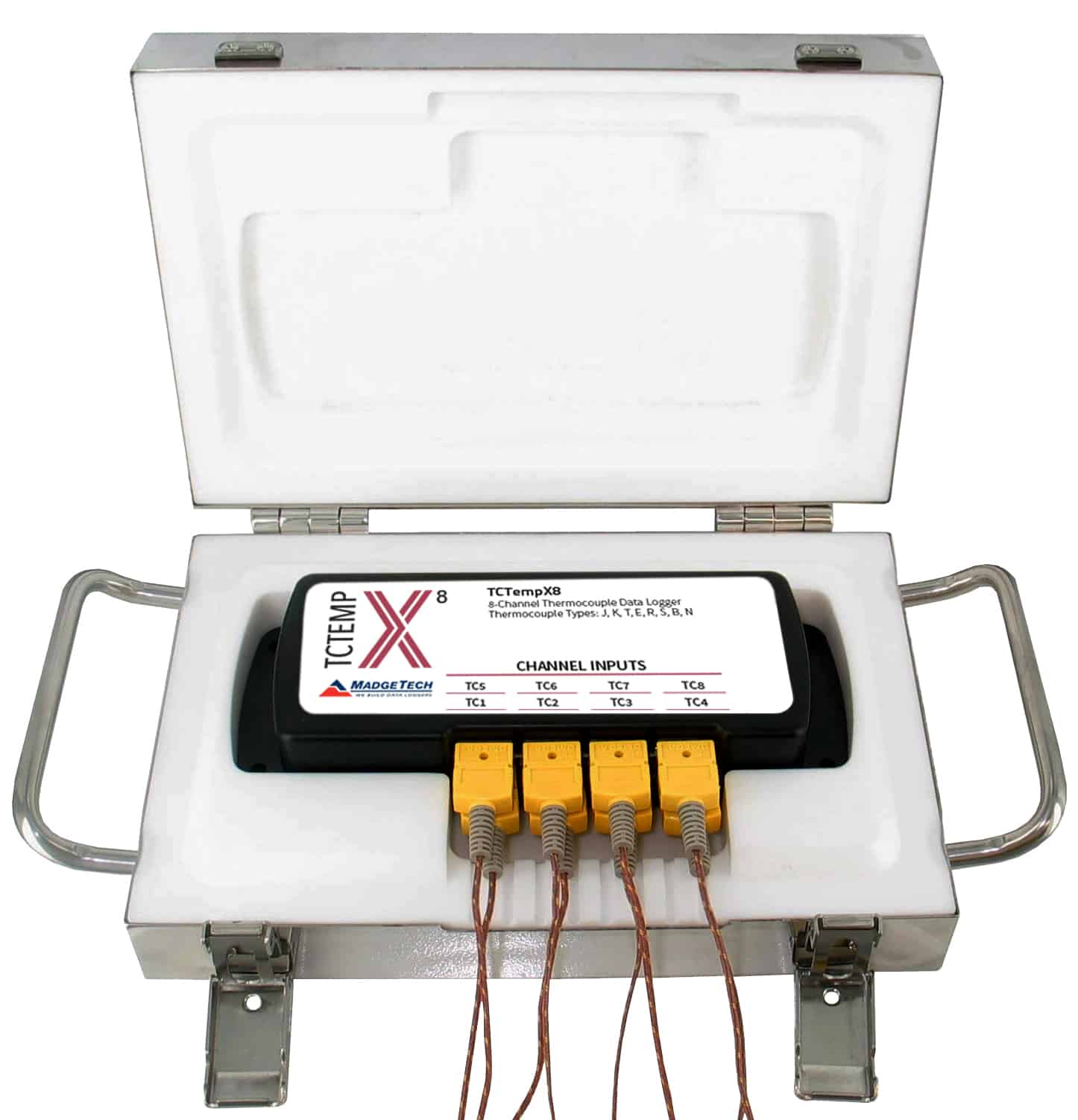

ThermoVaultX8 – 8 Channels

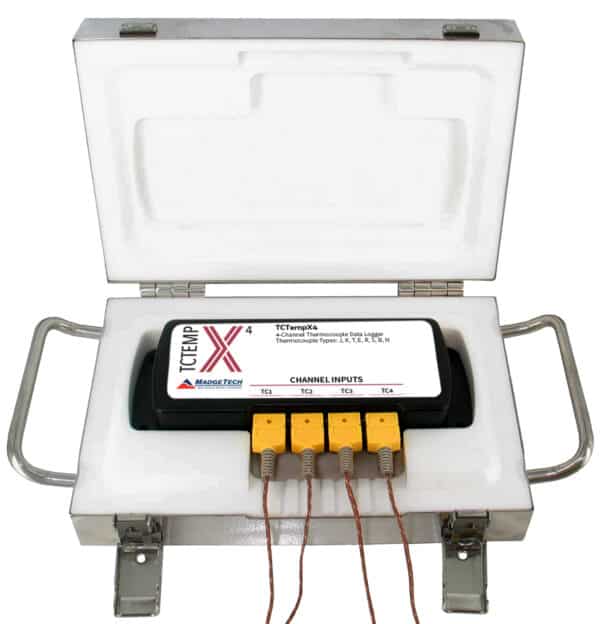

ThermoVaultX4 – 4 Channels

Product Description

The X MadgeTech ThermoVaultX temperature data logger has been specially designed to profile high temperatures within ovens. Robust and hard-wearing, this data logger can withstand extreme temperatures of up to 350°C for 25 minutes.

This temperature monitoring device is available with either 4 or 8 thermocouple inputs, making it incredibly versatile to suit your exact requirements. The thermocouple inputs are 72″ glass braided sensors of high quality, ideal for validating air temperatures within your facility. Whether you work in the food or medical industry, using a high temperature data logger can help you meet government compliance whilst ensuring you are distributing products that are completely safe.

Not only is this oven data logger powerfully built, it also has fantastic recording speeds of up to 4Hz with 2 million data points. This allows you to record a diverse scope of data quickly for convenience and practicality. It is also easy to connect to a computer device via direct micro USB connection, creating ease when it comes to reporting and analysis of your data. Before placing the temperature data logger within the thermal shield, you can pre-programme it to the settings you require.

Our easy to use MadgeTech MT4 software enables you to set a start time and recording interval prior to the data logging session. All channels can be presented in various formats and exported in your desired format for distribution. Optional secure software enables 21 CFR 11 compliance.

Our experts at Loggershop are more than happy to discuss your application with you, helping you to find the most appropriate solution. Our system calibration service is a great option for those who need further assistance setting up their temperature data logger to adhere to appropriate regulatory requirements.

The MadgeTech ThermoVaultX data logger is supplied with the following equipment:

    • Thermal barrier
    • 72 Glass braided sensors
    • USB cable
    • Calibration certificate (input only, please select the optional system calibration if sensors need to be calibrated with your data logger)
    • Compatible with MT4 software, which can be downloaded for free at Loggershop.


ThermoVaultX Technical Data

Manufacturer Madgetech
Parameter(s) Temperature
Usage Type Multi use
Connectivity USB-A to micro USB cable (included); 460,800 baud
Sensor internal or external External
Channels ThermoVaultX4 | PN 901350-00 | 4-Channel Thermocouple Data Logger
ThermoVaultX8 | PN 900437-00 | 8-Channel Thermocouple Data Logger
Sensor type Thermocouple
J, K, T, E, R, S, B, N
Memory 4-channel: 524,032 readings per channel
8-channel: 262,016 readings per channel
Sample rate 4 readings a second up to 1 reading every 24 hours
Oven Range 0°C ~ +350°C
Accuracy J ~ -210 to +760 ~ ±0.5 °C
K ~ -270 to +1370 ~ ±0.5 °C
T ~ -270 to +400 ~ ±0.5 °C
E ~ -270 to +980 ~ ±0.5 °C
R ~ -50 to +1760 ~ ±2.0 °C
S ~ -50 to +1760 ~ ±2.0 °C
B ~ +50 to +1820 ~ ±2.0 °C
N ~ -270 to +1300 ~ ±0.5 °C* Estimated accuracy, real accuracies established with system calibration
Resolution J ~ -210 to +760 ~ 0.1 °C
K ~ -270 to +1370 ~ 0.1 °C
T ~ -270 to +400 ~ 0.1 °C
E ~ -270 to +980 ~ 0.1 °C
R ~ -50 to +1760 ~0.5 °C
S ~-50 to +1760 ~ 0.5 °C
B ~ +50 to +1820 ~0.5 °C
N ~ -270 to +1300 ~ 0.1 °C
Material Anodized aluminium
Power Battery 9V lithium
Or mains supply via supplied power adaptor
Battery Life 18 months typical
Dimensions 723 mm x 168 mm x 62 mm Includes handles, brackets and front enclosure latches
Temperature vs time limits 100 ºC 110 minutes
150 ºC 62 minutes
200 ºC 45 minutes
250 ºC 35 minutes
260 ºC 33 minutes
300 ºC 30 minutes
350 ºC 25 minutes
Operating Conditions Dry
Alarm In software
Features Flexible and robust thermocouple data logger with cold junction compensation.
