Product Description

ETI RayTemp 38 infrared thermometer ideal for high temperature use

Product code: 814-038

RayTemp® 38 infrared non-contact thermometer for measuring small surface areas at greater distances

  • auto-power off & backlight functions
  • wide temperature range -59.9 to 999.9°C
  • robust housing for durability
  • target distance/diameter ratio of 50:1
  • RayTemp® 38 is sold excluding probe

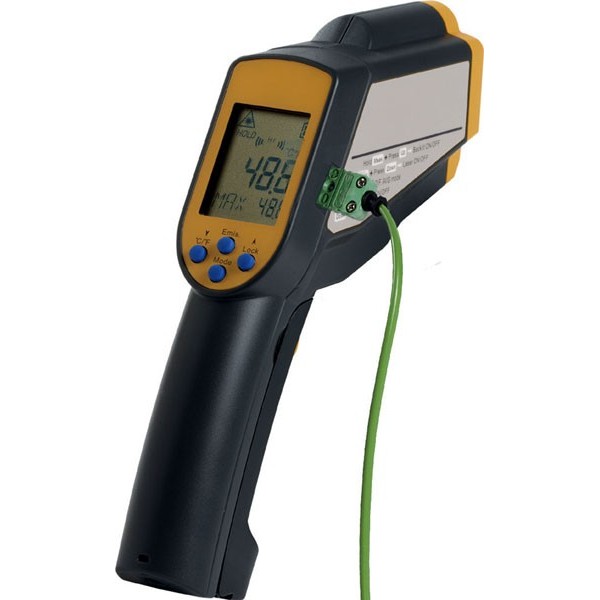

The RayTemp 38 Infrared Thermometer with probe socket is a professional IR thermometer thermometer featuring dual laser dot alignment.
The IR thermometer incorporates a 50:1 optic ratio (target distance/diameter ratio), this enables users to measure small targets from a distance.

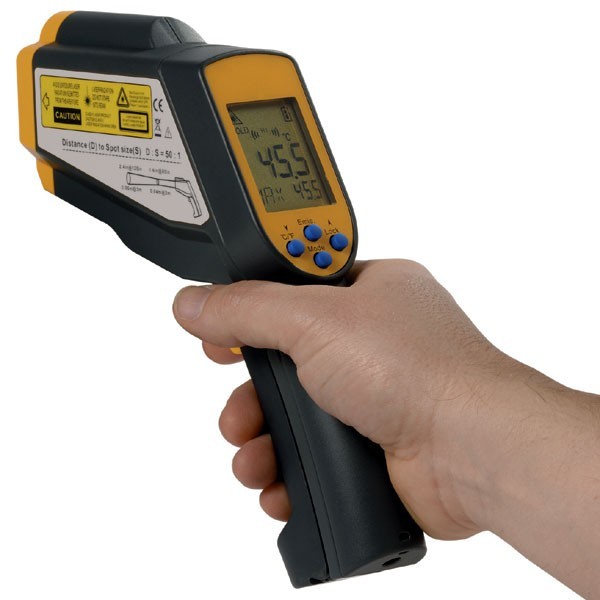

The user stands a safe and comfortable distance from the target, points the thermometer at the surface to be measured, presses the button and instantly reads the temperature.
Ideal for measuring the temperature of ceiling vents and hot pipes in the HVAC industry or any other item that is difficult to reach.
This enables the user to measure most surfaces accurately and quickly.

This RayTemp infrared thermometer measures the surface temperature over the range of -59.9 to 999.9°C with a 0.1°C (-9.9 to 199.9°C) or 1°C resolution.

The RayTemp 38 incorporates an auto power off facility that turns the instrument off after 60 seconds, maximising battery life.

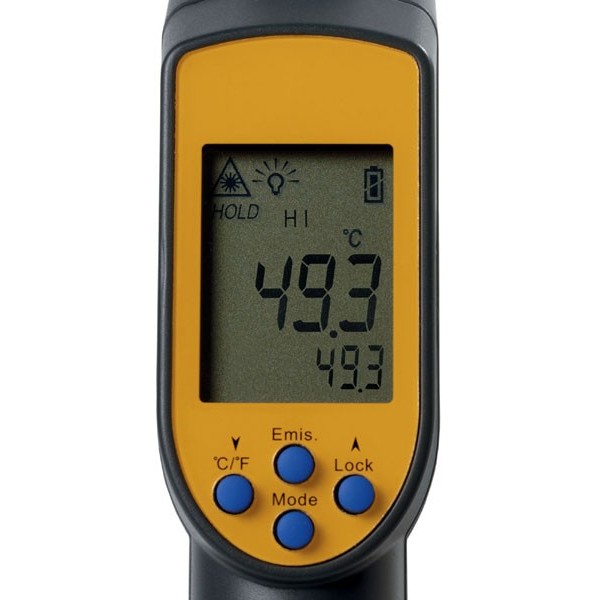

This function can be disabled, if required. Each unit incorporates a clear, easy to read, backlit custom LCD display that indicates both the temperature and the emissivity.
The thermometer features a four-button keypad, allowing the user to select the mode required, i.e. max, min, differential and average temperatures, view the max/min high and low alarms and adjust the emissivity from 0.1 to 1.0 in 0.01 increments (default set at 0.95).

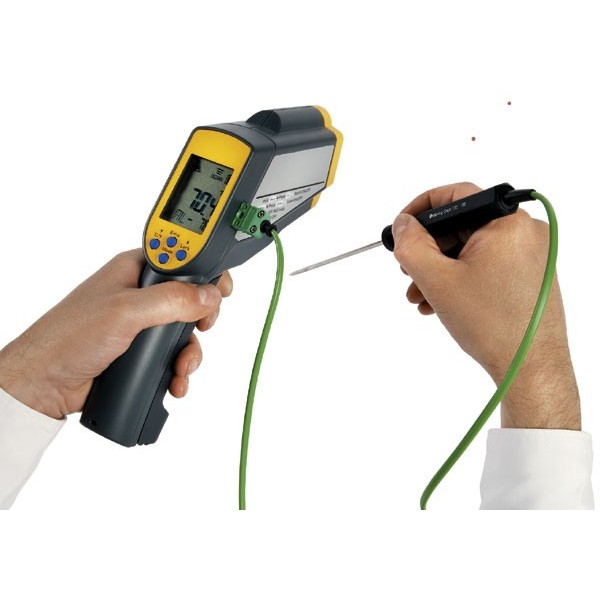

The RayTemp 38 is two instruments in one as it incorporates a thermocouple socket that will accept a type K thermocouple probe, click here for available probes.
Each RayTemp 38 is supplied in a FREE protective ABS carrying case. An optional strong magnetic holder is also available.
The holder screws into the bottom of the thermometer’s housing, allowing the unit to be mounted onto a metal surface for continuous monitoring.

Technical Data
Specification RayTemp 38 Infrared Thermometer
Range -59.9 to 999.9°C
Resolution 0.1°C or °F (-9.9 to 199.9°C) or 1°C
Infrared Accuracy ±2% of reading or 2°C or ±2°C
Probe accuracy ±1% of reading or ±1°C whichever is greater
Field of view target ratio 50:1
Emissivity 0.95 default, 0.1 to 1.0 adjustable in 0.01 increments
Battery Type 2 x 1.5 volt AAA
Battery Life 180 hours continuous use
Display custom LCD
Dimensions 47 x 197 x 203mm
Weight 386 grams
