Product Description

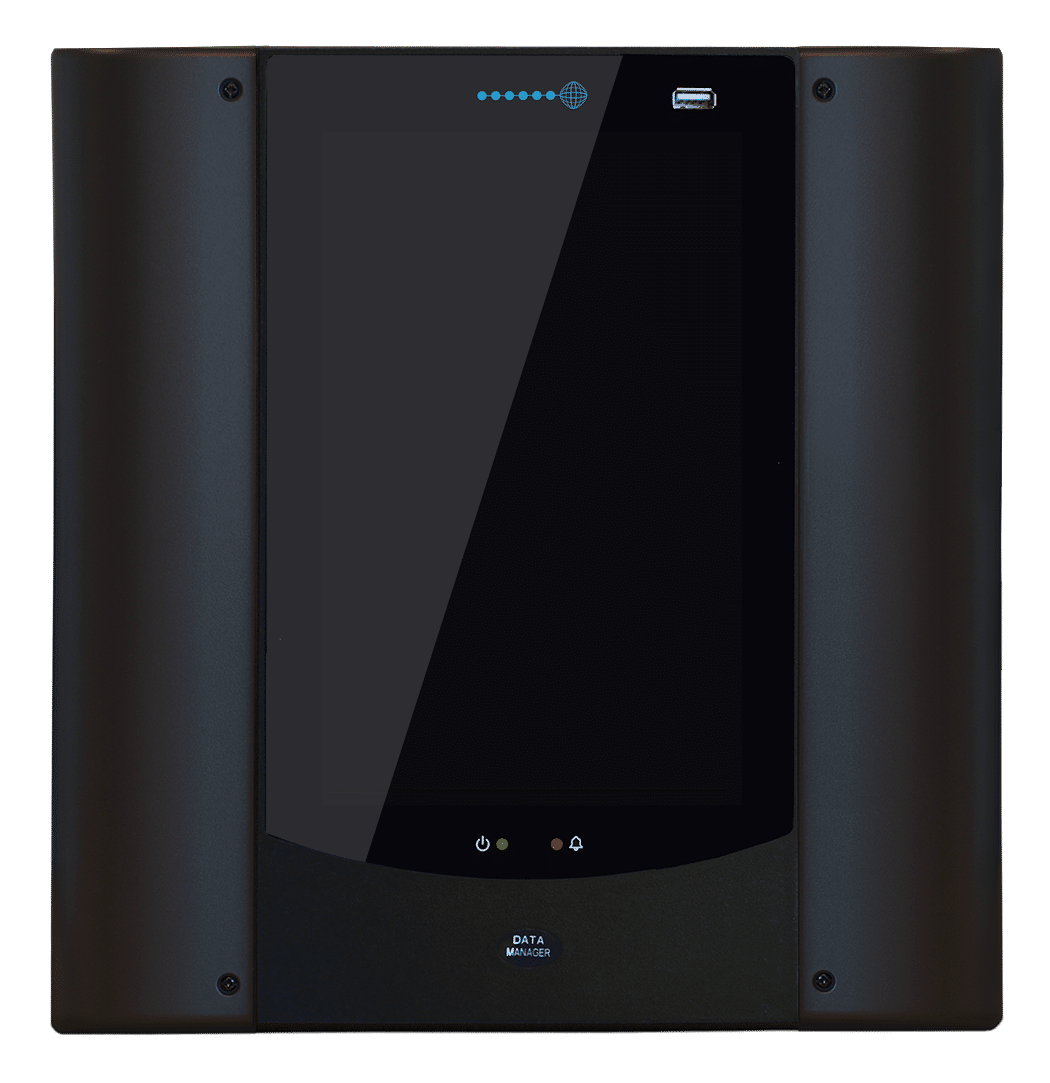

Future proof control and remote monitoring system front-end.

DMTouch provides the ultimate gateway to interface with a number of standard and proprietary HVACR (heating, ventilation, air conditioning and refrigeration) devices. Unlike competing products, the DMTouch is based on an open protocol platform and will communicate with both open (e.g. CAT 5 Ethernet IP) and, after appropriate activation, proprietary protocols (e.g. BACnet and Modbus®).

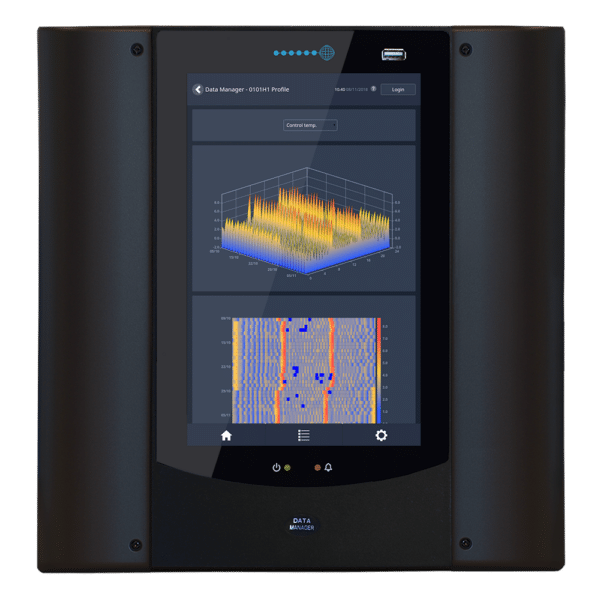

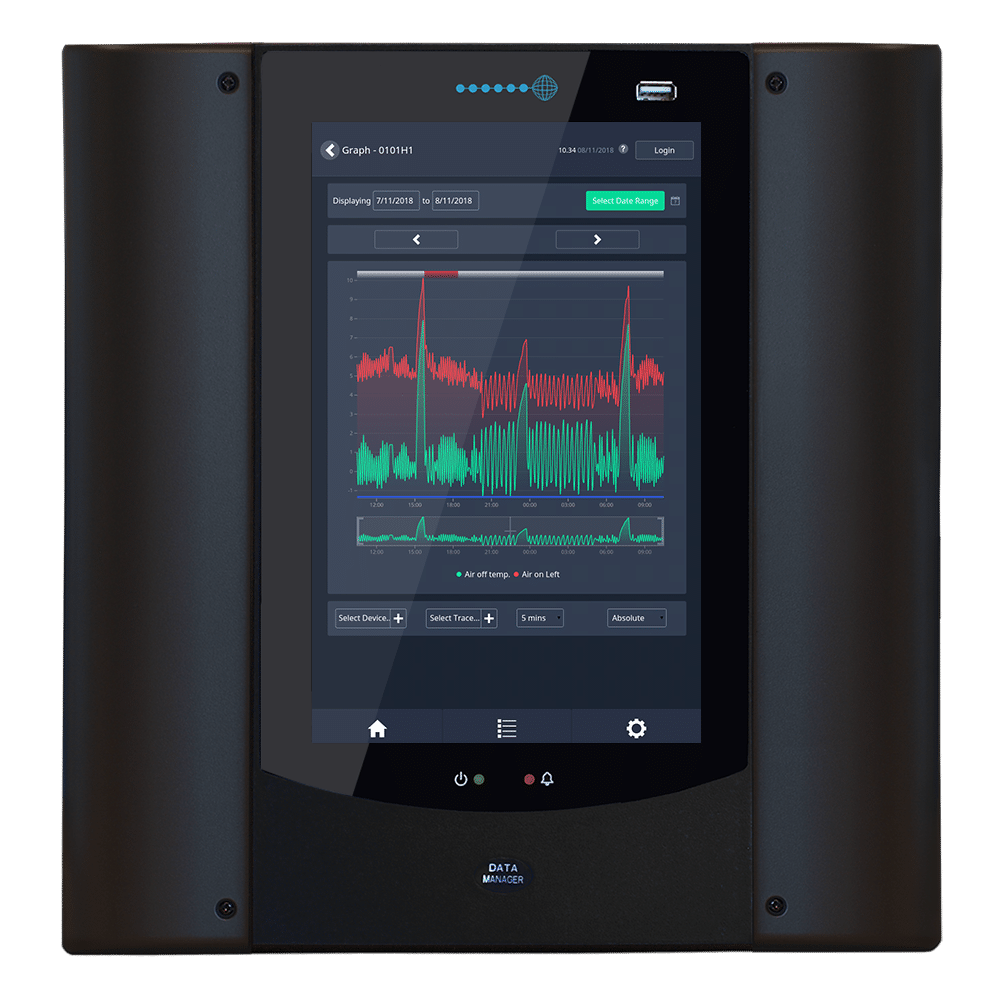

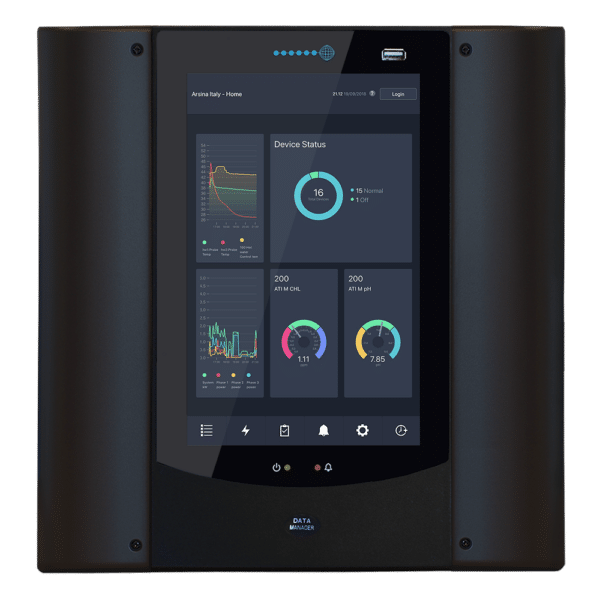

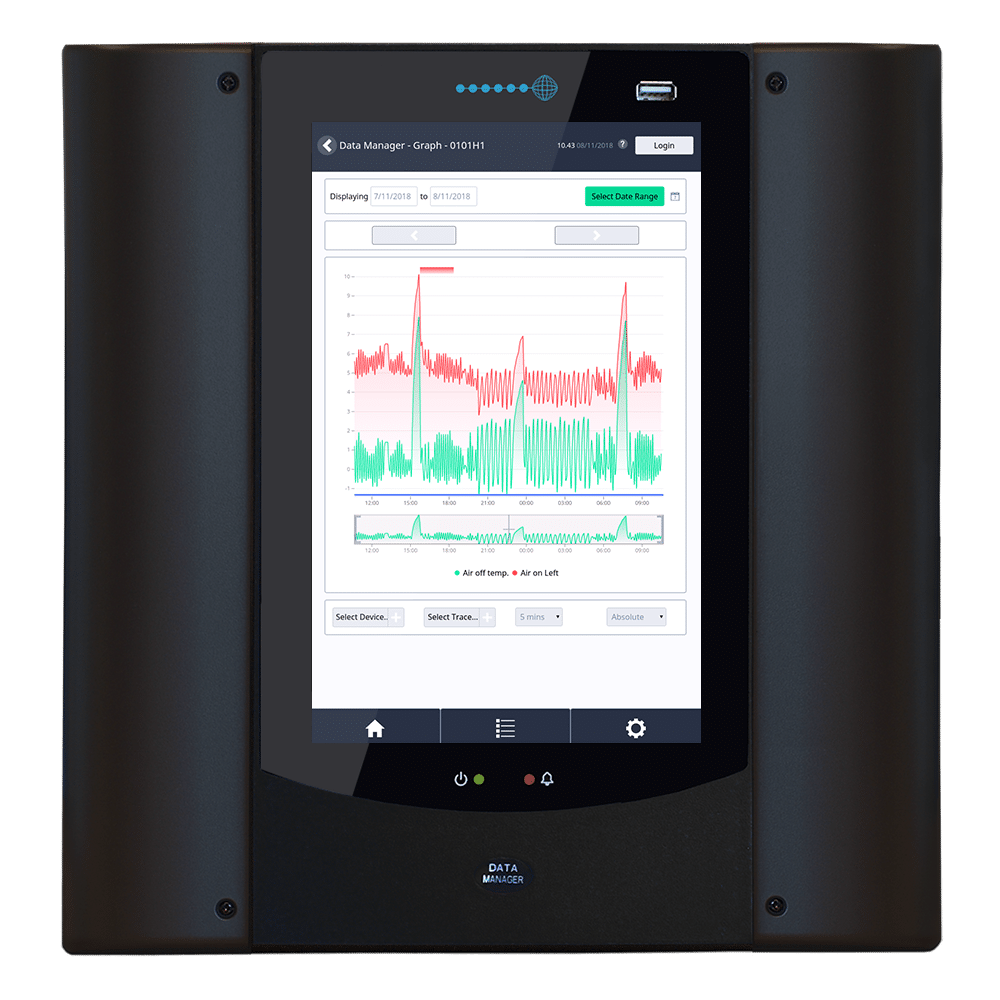

With a 10.1” high definition touch screen, DMTouch processes your data into easily interpreted and actionable insights in real time. Detailed information is presented in a visually stimulating format and, as it€™s quick to read, it allows you to extract the information you need to make informed decisions about your business at a glance.

Connectivity
5 x USB Ports
4 x Ethernet Ports
1 x RS485 port for Genus compatible devices

Inputs
12 x Inputs individually configurable as analogue temperature inputs or digital inputs (volt free).

Outputs
4 x configurable relay outputs for control or alarm signalling.

Expansions
The I/O board provides the expansion ports which allow the dmTouch to be easily networked for remote monitoring or allow the user to add a variety of sup-port equipment and local networkable devices.

Power
Supply voltage range: 100 – 240 Vac ±10%
Supply frequency: 50 – 60 Hz
Maximum supply current: 1 Amp
Typical supply current: <1 Amp Voltage fluctuations not to exceed ±10° of nominal voltage
