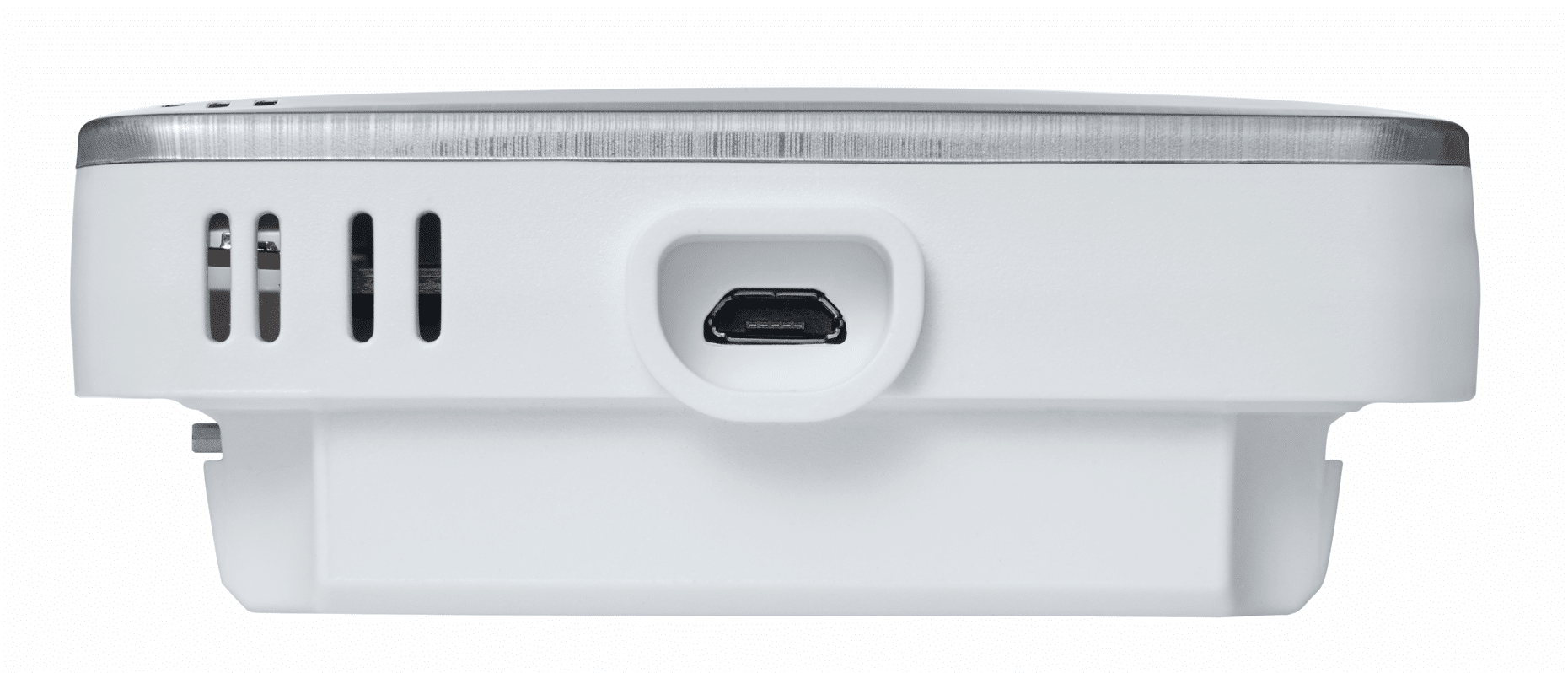

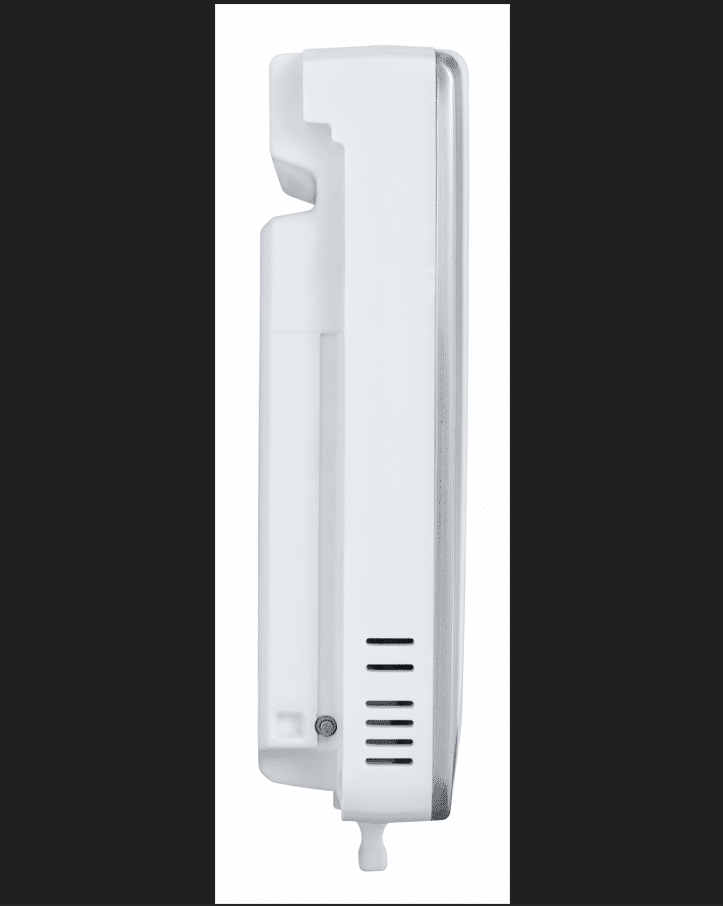

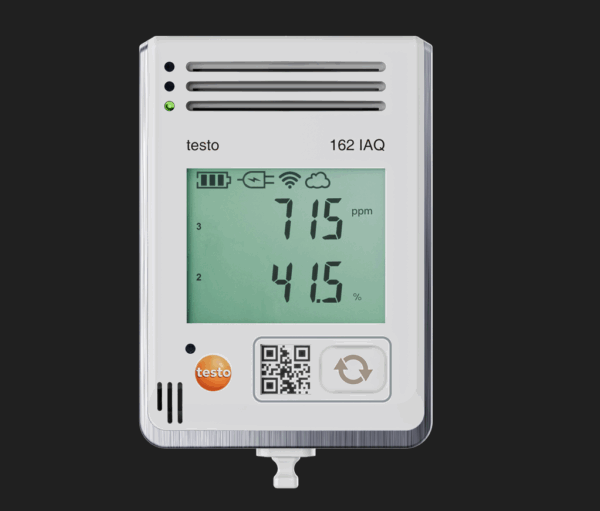

testo 162 IAQ - Online data logger with display and integrated sensors

testo 162 IAQ – Online data logger with display and integrated sensors for temperature, humidity, CO2 and atmospheric pressure

Part code: 0572 1626

Your benefits

Limit value violation alarms by push notification, e-mail or (optionally) SMS

Automated monitoring of temperature, humidity, CO2 and atmospheric pressure with integrated sensor

Connection to the testo Smart App:
Simple commissioning, push alarms and dashboard

Automatic measurement value documentation in testo Saveris (Cloud)

Data transfer by wireless LAN

Visual inspection on site thanks to large display

The testo 162 IAQ online data logger is an easy-to-use climate logger with display for monitoring temperature, humidity, CO2 and atmospheric pressure with an integrated sensor. The testo 162 online data loggers are part of the testo 160 online data logger system consisting of the hardware components (testo 160, testo 162, testo 164) as well as the testo Saveris Cloud and testo Smart App. The testo Saveris Cloud is the central data platform. Measured values can be viewed and analysed there.

The Testo Data Monitoring license is required to use the system.

	Humidity – Capacitive
Measuring range	0 to 100 %RH (non-condensing)
Accuracy	±3 %RH (at 25 °C and < 20 %RH and > 80 %RH) ±1 %rF/year Drift ±1 %rF Hysterese ±2 %RH (20 to 80 %RH at 25 °C)
Resolution	0.1 %RH
	Absolute Pressure
Measuring Range	600 to 1100 mbar
Accuracy	±3 mbar at +22 °C
Resolution	1 mbar
	Ambient CO2
Measuring rate	0 to 5000 ppm
Accuracy	± (100 ppm + 3 % of mv) at + 25 °C (with battery operation) ± (50 ppm + 3 % of mv) at + 25 °C
Resolution	1 ppm
	Temperature
Memory	0 to +50 °C
Accuracy	±0.5 °C
Resolution	0.1 °C
	General technical data
Weight	240g
Dimensions	117 x 82 x 32.0 mm
Operating temperature	-30 to +50 °C
Protection class	IP20
Measuring rate	1 min to 24 h (with continuous power supply); 5min… 24h (bei Batteriebetrieb)
Communication rate	1 min to 24 h (with continuous power supply); 5min… 24h (bei Batteriebetrieb
WLAN Connectivity	supported wireless LAN standards: IEEE 802.11 b/g/n; Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP
Battery life	1 year
Memory	32,000 Measuring values / Sum of all channels
Storage temperature	-20 to +50 °C
