Product Description

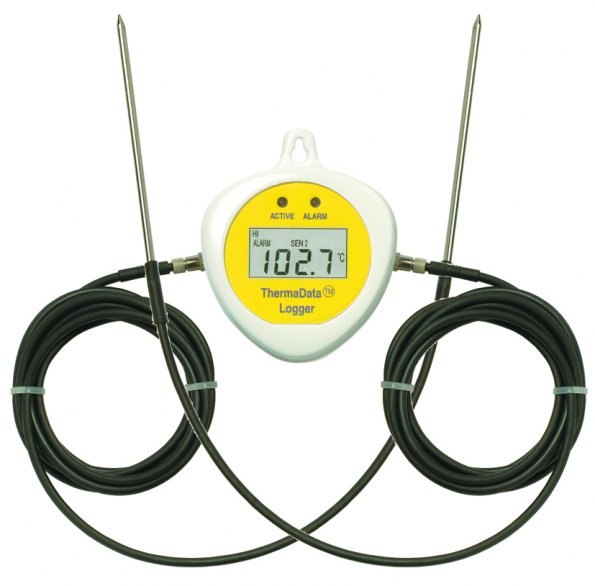

ThermaData logger TD2C data logger with LCD and twin external sensors

Product code: 296-551


  • LCD display with 2 external sensorswithconnectors
  • IP67 waterproof case
  • Temperature range -40 to 125°C

The ThermaData logger TD2C has a clear, easy to read LCD display and incorporates two external NTC thermistor sensors with two one metre PUR/PVC leads and probe connectors that measure over the range of -40 to 125 °C and can record up to 2 x 2000 readings.

The ThermaData logger TD2C data logger is housed in a waterproof, ergonomic case that is designed to meet IP66/67 protection.

The ThermaData logger Mk ll range offers the customer the choice of either blind data-loggers or data-loggers with a LCD display. Other options include internal and external temperature sensor/probe.
The external probes can be either fixed or detachable via a waterproof three-pin connector.
The remote temperature probes are supplied with a one metre PVC/PVA lead.

Each logger incorporates a red and green LED, the flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that your customised pre-set alarms have been exceeded.
Communications are via a USB cradle that is supplied with the ThermaData Software.

Please note: when ordering loggers it is necessary to order at least one ThermaData logger cradle.

Technical Data
Specification ThermaData logger TD2C
Measurement Range -40 to 125°C
Resolution 0.1°C
Accuracy ±0.5°C
Memory 2 X 2000 readings
Sample rate 0.1 to 255 minutes
Battery Type 3.6 volt half AA lithium
Battery Life 18 months
Display 2 LEDs & 10mm LCD
Dimensions 76 x 23mm
Weight 113 grams
