£482.00 £578.40 (Inc. VAT)

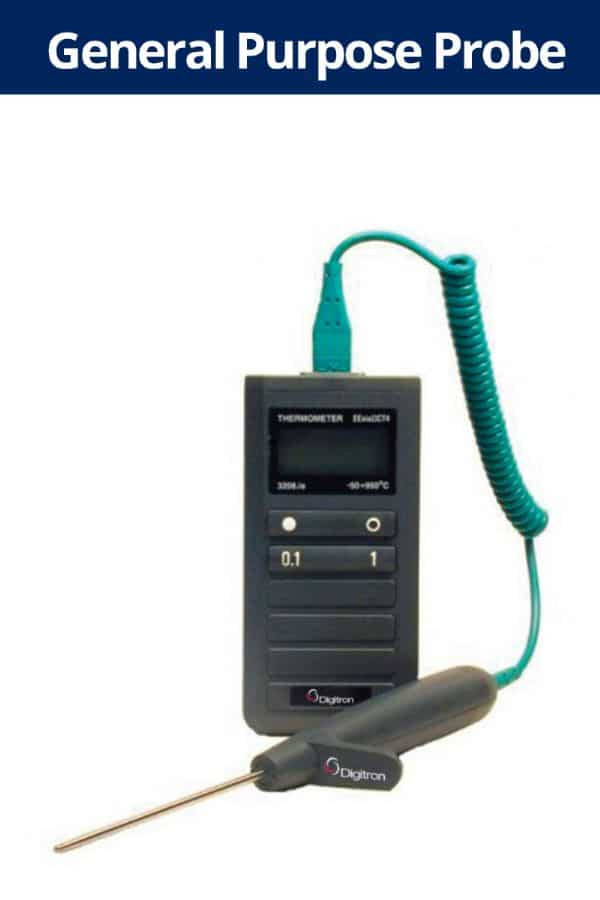

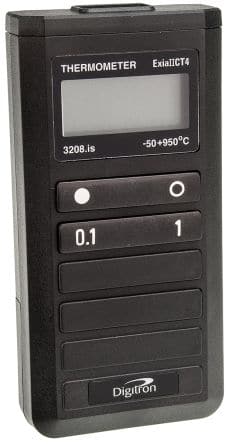

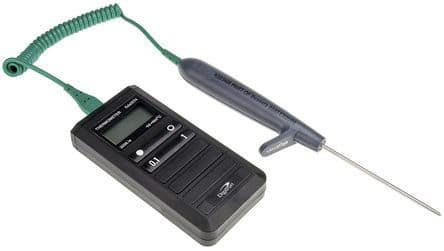

3208 IS Intrinsically Safe Thermometer including

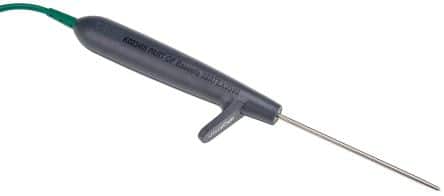

General Purpose Probe KO234IS supplied with 5 Point UKAS Calibration Certificate at -18.0c, 0.0c, +40.0c, +70.0c, +100.0c
The 3208 IS Digital Thermometer represents the best in temperature measurement technology for use in dangerous environemnts.
General Overview
Intrinsically safe instruments are certified for use in flammable or explosive atmospheres.
Their tough construction makes them extremely durable and therefore functional, not only in hazardous atmospheres but also hostile working environments.
EX – WHERE SAFETY IS CRITICAL
Certified by BASEEFA, the UK’s leading Intrinsic Safety approvals house, the units are classified as EEx ia IIC T4.
€¢BS EN 61000-6-3:2007+A1:2011 Generic emissions standard
€¢BS EN 61000-6-1:2007 Generic immunity standard
€¢BS EN 60079-0:2012+A11:2013 Electrical apparatus for potentially explosive atmospheres – Intrinsic Safety ‘i’
€¢BS EN 60079-11:2012 Explosive atmospheres. Equipment protection by intrinsic safety
The unit is ready for site use anywhere, immediately.
In common with other Digitron hand-held instruments, the 3208 IS is cased to last.
Key Features
Please click here to see protective sleeve.
Technical Data | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specification | 3208 IS Thermometer | ||||||||||||||||||||||
Sensor Type | K Type Thermocouple | ||||||||||||||||||||||
Ambient Operating Temperature | -20 to +50°C | ||||||||||||||||||||||
Resolution | 0.1°C or 1°C | ||||||||||||||||||||||
Accuracy | 0.1°C resolution: 0.2% reading + 0.5°C (-50°C to +199.9°C) 1°C resolution: 0.2% reading + 1° C (-50°C to +950°C) |
||||||||||||||||||||||
Temperature range | Low -50°C to +199.9°C / High -50°C to +950°C |
||||||||||||||||||||||
Battery Type | 9V PP3 Style zinc chloride IEC style 6F22 (Type PP3S or equivalent) | ||||||||||||||||||||||
Battery Life | 100 hours typical | ||||||||||||||||||||||
Low Battery Check | BAT shows on display€™ | ||||||||||||||||||||||
Environmental Specification | BS5490:IP64 standard | ||||||||||||||||||||||
Display | 12.7mm/0.5 custom LCD with automatic legend display | ||||||||||||||||||||||
Dimensions | 140 x 70 x 26mm | ||||||||||||||||||||||
Weight | 250 grams |
